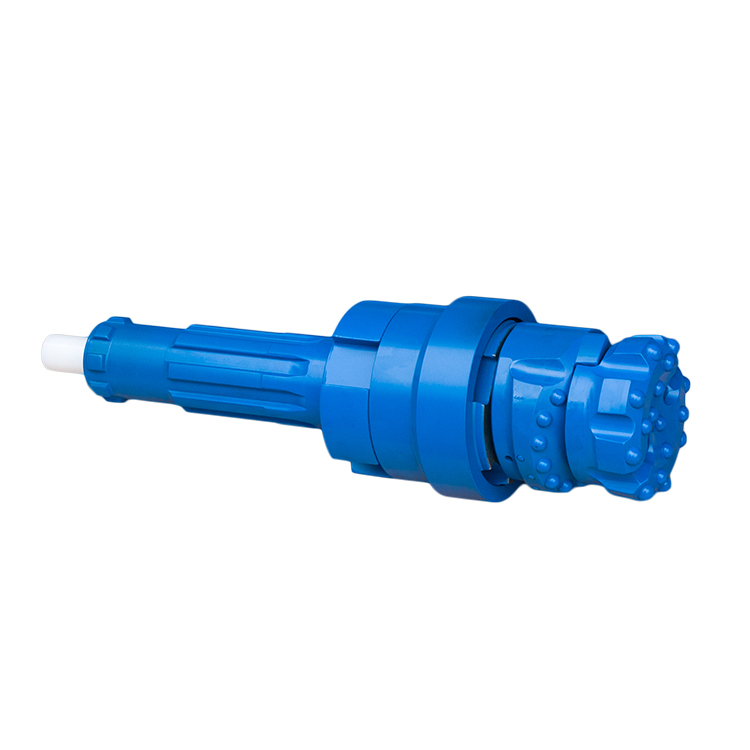

DTH Hammer Drilling Eccentric Casing System with Pilot Bit and Reamer Bit

Reamer Bit. Down The Hole Drilling Tools - DTH Eccentric Overburden Casing Odex System for DHD340/350/360/380

Quantity:
  • 118-358mm Odex Eccentric Drilling Casing System
  • BESTLINK

DTH Hammer Drilling Eccentric Casing System with Pilot Bit and Reamer Bit


We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, top hammer button bits, coupling, cross bits, drill rods, located in Xiamen,Fujian,China.


Product specifications: Eccentric/odex Casing overburden Drilling System

DTH Eccentric Overburden Casing Odex System for DHD340/350/360/380



Type

Casing Tube

OD(mm)

Casing Tube

ID(mm)

Casing wall

thickness(mm)

Guide Device

max size(mm)

Reamed

Dia (mm)

Casing shoe

mini Dia(mm)

Pilot bit D (mm)

Hammer type

ODEX85

108

94

7

92

117

86

85

COP34/DHD3.5

ODEX90

114

101

6.5

99

125

92

90

COP34/DHD3.5

ODEX98

127

109

9

107

138

100

98

COP34/DHD3.5

ODEX115

146

126

10

123.5

155

117

115

COP44/DHD340/SD4/QL40

ODEX140

168

148

10

146

180

138

136

COP54/DHD350/SD5/QL50

ODEX145

178

158

10

156

192

147

145

COP54/DHD350/SD5/QL50

ODEX152

183

163

10

161

196

153

151

COP54/DHD350/SD5/QL50

COP64/DHD360/SD6/QL60

ODEX165

194

174

10

172

206

162

160

COP64/DHD360/SD6/QL60

ODEX190

219

199

10

196

234

187

185

COP64/DHD360/SD6/QL60

ODEX208

245

225

10

222

263

210

208

COP84/DHD380/SD8/QL80

ODEX240

273

253

10

251

305

241

240

COP84/DHD380/SD8/QL80

ODEX280

325

300

12.5

298

350

282

280

DHD112/DHD380



ODEX/Eccentric equipment enables you to drill and case deep holes simultaneouslyin all types of formation, even those with large boulders.

The method is based on a pilot bit and eccentric reamer, which together drill a hole slightly larger than the external diameter of the casing tube. This enables the casing tube to follow the drill bit down the hole.

When using ODEX, part of the impact energy is diverted to the casing tube via a shoulder on the guide device, which in turn impacts a special casing shoe at the lower end of the casing.


Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping.

Production time:
within 15-25 days after receiving the advance payment or full payment

Transportation:
according to your requests.

Package:
The material of packing is ply-wooden cases and pallet to avoid the damagement  in transportation.


Bestlink Factory

Xiamen Bestlink Factory Co., Ltd  is  committed  to  provide  the  best  drilling  and  cutting machine,  tools and accessories products in marble and granite stone quarrying,  as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite  and ornamental stones in china.
