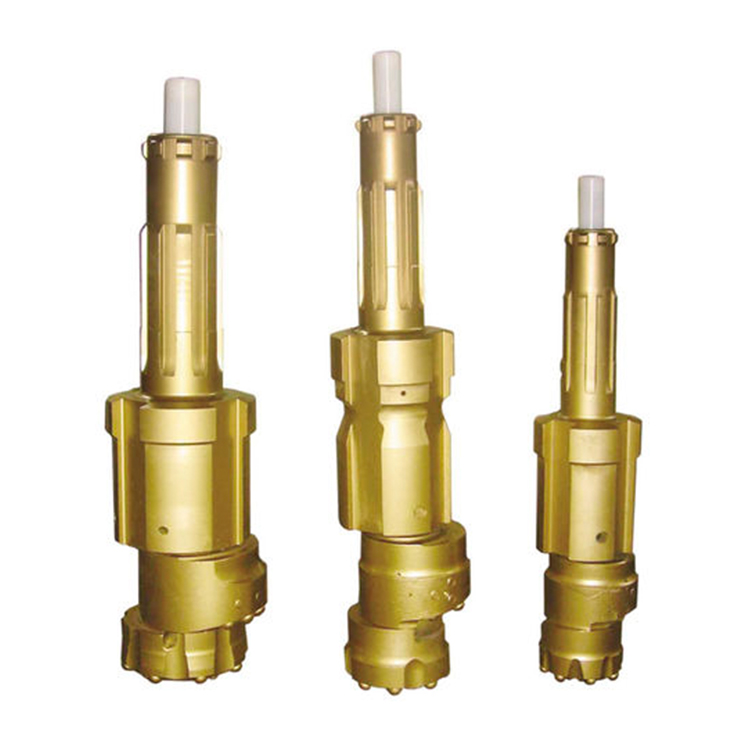

Eccentric/odex Casing overburden Drilling System
BESTLINK
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, top hammer button bits, coupling, cross bits, drill rods, located in Xiamen,Fujian,China.
Product specifications: Eccentric/odex Casing overburden Drilling System
Type | Casing Tube OD(mm) | Casing Tube ID(mm) | Casing wall thickness(mm) | Guide Device max size(mm) | Reamed Dia (mm) | Casing shoe mini Dia(mm) | Pilot bit D (mm) | Hammer type |
ODEX85 | 108 | 94 | 7 | 92 | 117 | 86 | 85 | COP34/DHD3.5 |
ODEX90 | 114 | 101 | 6.5 | 99 | 125 | 92 | 90 | COP34/DHD3.5 |
ODEX98 | 127 | 109 | 9 | 107 | 138 | 100 | 98 | COP34/DHD3.5 |
ODEX115 | 146 | 126 | 10 | 123.5 | 155 | 117 | 115 | COP44/DHD340/SD4/QL40 |
ODEX140 | 168 | 148 | 10 | 146 | 180 | 138 | 136 | COP54/DHD350/SD5/QL50 |
ODEX145 | 178 | 158 | 10 | 156 | 192 | 147 | 145 | COP54/DHD350/SD5/QL50 |
ODEX152 | 183 | 163 | 10 | 161 | 196 | 153 | 151 | COP54/DHD350/SD5/QL50 COP64/DHD360/SD6/QL60 |
ODEX165 | 194 | 174 | 10 | 172 | 206 | 162 | 160 | COP64/DHD360/SD6/QL60 |
ODEX190 | 219 | 199 | 10 | 196 | 234 | 187 | 185 | COP64/DHD360/SD6/QL60 |
ODEX208 | 245 | 225 | 10 | 222 | 263 | 210 | 208 | COP84/DHD380/SD8/QL80 |
ODEX240 | 273 | 253 | 10 | 251 | 305 | 241 | 240 | COP84/DHD380/SD8/QL80 |
ODEX280 | 325 | 300 | 12.5 | 298 | 350 | 282 | 280 | DHD112/DHD380 |
ODEX/Eccentric equipment enables you to drill and case deep holes simultaneouslyin all types of formation, even those with large boulders.
The method is based on a pilot bit and eccentric reamer, which together drill a hole slightly larger than the external diameter of the casing tube. This enables the casing tube to follow the drill bit down the hole.
When using ODEX, part of the impact energy is diverted to the casing tube via a shoulder on the guide device, which in turn impacts a special casing shoe at the lower end of the casing.
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping.
Production time:
within 15-25 days after receiving the advance payment or full payment
Transportation:
according to your requests.
Package:
The material of packing is ply-wooden cases and pallet to avoid the damagement in transportation.
