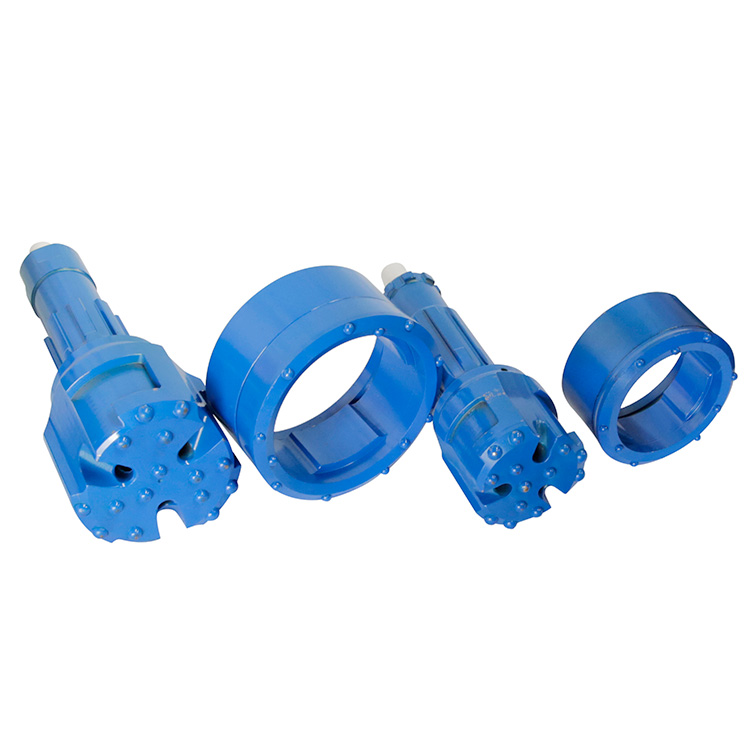

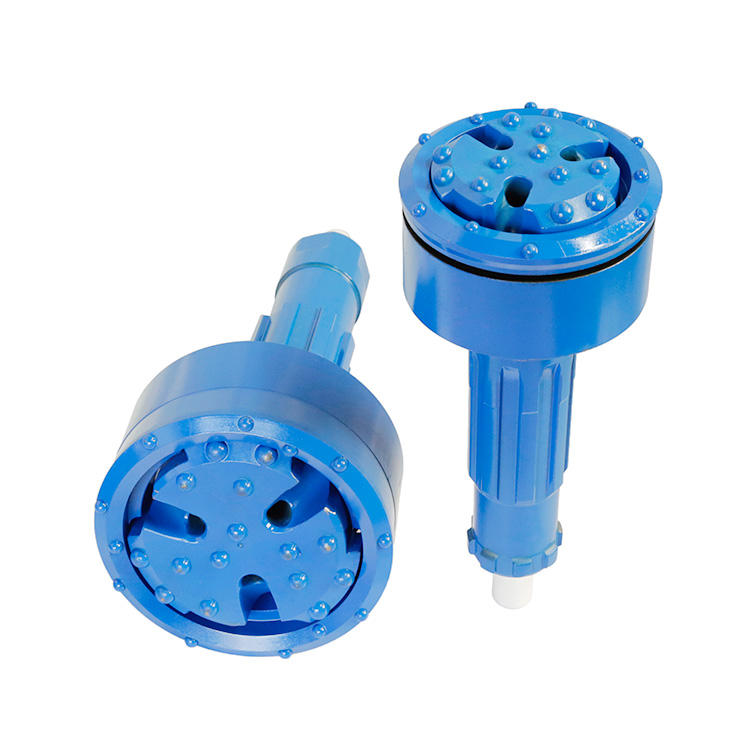

Concentric/Symmetric Casing overburden Drilling System with Ring Bit

Concentric/Symmetric Casing overburden Drilling System with Ring Bit

Quantity:
  • Symmetric overburnden drilling system
  • BESTLINK

Concentric/Symmetric Casing overburden Drilling System with Ring Bit

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, top hammer button bits, coupling, cross bits, drill rods located in Xiamen,Fujian,China.




Symmetric Casing.jpg



Outer Dia. of
Casing Tube
Inner Dia. of
Casing Tube
Reamed Dia.  Min. Inner Dia. of
Casing Shoe
 Drill Pipes Max. Outer Dia. of
Normal Bit
mm Mm mm mm mm mm
108 93-99 118 86 76 77
114 101-103 127 91 76 82
127 114-116 136 101 76 92
140 124-127 152 117 76 105
146 127-132 154 117 76 105
168 149-155 184 140 76,89 125
178 159-165 194 150 76,89 140
193 173-180 206 164 89,114 150
219 199-206 234 184 89,114 165
244 224-231 260 210 114 190
273 251-257 305 240 114,127 220
323 301-310 348 284 127 255
406 382-388 440 364 140 340
457 433-439 488 413 140 385
508 484-490 538 464 140 440



 symmetric systems 2Casing System (1).jpgCasing System (2).jpg

Symmetric Overburden Casing System 5
