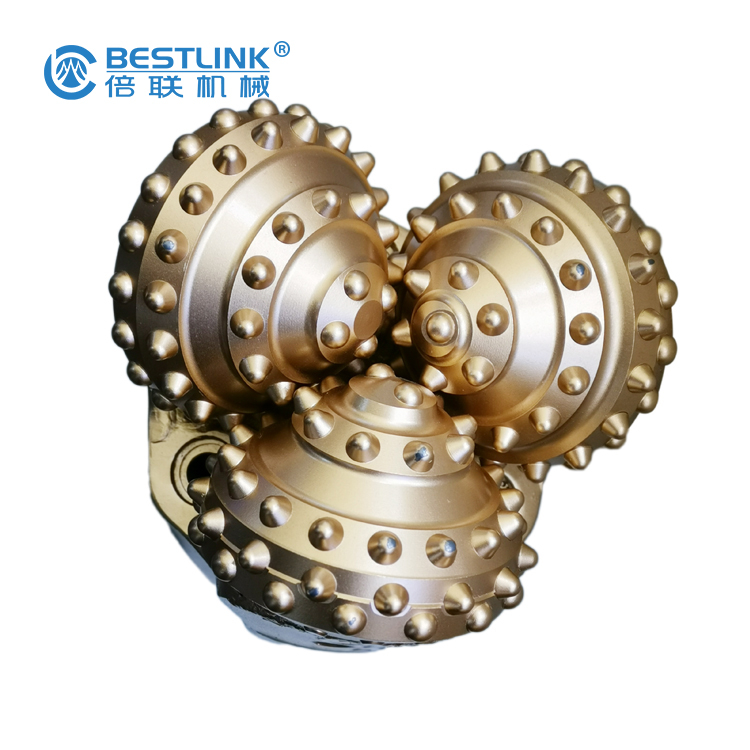

16'' Three Cone Button Tricone Drill Bit For Borehole Water Well Drilling

16'' Three Cone Button Tricone Drill Bit For Borehole Water Well Drilling
(1) Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.

Quantity:
  • 12 1/4 Inch TCI Insert Teeth Tricone Bit for Well/Stone Drilling
  • BESTLINK

16'' Three Cone Button Tricone Drill Bit For Borehole Water Well Drilling

16" IADC637 TCI Tricone Bit, which some may also call roller cone bits or tri-cone bits, have three cones. Each cone can be rotated individually when the drill string rotates the body of the bit. The cones have roller bearings fitted at the time of assembly. The rolling cutting bits can be used to drill any formations if the proper cutter, bearing, and nozzle are selected.


We are a professional company in supplying tricone bits,steel teeth bits,single cone bits,and PDC bits.


Bits sizes range from 3 7/8” to 26”.and cover almost all IADC codes.It can be used in various of different fields,mining,hydrology,subterranean heatpilling,water well drilling and oil well drilling.This type of bits have optimal bearing design, it can be working stably in high WOB,and the qualtiy tungsten carbide inserts on cone and the gauge make a good wear resistance largely extend the working life of bits.It is suitable for medium  to hard formation.



Available sizes

From 2 7/8 to 26”

larger sizes for hole opener bit ,reamer bit

Advantagemost favourable price and best qualtity
Bearing type

sealed bearing and non-sealed bearing

HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing)

aircooled bearing type

Formationsoft ,medium soft ,hard,medium hard,very hard formation
Button size (extra features)

Button bit,saw teeth

1)Y-Conical teeth

2)X-chisel teeth

3)K- wide teeth

4)G- Gague protection

Application

petroleum&gas ,water well ,mining and tectonic industries

,oil field, construction, geothermal,

directional boring, and

underground foundation work



IADC

WOB

(KN/mm)

RPM

(r/min)

Applicable Formations
114/116/1170.3~0.75180~60Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
124/126/1270.3~0.85180~60Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
134/135/136/1370.3~0.95150~60Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
214/215/216/2170.35~0.95150~60Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
2270.35~0.95150~50Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
