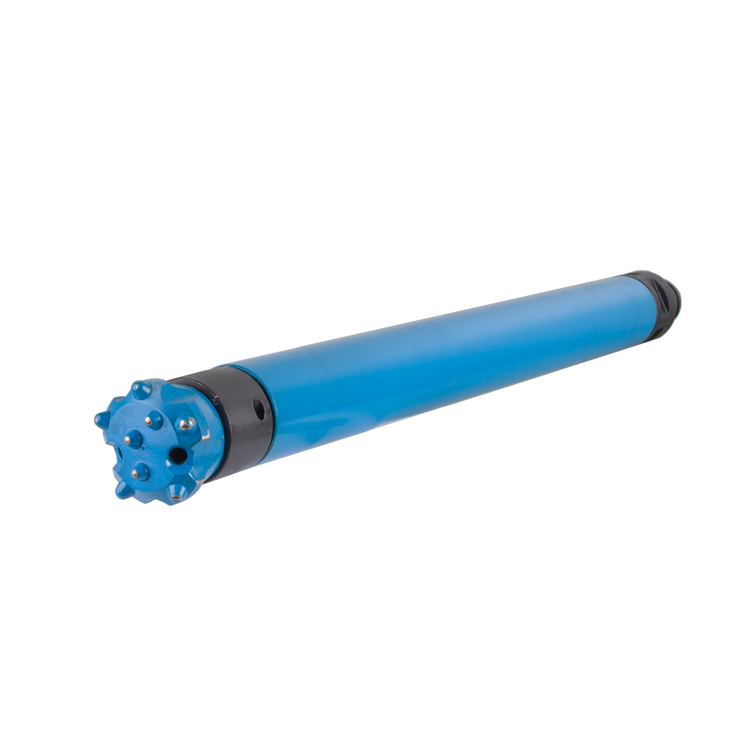

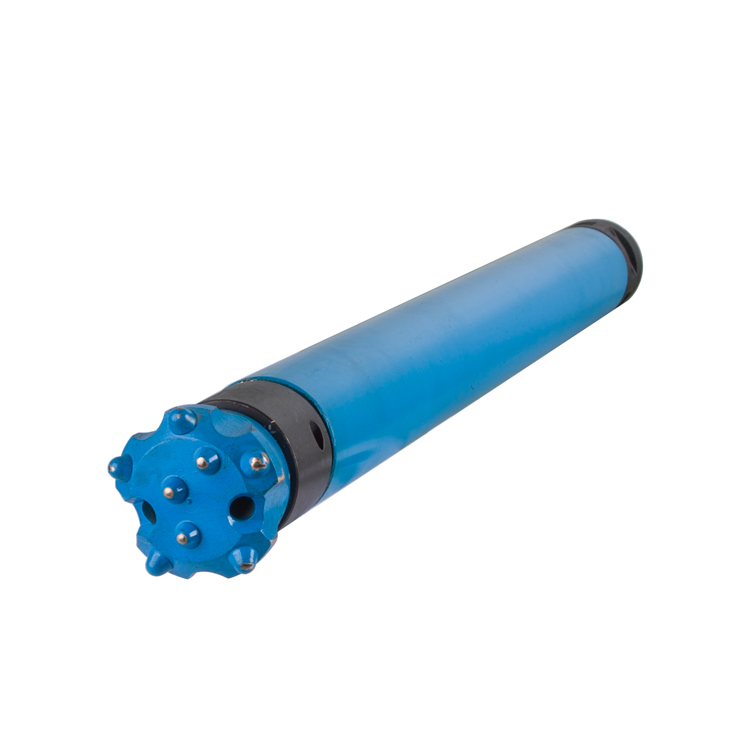

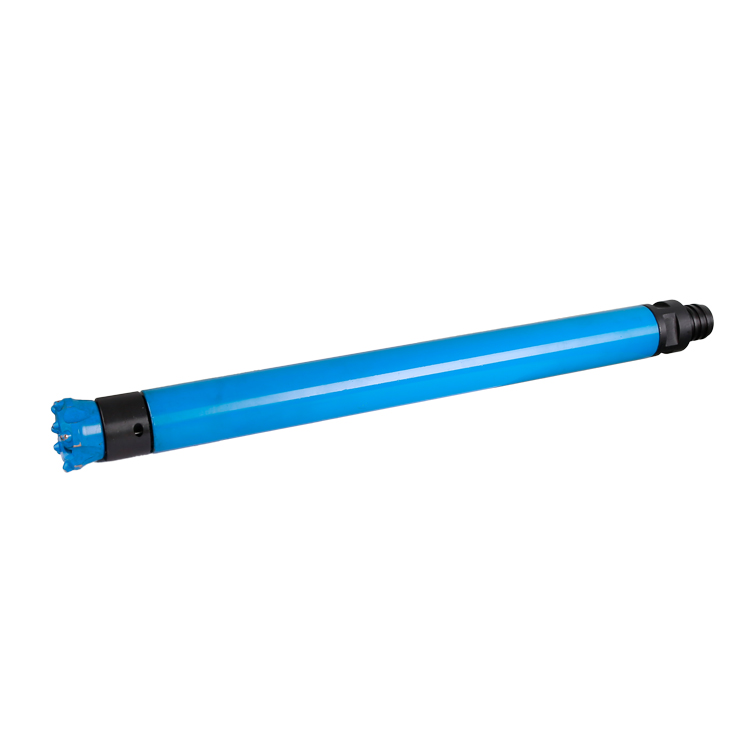

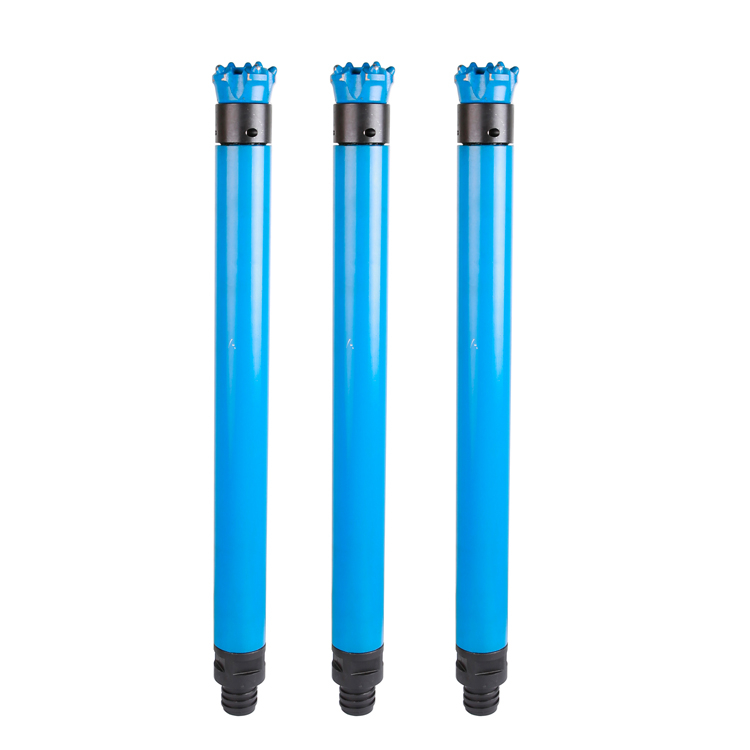

CIR70 CIR90 CIR110 CIR150 Low Air Pressure DTH Hammer
Bestlink
Low air pressure DTH hammer
CIR series DTH hammer, a kind of valve-equipped low-air-pressure hammer with a single piston, a plate valve and a central exhaust structure. The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance, some high-pressure water may be added into the air for wet rock drilling.
Main Characteristics:
1.The strong energy of single impact and the low energy consumption in rock crushing;
2. The weight ratio of piston and bit almost reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock
crushing and the extended service life of the drilling tools;
3.A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock;
4.A check valve device is available to drill holes under water

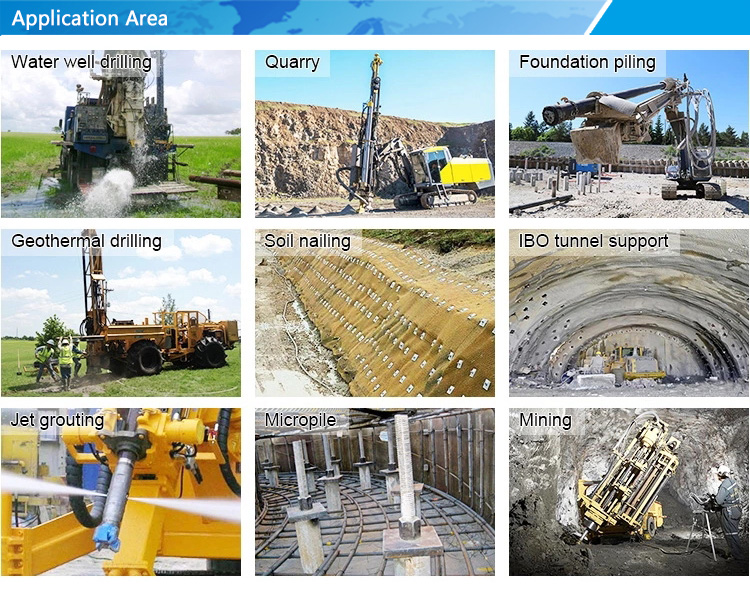

The CIR series DTH hammer, and ideal drilling tools, is widely used in such industries relating to energy,transportation,metallurgy,building etc.
Model | CIR65A | CIR70 | CIR80 | CIR80X |
suitable bit dia(mm) | 68 | 76 | 83 | 83 |
External dia(mm) | 57 | 65 | 72 | 72 |
Length(less bit,mm) | 777 | 811 | 795 | 759 |
Weight(kg) | 13 | 13.5 | 18 | 21 |
Working pressure(kg/cm2) | 5-7 | 5-7 | 5-7 | 5-7 |
Air consumption(m3/min) | 3.5 | 4 | 5.5 | 4.3 |
Impact force(N/m) | 50 | 68.6 | 79.4 | 66.7 |
Impact frequency(r/min) | 810 | 810 | 800 | 980 |
Suitable bits model | QT65 | CIR70-18 | QT80 | QT80 |
Connection thread | male:42x10x1.5 | Female 48.8x4.2 | male:48x10x2 | Female 48.8x4.2 |
Model | CIR-90 | CIR-110 | CIR-150 | CIR-150A |
suitable bit dia(mm) | 90,100,110 | 110,120 | 155,165 | 155,165 |
External dia(mm) | 80 | 98 | 136.5 | 142 |
Length(less bit,mm) | 795 | 838 | 904 | 909 |
Weight(kg) | 21 | 36 | 85 | 89 |
Working pressure(kg/cm2) | 5-7 | 5-7 | 5-7 | 5-7 |
Air consumption(m3/min) | 7.2 | 12 | 15.9 | 16.5 |
Impact force(N/m) | 108 | 176.5 | 333 | 412 |
Impact frequency(r/min) | 820 | 830 | 800 | 790 |
Suitable bits model | QT90B QT90C QT90D | CIR110-16A CIR110-16B | CIR150-17A CIR150-17B | CIR150-17A CIR150-17B |
Connection thread | Male: T48x10x2 | Female: API 2-3/8" | Female: T75x10x2.5 | Female: T75x10x2.5 |
Model | CIR-170 | CIR-170A | CIR-200W |
suitable bit dia(mm) | 175,185 | 175,185 | 200 |
External dia(mm) | 156 | 159 | 182 |
Length(less bit,mm) | 1022 | 1033 | 1252 |
Weight(kg) | 102 | 119 | 180 |
Working pressure(kg/cm2) | 5-7 | 5-7 | 5-7 |
Air consumption(m3/min) | 18 | 18 | 20 |
Impact force(N/m) | 431 | 490 | 637 |
Impact frequency(r/min) | 790 | 850 | 835 |
Suitable bits model | CIR170-17A CIR170-17B | CIR170-17A CIR170-17B | CIR200W-16 |
Connection thread | male: T100X28X10 | male: T100X28X10 | male:120x40x10 |
