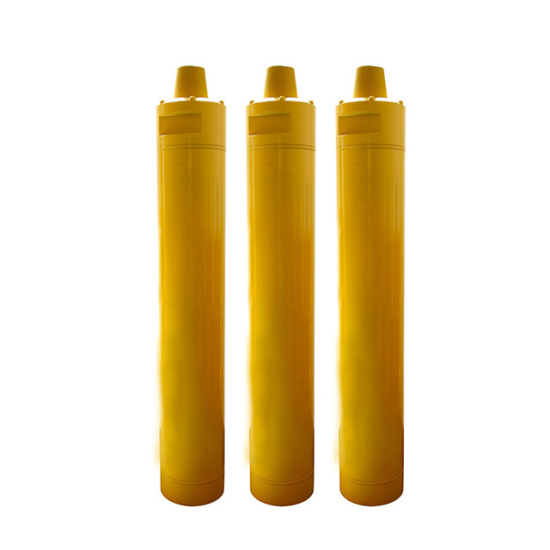

8 Inch High Performance Rock Well Drilling DTH Hammer COP84 DHD380 HD85 SD8 QL80 MISSION8 Long Life

8 Inch High Performance Rock Well Drilling DTH Hammer COP84 DHD380 HD85 SD8 QL80 MISSION8 Long Life
DTH drilling is a percussion system driving a piston inside hammer body with up and down motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock.
Availability:
Quantity:
Inquire Add to Basket

  • 8 inch SD8 DTH Hammer

  • Bestlink

8 Inch High Performance Rock Well Drilling DTH Hammer COP84 DHD380 HD85 SD8 QL80 MISSION8 Long Life

Advantages:

- Advanced hammer designs with high power and air efficiency increases productivity

- Tailored product offering covers all your applications and conditions

- Easy service and maintenance designs reduces machine downtime

- Generic and proprietary shank options give you flexibility and reliability

Length  (no bit) Weight (no bit) External  diameter Bit shank Hole range Connection thread
1492mm 187kg Φ180mm Cop84
   DHD380		 Φ200-Φ279 API 4 1/2" Reg
Working
   pressure		 Impact rate at
   1.7MPa		 Recommended
   rotation speed		 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 20Hz 15-25r/min 15m3/min 26m3/min 34m3/min

Length (no bit) Weight (no bit) External diameter Bit shank Hole range Connection thread
1463mm 192kg Φ180mm SD8 Φ200-Φ279 API 4 1/2" Reg
Working
   pressure		 Impact rate at
   1.7MPa		 Recommended
   rotation speed		 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 20Hz 15-25r/min 15m3/min 26m3/min 34m3/min

Length (no bit) Weight (no bit) External diameter Bit shank Hole range Connection thread
1465mm 182kg Φ185mm QL80 Φ200-Φ279 API 4 1/2" Reg
Working
   pressure		 Impact rate at
   1.7MPa		 Recommended
   rotation speed		 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 20Hz 15-25r/min 15m3/min 26m3/min 34m3/min

Product Tag:

dth drilling hammer high air pressure dth hammer DTH Hammer,   Down The Hole Hammer,   Mission Shank DTH Hammer,   DTH Hammer for Mining,   DTH Hammer for Well Drilling
