10 Inch Down The Hole SD10 Numa100 DTH Rock Button Drill Bits for Mining and Rock Well Drilling

6 Inch DHD360 SD6 QL60 Mission60 DTH Hammer Bits Rock Drill Button Bits for Waterwell Drilling
Bestlink company makes and supplies the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries.
Availability:
Quantity:
Inquire Add to Basket

  • 10 Inch High Air Pressure DTH Button Bit

  • Bestlink

10 Inch Down The Hole SD10 Numa100 DTH Rock Button Drill Bits for Mining and Rock Well Drilling

Bestlink company makes and supplies the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries.

We can design and manufacture according to customer's requirement of the Bit Diameter、No. air holes、carbide button shape and the face shape.

Drill Bit

Bit Dia.(mm)

NO.Air
Holes

Gauge
Buttons

Front
Buttons

Weight(Kg)

SD10

254

3

12*Φ18

20*Φ16

108

305

4

12*Φ18

36*Φ16

125

311

4

12*Φ18

36*Φ16

130

318

4

12*Φ18

36*Φ16

142

330

4

16*Φ18

42*Φ16

155

Numa100

254

3

12*Φ18

20*Φ16

90

305

4

12*Φ18

36*Φ16

102

311

4

12*Φ18

36*Φ16

104

318

4

12*Φ18

38*Φ16

106

330

4

14*Φ18

42*Φ16

112

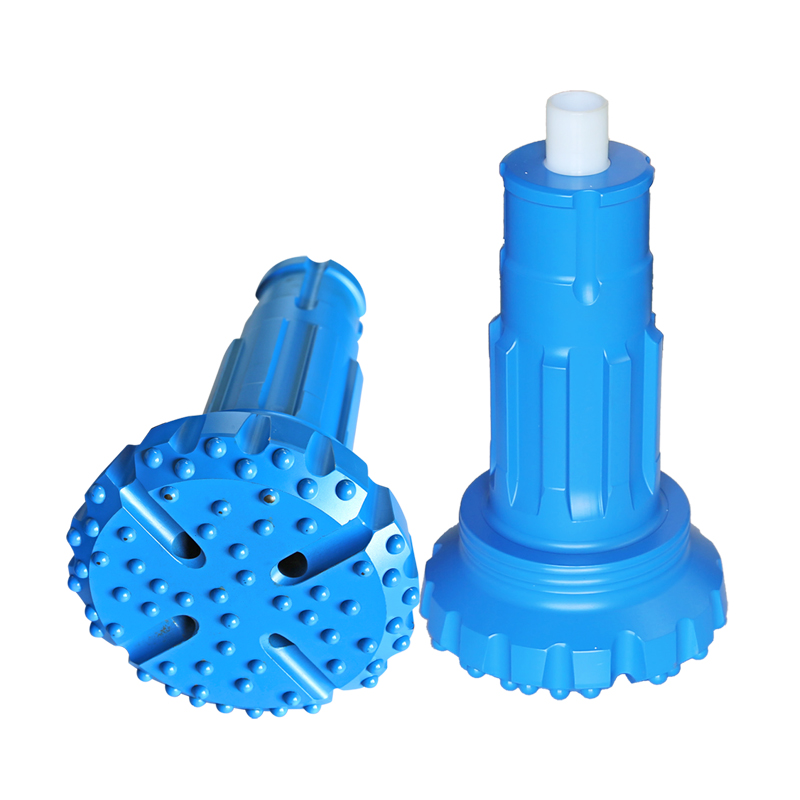

sd10 drill bits

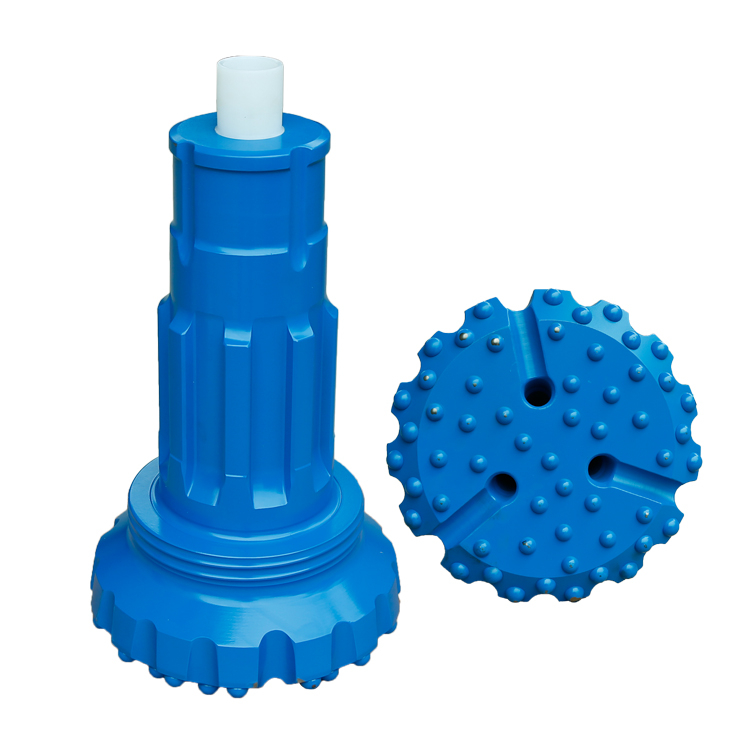

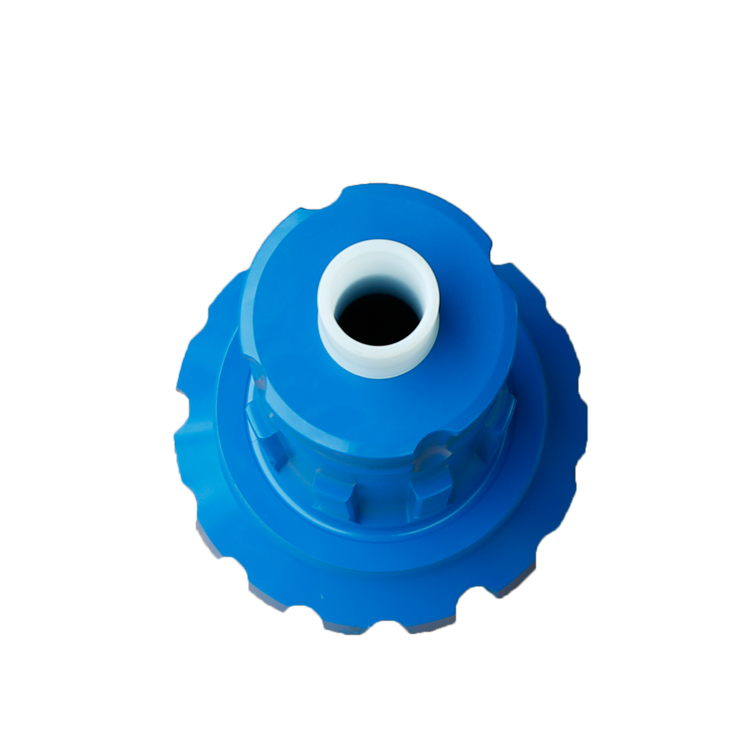

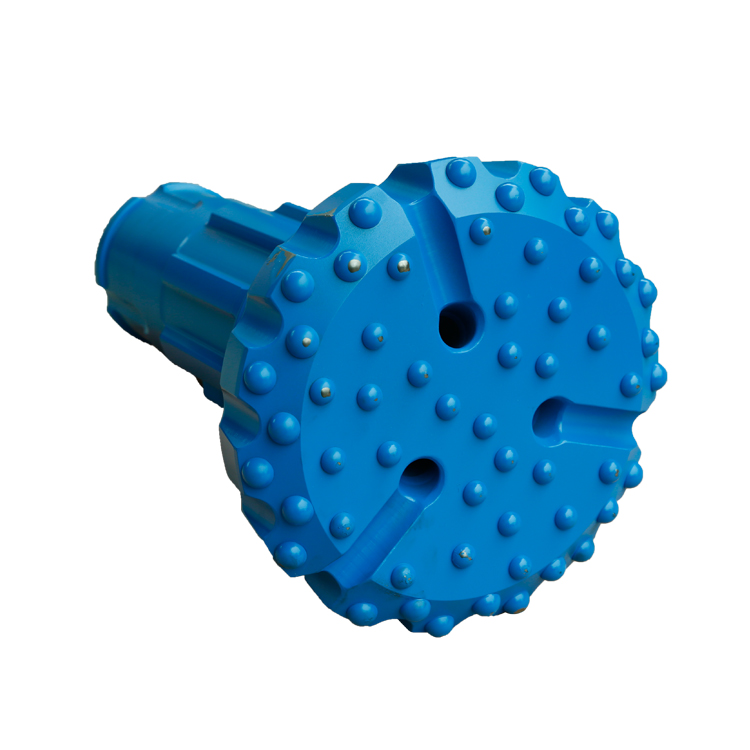

SD10-305mm FFD DTH bit 6

详细描述 Bit-Face-Shape 1详细描述 Bit-Face-Shape 2drill bits


application area
