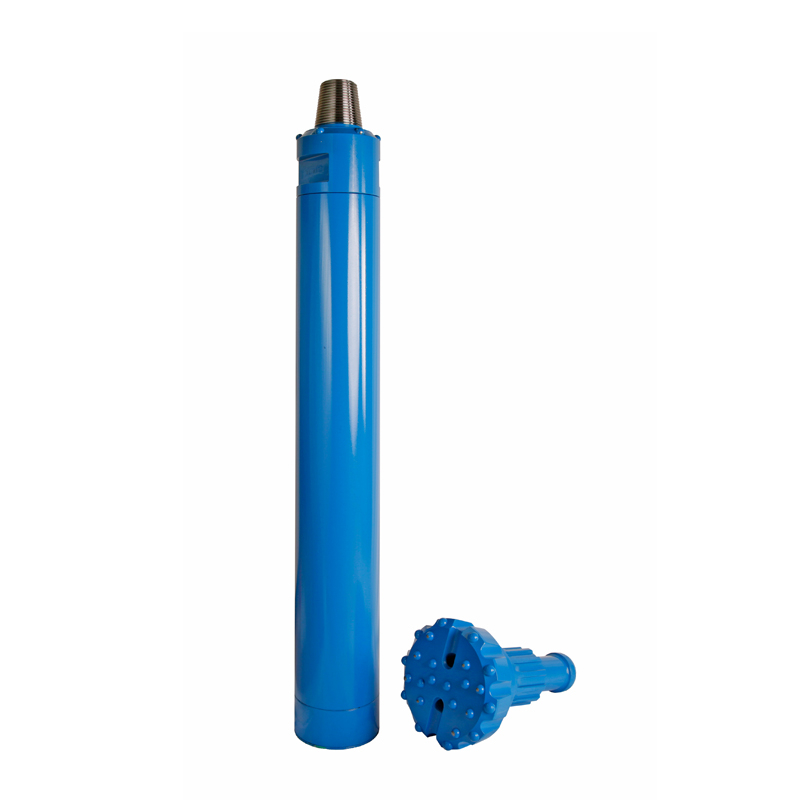

6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Down The Hole Hammer for Water Well Drilling

6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Down The Hole Hammer for Water Well Drilling
DTH drilling is a percussion system driving a piston inside hammer body with up and down motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock.
Availability:
Quantity:
Inquire Add to Basket

  • 6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Hammer

  • Bestlink

6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Down The Hole Hammer for Water Well Drilling


- Advanced hammer designs with high power and air efficiency increases productivity

- Tailored product offering covers all your applications and conditions

- Easy service and maintenance designs reduces machine downtime

- Generic and proprietary shank options give you flexibility and reliability

Length (no bit) Weight (no bit) External  diameter Bit shank Hole range Connection thread
1248mm 100.5kg Φ142mm

Cop64

DHD360

 Φ152-Φ203 API 3 1/2" Reg

Working

pressure

Impact rate at

1.7MPa

Recommended

rotation speed

 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 23Hz 25-30r/min 10m3/min 20m3/min 28.5m3/min

Length (no bit) Weight (no bit) External diameter Bit shank Hole range Connection thread
1261mm 100kg Φ142mm SD6 Φ152-Φ203 API 3 1/2" Reg
Working
   pressure

Impact rate at

1.7MPa

Recommended

rotation speed

 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 23Hz 25-30r/min 10m3/min 20m3/min 28.5m3/min

Length (no bit) Weight (no bit) External diameter Bit shank Hole range Connection thread
1212mm 95kg Φ148mm QL60 Φ152-Φ203 API 3 1/2" Reg

Working

pressure

Impact rate at

1.7MPa

Recommended

rotation speed

 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 23Hz 25-30r/min 10m3/min 20m3/min 28.5m3/min

Length (no bit) Weight (no bit) External diameter Bit shank Hole range Connection thread
1161mm 96.5kg Φ148mm Mission60 Φ152-Φ203 API 3 1/2" Reg

Working

pressure

Impact rate at

1.7MPa

Recommended

rotation speed

 Air consumption
1.0MPa 1.8MPa 2.4MPa
1.0-2.5MPa 25Hz 20-30r/min 9m3/min 18m3/min 26m3/min
