Semi-Automatic Button Bit Grinder

Views:1     Author:Site Editor     Publish Time: 2020-05-27      Origin:Site

Semi-Automatic Button Bit Grinder

BTON 500 semiautomatic button bit grinder have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved. Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant During the grinding process.

Button Bit Grinder (8)

Button Bits Sharpener 3

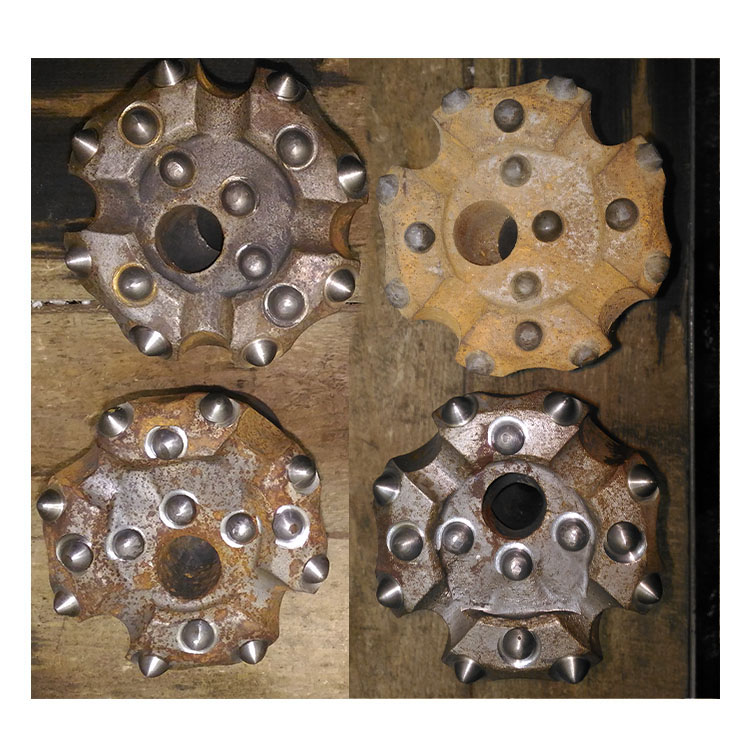

button bits grinder 2 (4)

Rotation speed
20000 rpm
Motor: Pneumatic (air powered) Power output
1.5 KW
Work pressure
5-7 bar (100 psi)
Max. air pressure
8 bar (115 psi)
Air consumption
2.2 m3 / min (80ft3/min)
Max. water pressure
4 bar (60 psi)
Air hose diameter
19 mm
Water hose diameter
4 mm
Weight excl. packaging
50.0 Kg
Weight incl. Packaging
55.0 Kg
Sound level
92 dB(A)

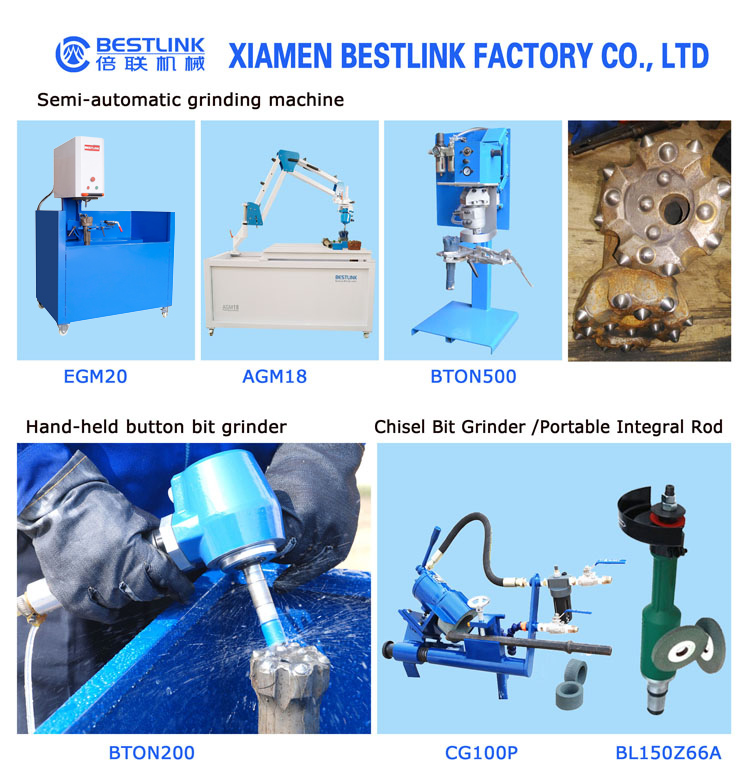

Grinding Machine -


Bestlink Factory

Xiamen Bestlink Factory Co., Ltd  is  committed  to  provide  the  best  drilling  and  cutting machine,  tools and accessories products in marble and granite stone quarrying,  as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite  and ornamental stones in china.
