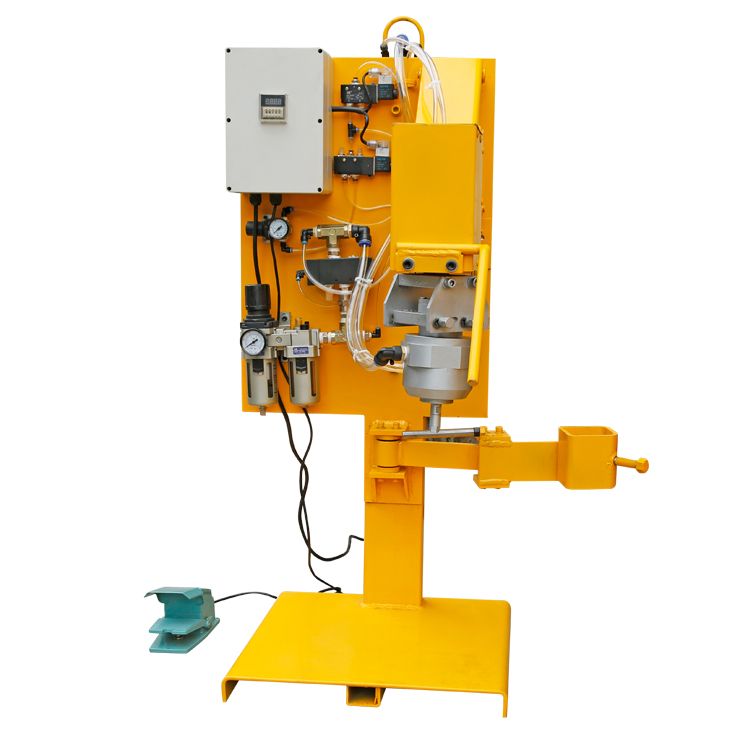

BTON 500 semiautomatic button bit grinder have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved. Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant
During the grinding process.
PREVENTION MEASURES AND INSTRUSTIONS FOR MACHINES OPERATORS
Check that the machine is stable and that the grinder is correctly and tightly fitted to the machine.
Check the integrity of the guards protecting parts in motion.
Report immediately any inappropriate functioning or dangerous situations;
The operator's position needs to be such as not to be in contact with the parts in movement;
Do not remove or modify protection devices;
Do not intervene on mobile parts during the functioning of the machine;
Do not get distracted.
Correctly position the machine without leaving the tool suspended;
Carry out the review and maintenance operations needed to reuse the machine with the power supply disconnected;
In the maintenance operations comply with the indications of this manual;
Clean the machine.
|Rotation speed||20000 rpm|
|Motor: Pneumatic (air powered) Power output||1.5 KW|
|Work pressure||5-7 bar (100 psi)|
|Max. air pressure||8 bar (115 psi)|
|Air consumption||2.2 m3 / min (80ft3/min)|
|Max. water pressure||4 bar (60 psi)|
|Air hose diameter||19 mm|
|Water hose diameter||4 mm|
|Weight excl. packaging||50.0 Kg|
|Weight incl. Packaging||55.0 Kg|
|Sound level||92 dB(A)|
