Hand Held Diamond Grinding Cups Resharpen Grinder

Hand Held Diamond Grinding Cups Resharpen Grinder
Button Bit Grinder Machine. BTON 500 semiautomatic button bit grinder have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.

Quantity:
  • BTON 200 Hand Held Button Bit Grinder
  • BESTLINK

Hand Held Diamond Grinding Cups Resharpen Grinder


Our grinding cup can be used for grinding 7mm-25mm button size. Other sizes available on request.

These grinding cups can be used for grinding both the bit button and body steel in one operation.

The combination grinding pin benefits from a specially developed grinding material capable of grinding both carbide and steel at a regular and consistent rate.

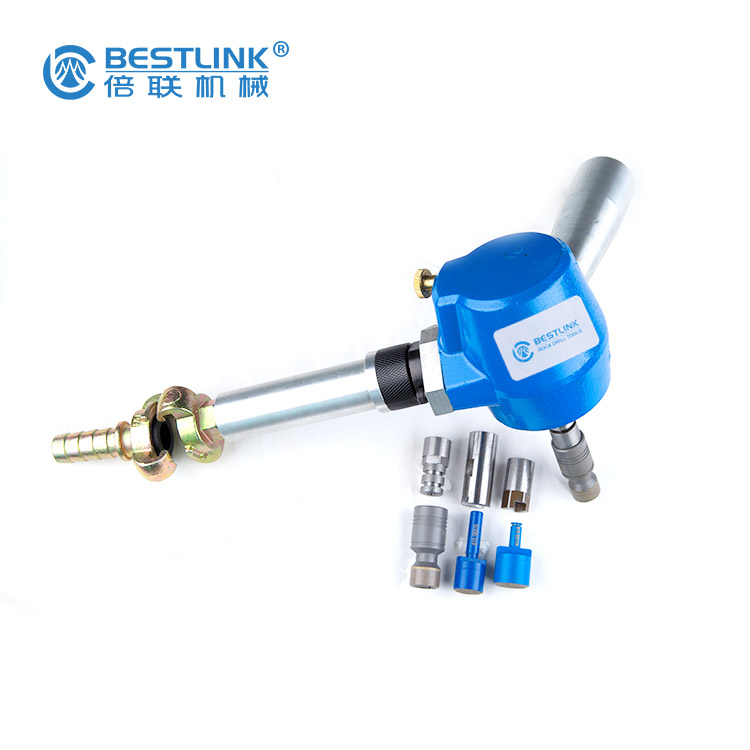

DTH Bit grinder (9)

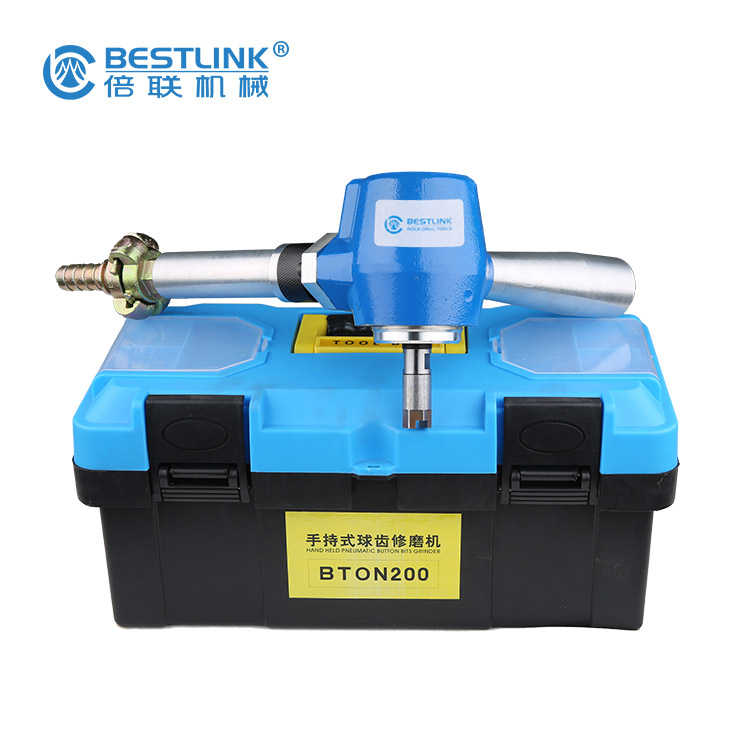

DTH Bit grinder (2)


Safety Precautions

1. The working air pressure must be no more than 7 bars.

2. Operator must wear safety protection equipment like glove & safety goggles.

3. All the disassembly, assembly & maintenance must be done by professional.

4. Cleaning & servicing activity must be done after the power cut off.

5. Only use original spare parts.



BTON200 Button Bit Grinder
Spindle Speed 20000 RPM
Power Output 1.5 KW
Working Air Pressure 0.5-0.63MPa
Air Consumption 2.0m3/min
Max. Water Pressure 4bar
Air Hose Diameter 16mm
Water Hose Diameter 8mm
Button range for grinding 6mm-25mm
Weight excl. packaging 3.5kg
Weight incl. packaging 4kg
Packing Size 300*250*160mm
Sound Level 80 dB



For bit's button shape For bit's button size (mm)
spherical buttons ballistic buttons 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
bit's body steel removal 7-8 9-10 11-12 13-14 15-16 17-18 19-20

grinding cup 8

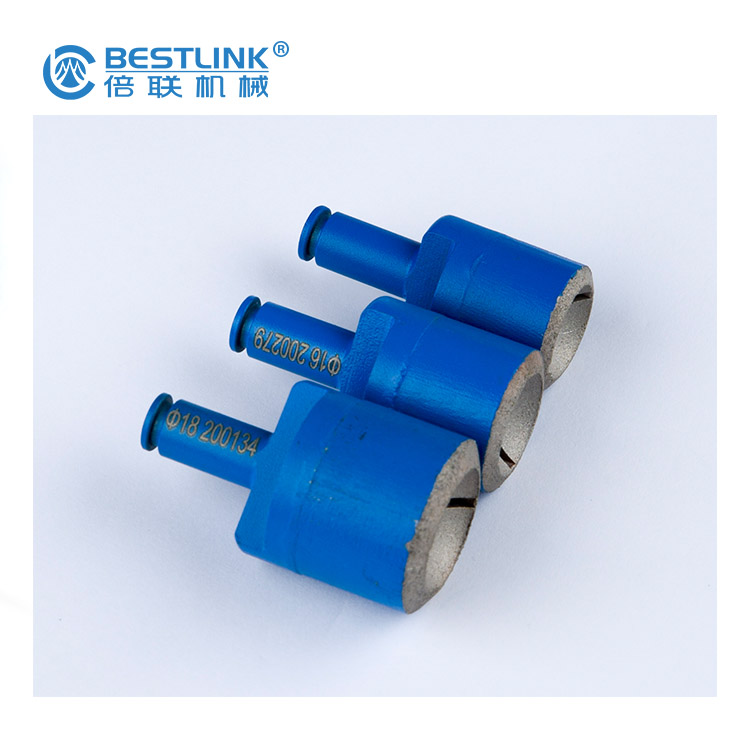

grinding cup 1
