Concrete Demolition and Stone Block Silent Cracking Hydraulic Rock Splitter

It is our newly developed products for quarrying and civil construction, which is mainly applicable to the secondary breaking of large boulders, squaring breaking of large boulders ,squaring blocks. Driven Mortor: Electric / Diesel / Gasoline / Pneumatic.

BS36/38/40 uses Iron Cylinders, BS42/45 have both Iron and Aluminium Alloy cylinders. Aluminium Alloy cylinder is ighter and stronger. Besides, we already successfully copied the same cylinder from German Darda, and the model no. is C12 (N), it is with the same shape,same parts and same performance as the original one.

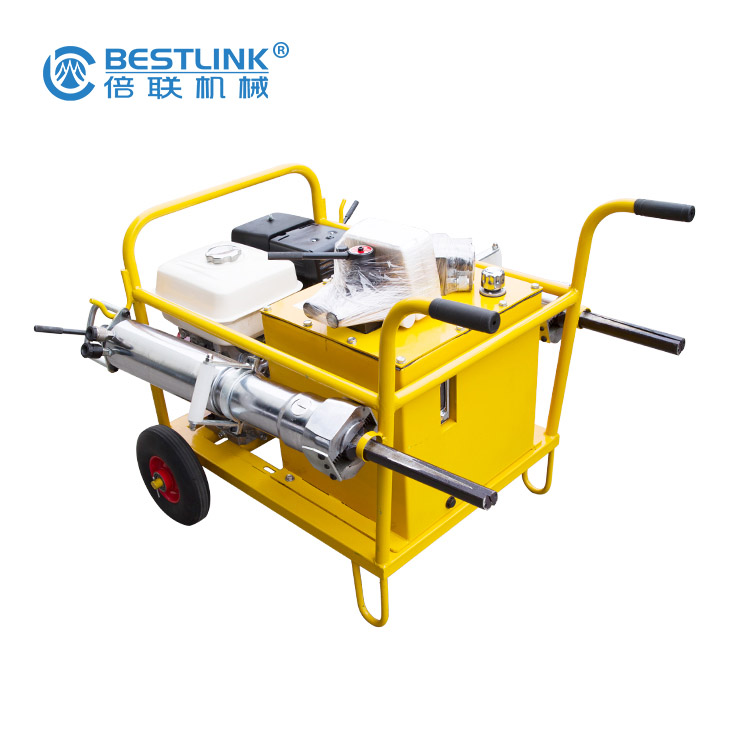

 Hydraulic Rock Splitter (17)

Features:

1)Enormous splitting force up to 410 tons

2)Dust free and near silent operation

3)Vibration free

4)Light weight

5)Precision work

6)Always controllable

7)For use in close quarters and hard to access places.

8)Easy handling

 Cylinder Aluminium alloy

Specifications:

1.Hydraulic Pump pack

A) Electric motor driven model
Power modeloverall size(mm)Weight(kg)Oil pumping station reserves (L)Engine powerWorking pressure(MPa)Flux (l/m)Towable of splitter quantity(pc)
Electric motor
23 50.75KW(220V/380V)55-600.71
 384*280*62075 303KW(380V)55-6021-3



7.5KW(380V)55-60131-10
B) Gasoline engine driven model
Power modeloverall size(mm)Weight(kg)Oil pumping station reserves(L)Engine powerWorking pressure(MPa)Flux(L/m) Towable of splitter quantity(pc)
Gasoline model1200*1170*800100407.5HP55-602-131-10
C) Diesel engine driven model
Power modeloverall size(mm)Weight(kg)Oil pumping station reserves(L)Engine PowerWorking pressure(MPa)flux(L/m)Towable of splitter quantity(pc)
Diesel engine1150*1180*940260405.15KW55-602-131-10
D) Pneumatic driven model
Power modeloverall size(mm)Weight(kg)Oil pumping station reserves (L)Rated power(kw)Working pressure(MPa)Oil flux(L/m) Towable of splitter quantity(pc)
Air motor384*280*62070304.1055-602-131-10



2.Hydraulic cylinder:

bore diameter requiredMin. bore depth requiredSplitting distanceSplitting timeTheoretic spliting powerActual split powerCylinder weight
Φ32-35mm≥300mm10-30mm5-12s380T220T20kg
Φ35-38mm≥400mm10-35mm5-12s560T310-320T25kg
Φ38-42mm≥500mm10-40mm5-12s680T410-120T32kg
