Block Cutting Machine for Granite Mining

Block Cutting Machine for Granite Mining. This kind of saw machine is special for over-sized quarrying which materials are quality and uniform, it's the most economical method to extract the dimensional blocks from quarry, suitable for granite, marble and sand stone quarries. Advantage: stable performance, convenient operation, better shape, less quarrying dust and waste stock debris, safety, protect environment, high efficiency, save mining cost, increase output and recovery.

Quantity:
  • Double-Blades Stone Cutter
  • BESTLINK

Block Cutting Machine for Granite Mining

This kind of saw machine is special for over-sized quarrying which materials are quality and uniform, it's the most economical method to extract the dimensional blocks from quarry, suitable for granite, marble and sand stone quarries. Advantage: stable performance, convenient operation, better shape, less quarrying dust and waste stock debris, safety, protect environment, high efficiency, save mining cost, increase output and recovery.



Double-blade Mining Machine (Essentials model)

Structure Characteristics

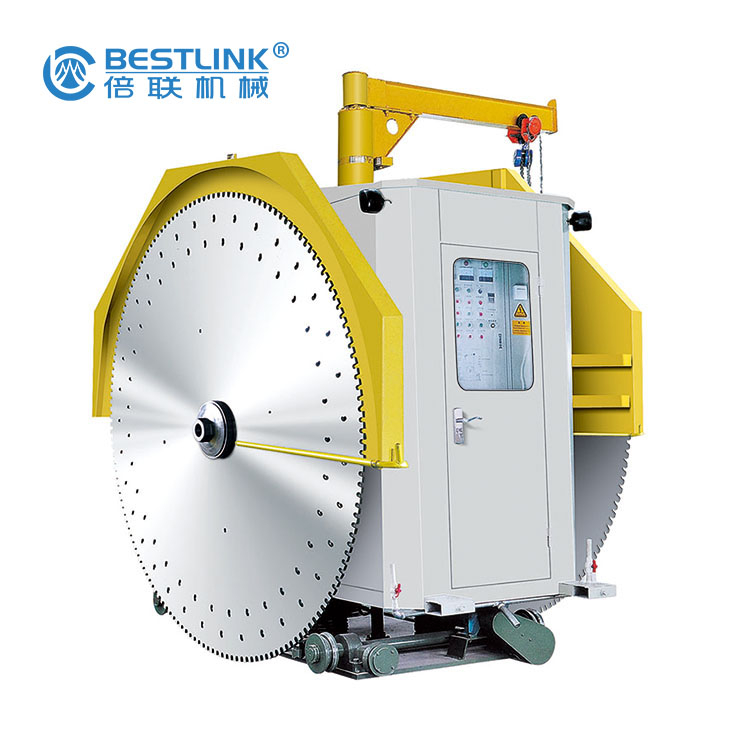

Double Blades Stone Cutter矿山基本型

1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

2.The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.

3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.

4.Equipped with supergiant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource.

5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.

Technical Date:

unit

SCE-1360/1900

SCE-1500/2000

SCE-1950/2450

SCE-2600/3100

Diameter of blade

mm

Φ2200*2-Φ3600*2

Φ2200*2-Φ3600*2

Φ2200*2-Φ4800*2

Φ2200*2-Φ4800*2

scope of cutting depth

mm

850-1550

850-1550

1050-2250

1050-2250

Scope of cutting width

mm

1360-1900

1500-2000

1950-2450

2600-3100

Water consumption

m3/h

5

5

5

5

Power of main-drive

kw

45*2

45*2

45*2/55*2

45*2/55*2

Total power

kw

98.5

98.5

98.5/118.5

98.5/118.5

Center distance of rail

mm

1140

1290

1670

2200

Overall dimension(L*w*H)

mm

3550*1450*2850

3550*1600*2850

5200*2100*3600

5200*2700*3600

Approximate weight

kg

7500-8500

7500-8500

10000-110000

11000-12000



Double-blade Mining Machine (with all-wheel-drive walking system)

Structure Characteristics

Double Blades Stone Cutter 矿山豪华装

1.This machine adopts the new all-wheel-drive walking mechanism, don’t need daily maintenance.

2.Solve the chain rupture problem of the traditional chain drive.

3.Sharply reduce the cost of the cutting segments, reduce the power consumption.

4.The spindle box directly connect with the motor instead of a belt connection ,Play to maximize the effective power of the motor.

5.With technology of Siemens, tracking automatically by Microcomputer, Automatic deceleration when motor overload or the cutting blade is nipped, prevent burning the main motor, improve the main motor’s life and production.


Technical Date:

unit

SCL-1360/1900

SCL-1500/2000

SCL-1950/2450

SCL-2600/3100

Diameter of blade

mm

Φ2200*2-Φ3600*2

Φ2200*2-Φ3600*2

Φ2200*2-Φ4800*2

Φ2200*2-Φ4800*2

scope of cutting depth

mm

850-1550

850-1550

1050-2250

1050-2250

Scope of cutting width

mm

1360-1900

1500-2000

1950-2450

2600-3100

Water consumption

m3/h

5

5

5

5

Power of main-drive

kw

55*2

55*2

55*2

55*2

Total power

kw

118.5

118.5

118.5

118.5

Center distance of rail

mm

1140

1290

1670

2200

Overall dimension(L*w*H)

mm

3550*1450*3100

3550*1600*3100

5200*2100*3600

5200*2700*3600

Approximate weight

kg

8000-10000

8000-10000

10500-11500

11500-12500
