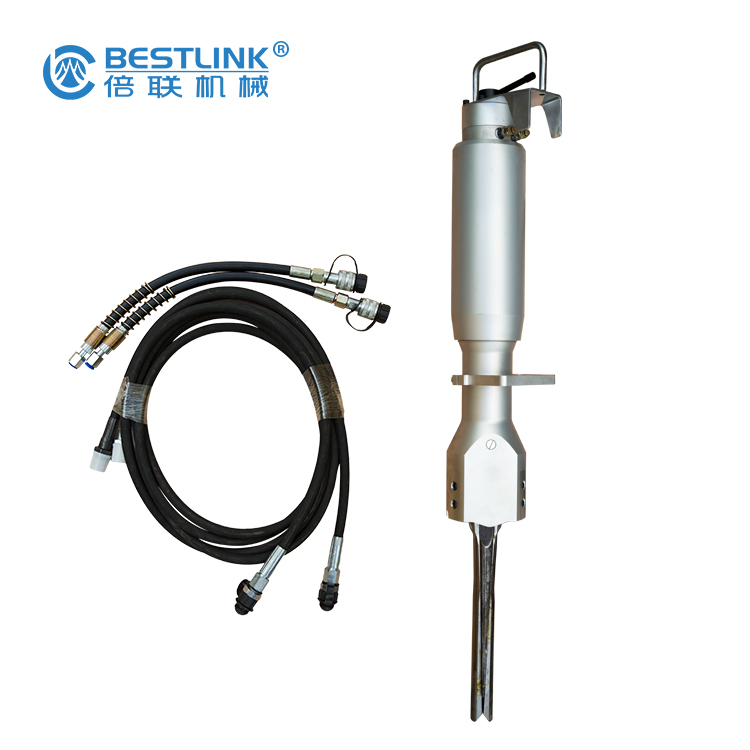

Hydraulic Rock Splitter Cylinder in Mining Use
BESTLINK
The hydraulic Rock & Concrete splitter is our newly developed Product which is a powerful and extremely cost-effective alternativeto other conventional demolition techniques. It functions according to theproven wedge principle where by a strong force is applied in an extremely constricted space.
Rock and concrete put up considerable resistance to forces applied externally. By comparison the resistance of rock and concrete to force applied internally is 90% less, with the result that they disintegrate relatively easily.
The hydraulic rock & concrete splitter is the most suitable tool for demolition It has many advantages: small cubage, light, easy to operate, high efficiency etc. Now it is widely used in stone quarry, mineral mining and capital construction. It is also an indispensable tool in clearing the barrier in city construction, river dredging, salvation etc.
Hydraulic Power Station Specifications
Technical data of Diesel engine: | |||||||
| Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine Power | Working pressure(MPa) | flux(L/m) | Towable of splitter quantity(pc) |
| Diesel engine | 1150*1180*940 | 260 | 40 | 5.15KW | 55-60 | 2-13 | 1-10 |
Technical data of Gasoline engine: | |||||||
| Power model | overall size(mm) | Weight(kg) | Oil pumping station reserves(L) | Engine power | Working pressure(MPa) | Flux(L/m) | Towable of splitter quantity(pc) |
| Gasoline model | 1200*1170*800 | 100 | 40 | 7.5HP | 55-60 | 2-13 | 1-10 |
| Technical data of electric engine: | |||||||
| Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | Engine power | Working pressure(MPa) | Flux | Towable of splitter quantity(pc) |
| (kg) | (L/M) | ||||||
| Electric motor | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.7 | 1 | |
| 384*280*620 | 75 | 30 | 3KW(380V) | 55-60 | 2 | 1-3 | |
| 7.5KW(380V) | 55-60 | 13 | 1-10 | ||||
| Technical data of pneumatic model: | ||||||||
| Power model | overall size(mm) | Weight | Oil pumping station reserves (L) | rotating speed(r.p.m) | Rated power(kw) | Oil flux(L/m) | Working pressure(MPa) | Towable of splitter quantity(pc) |
| Air motor | 384*280*620 | 70kg | 30 | 2000 | 4.10 | 2-13 | 55-60 | 1-10 |
Hydraulic Splitter Cylinder Secifications
| Model | bore diameter required (mm) | cylinder bore diameter (mm) | length of splitter plug and feathers (mm) | Min. bore depth required (mm) | Splitting distance (mm) | Splitting time (S) | Theory splitting force (T) | Actual splitting force (T) | Single cylinder weight (kg) |
| BS38-40 A | ¢38-40 | 80 | 150 | ≥300 | 10~35 | 5~12 | 500 | 280 | 23 |
| BS38-40 B | ¢38-40 | 80 | 200/250 | ≥400 | 10~40 | 5~12 | 650/600 | 350/300 | 25/26 |
| BS40-42 | ¢40-42 | 90 | 300 | ≥600 | 10~40 | 5~12 | 680 | 420 | 30 |
| BS42-46 | ¢42-44 | 90 | 380 | ≥600 | 10~40 | 5~12 | 650 | 500 | 31 |
| BS44-46 A | ¢44-46 | 100 | 300/380 | ≥600 | 10~40 | 5~12 | 780 | 550 | 33 |
| BS44-46 B | ¢44-46 | 105 | 300/380 | ≥600 | 10~40 | 5~12 | 880 | 600 | 33 |
| BS46-48 | ¢46-48 | 110 | 300/380 | ≥600 | 10~40 | 5~12 | 1080 | 700 | 32 |
Hydraulic splitter
Hydraulic rock & concrete splitter is one of the efficient, safest and easiest ways of mining, quarring, demolition & removing mass and reinforced concrete.
Advantage of our hydraulic splitter:
● Enormous splitting force up to 500 tons
● Dust free and near silent operation
● Vibration free
● Light weight
● Precision work
● Always controllable
● For use in close quarters and hard to access places
● Easy handling
● Different size counter wedge and center wedge can use on the same splitter
Typical Applications:
● All kinds of natural stones, rock, granite, marble mining & quarrying
● Machine bases
● Bridge columns
● Reinforced concrete structures
● Mass foundations
● Controlled demolition of pillars, concrete and walls where heavy equipment is impractical
● Staircase removal
● Premises that may be in continual use such as hospitals, factories, offices and hotels
● removing redundant reinforced concrete structures, concrete machine beds and plinths, mass filled concrete etc.
● Underwater demolition
● Demolition in a restricted space
● Tunnel work
● Trench excavation
Specifications:
Model | Hole | Counter | Min. Hole | Theory | Actually | Weight | Length of | Splitting |
BS08 | 32-34 | 150 | 450 | 600 | 410 | 33 | 700 | 10--18 |
250 | 550 | |||||||
350 | 650 | |||||||
450 | 750 | |||||||
36-38 | 150 | 450 | 600 | 410 | 33 | 700 | ||
250 | 550 | |||||||
350 | 650 | |||||||
450 | 750 | |||||||
BS08 | 38-40<, /P,> | 150 | 450 | 600 | 410 | 33 | 700 | 10--18 |
250 | 550 | |||||||
350 | 650 | |||||||
450 | 750 | |||||||
44-50 | 150 | 450 | 600 | 410 | 33 | 700 | ||
250 | 550 | |||||||
350 | 650 | |||||||
450 | 750 |
