BTON 200 Hand Held Button Bit Grinder
BESTLINK
Hand held pneumatic button bits grinder BTON200
Rotation speed:20000RPM
Motor power: 1.5 KW
Work pressure: 5-7 bar (100 psi)
Air consumption: 2.0 m3 / min (50ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6mm
Weight excl. packaging: 3.0 Kg
Weight incl. packaging: 3.4 Kg
Sound level: 92 dB(A)
Pneumatic Semi-automatic button bits grinder BTON500
Rotation speed:20000 rpm
Motor Power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:120.0 Kg
Weight incl. packaging: 130.0 Kg
Transport dimensions:500*500*1400mm
Sound level: 92 dB(A),
Pneumatic robot arm button bits grinder AGM18
Rotation speed:20000 rpm
Motor power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:330.0 Kg
Weight incl. packaging: 350.0 Kg
Transport dimensions: 1600*700*1500cm
Sound level: 92 dB(A),

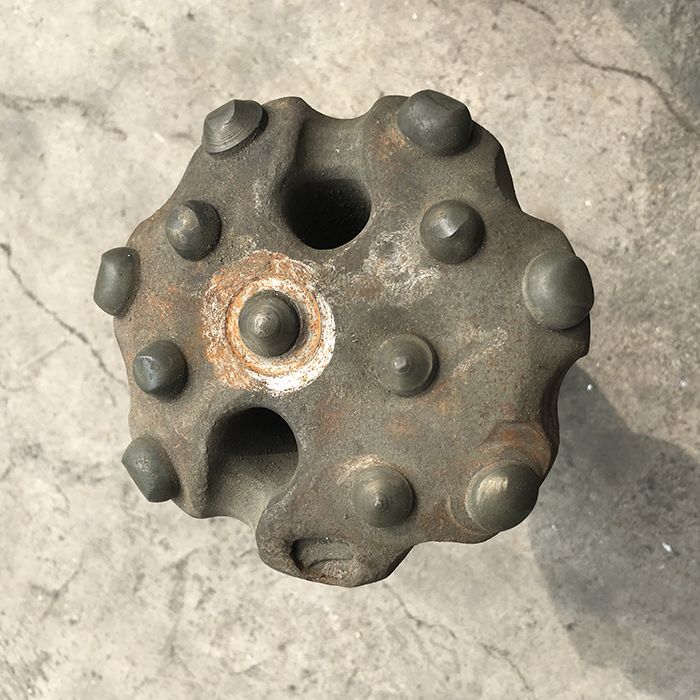

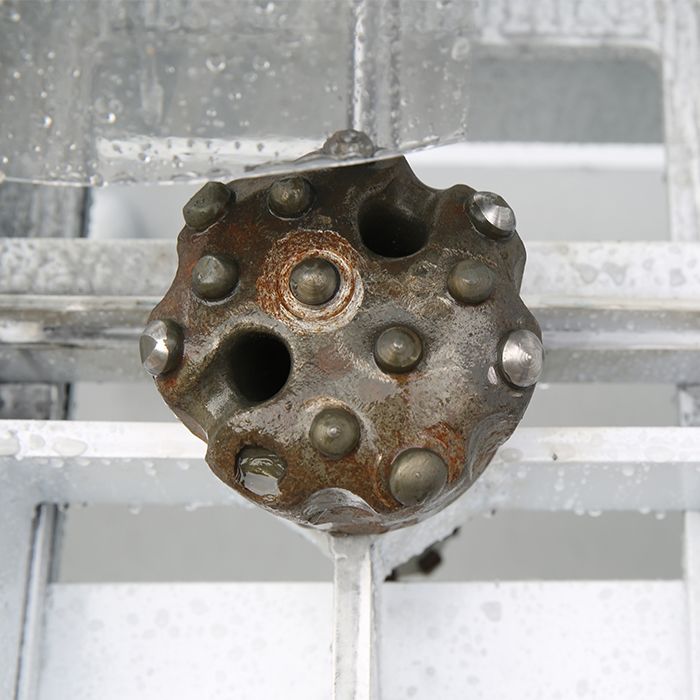

This machine is used for sharpening tungsten carbide button of drill bits, to recover its original function. The motor drives the rotary grinding cup by high speed grinding of tungsten carbide button, the telescopic cylinder drives grinding head up and down, there is a water pump to complete the work of cooling.
TECHNICAL DATA EGM75
Working Capacity:Light-medium duty
Spindle Speed:12000RPM
Electrical Specifications:
Single phase.220-240Volts,40Amps,50 or 60Hz.10kw
Bit Holder Capacity:
Threaded Bit---skirt diameter,max 140mm (5 1/2")
Down the Hole Bit,shank diameter, max 140mm (5 ½")
Max. Water/Coolant Press.:4 bar (60 psi)
Grinder Dimensions:1600 x 1100 x 2200 mm
Net weight:700Kg
Sound Level:86 dB(A)
Hand held pneumatic button bits grinder BTON200
Rotation speed:20000RPM
Motor power: 1.5 KW
Work pressure: 5-7 bar (100 psi)
Air consumption: 2.0 m3 / min (50ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6mm
Weight excl. packaging: 3.0 Kg
Weight incl. packaging: 3.4 Kg
Sound level: 92 dB(A)
Pneumatic Semi-automatic button bits grinder BTON500
Rotation speed:20000 rpm
Motor Power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:120.0 Kg
Weight incl. packaging: 130.0 Kg
Transport dimensions:500*500*1400mm
Sound level: 92 dB(A),
Pneumatic robot arm button bits grinder AGM18
Rotation speed:20000 rpm
Motor power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:330.0 Kg
Weight incl. packaging: 350.0 Kg
Transport dimensions: 1600*700*1500cm
Sound level: 92 dB(A),
This machine is used for sharpening tungsten carbide button of drill bits, to recover its original function. The motor drives the rotary grinding cup by high speed grinding of tungsten carbide button, the telescopic cylinder drives grinding head up and down, there is a water pump to complete the work of cooling.
TECHNICAL DATA EGM75
Working Capacity:Light-medium duty
Spindle Speed:12000RPM
Electrical Specifications:
Single phase.220-240Volts,40Amps,50 or 60Hz.10kw
Bit Holder Capacity:
Threaded Bit---skirt diameter,max 140mm (5 1/2")
Down the Hole Bit,shank diameter, max 140mm (5 ½")
Max. Water/Coolant Press.:4 bar (60 psi)
Grinder Dimensions:1600 x 1100 x 2200 mm
Net weight:700Kg
Sound Level:86 dB(A)
