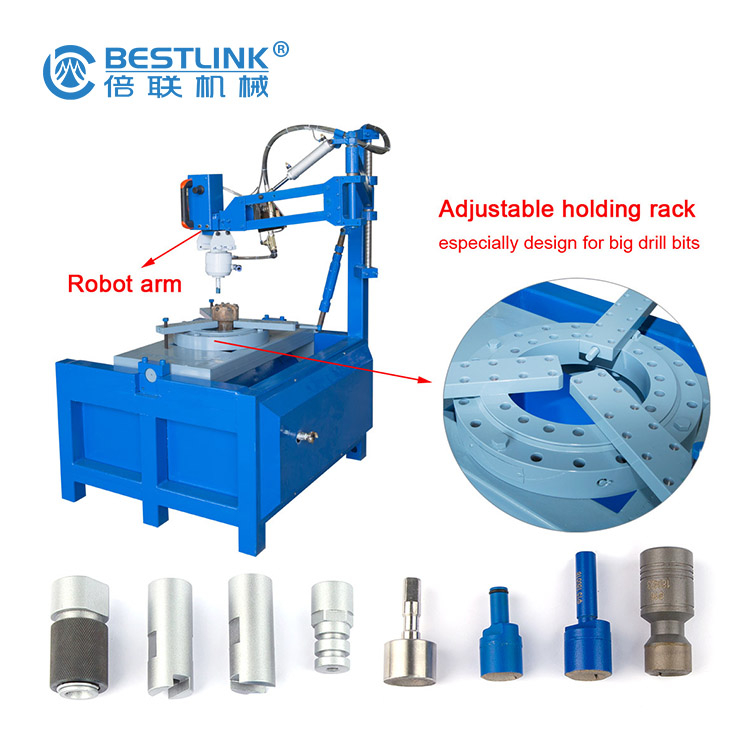

Pneumatic Button Bit Grinder
BESTLINK
whatsapp:+86 13600966313 or email to info@quarryingtools.com
Model：EGM3.0
Working Capacity：Light-Medium duty
Max. Spindle Speed：24000rpm
Electric power data：single phase 220V-240V 50 or 60 Hz 16Amps .
Working air pressure：5-7 bar (100 psi)
Air Consumption：<0.03m3/min (<1 cfm)
Rated power(motor)：3.2kw
Water connection：6mm
water hose Coolant / flushing medium：water
Grinder Dimensions: 1200x1130x1 780mm
Weight excl. packaging: 540Kg
Weight incl. Packaging: 600Kg
Transport dimensions: 1220*1220* 1900mm
Sound Level: 86 dB(A)
Bit Holder Capacity: Threaded Bit skirt diameter, 300mm(51/2")
Bit Holder Capacity: Down the Hole Bit, shank diameter,max 190mm (5 1/2")
Pneumatic Button Bit Grinder (Handheld) BTON200
| Spindle Speed: 22,000 RPM |
| Motor: Air Powered |
| Power Output: 1.8 KW (2.4Hp) |
| Working Air Pressure: 7 bar (100 psi) |
| Max. Air Pressure: 8 bar (115 psi) |
| Air Consumption: 2.2 m3/min. (78 ft3/min) |
| Max. Water Pressure: 4 bar (60 psi) |
| Air Hose Diameter: 19 mm (3/4") ID |
| Water Hose Diameter: 6 mm (1/4") ID |
| Weight Excl. Packaging:3.5 Kg (7.7 Ib) |
| Weight Incl. Packaging: 5.3 Kg (12 Ib) |
| Transport Dimensions: 430x230x230 mm (17"x9"x9") |
| Sound Level: 92 dB(A) |
| Vibration Level (IS0-DIS 8662): <2.5m/s2 |
Pneumatic Semi-automatic button bits grinder BTON500
Rotation speed:22000 rpm
Motor Power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:120.0 Kg
Weight incl. packaging: 130.0 Kg
Transport dimensions:500*500*1400mm
Sound level: 92 dB(A)
Pneumatic robot arm button bits grinder AGM18
Rotation speed:22000 rpm
Motor power: 1.5 KW
Work air pressure: 5-7 bar (100 psi)
Air consumption: 2.2 m3 / min (80ft3/min)
Max. water pressure: 4 bar (60 psi)
Air hose diameter: 19 mm
Water hose diameter: 6 mm
Weight excl. packaging:330.0 Kg
Weight incl. packaging: 350.0 Kg
Transport dimensions: 1600*700*1500cm
Sound level: 92 dB(A)
Diamond Grinding Cups
To get the best grinding effect, you should use the No. 1 quality grinding cups(grinding pins) made by SANSUNG company.
Sansung makes and supplies 4 models of grinding cups(grinding pins) as below:
Wing (shoulder) drive grinding cup for, with a 8mm diameter shaft(shank) and one O-ring. Suitable for Atlas Copco LSD machines, Jasco, Dorey and KING PIN grinding machine.
San drive grinding cup, with a 9mm diameter shaft(shank), suitable for all SANDVIK grinding machines.
55 drive grinding cup is for all Atlas grinding machines.
Internal hex drive grinding cup is for all CME grinding machines.
| Item | Size(mm) |
| For button sharpening | 6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/23/24/25 |
| For steel removing | 7-8, 9-10, 11-12, 13-14, 15-16, 17-18, 19-20 |
| Profile | Semi-ballistic/Hemi-spherical |
