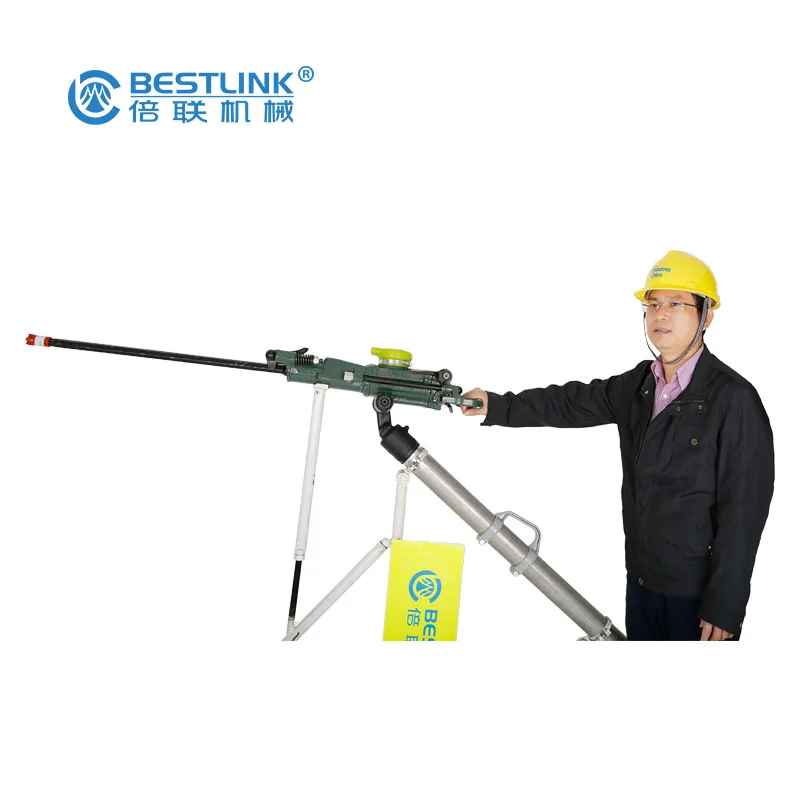

Air leg rock drill products features:
1. Fir for wet drilling in medium-hard or hard rock
2. Grouped control mechanism, quick to start up. with " air on, water on, air off, water off". mechanism, convenient to handle and essy to maintain and repair.
3. Energy-saving and efficient, long service life of parts which are highly interchangeable and reliable performance.
4.taladro&YT28 differ from similar products particularly in its high efficiency strong flushing and powerful torque.
5.Do not allow use low burning point and easy explosion lubricating oil.
Technical Parameters:
| Model | Weight | Length | Impact frequency | Air consumption | Cylinder*stroke | Shank dimension | Drilling depth | Bit dia. |
| TA19 | 18kgs | 604mm | >37HZ | 28 | 60mmx60mm | 22x108mm | 3m | 34-42mm |
| YT28 | 26kgs | 661mm | >37HZ | <81L/s | 80mmx60mm | 22(25)x108mm | 5m | 34-42mm |
| YT27 | 27kgs | 668mm | >39HZ | <57L/s | 80mmx60mm | 22x108mm | 5m | 34-45mm |
| YT29A | 26.5kgs | 659mm | >39HZ | <62L/s | 82mmx60mm | 22(25)x108mm | 5m | 34-45mm |
| YT24C | 24kgs | 628mm | >37HZ | <80L/s | 76mmx60mm | 22x108mm | 5m | 34-42mm |
| TY24 | 24kgs | 678mm | >31HZ | <52L/s | 70mmx70mm | 22(25)x108mm | 5m | 34-42mm |
