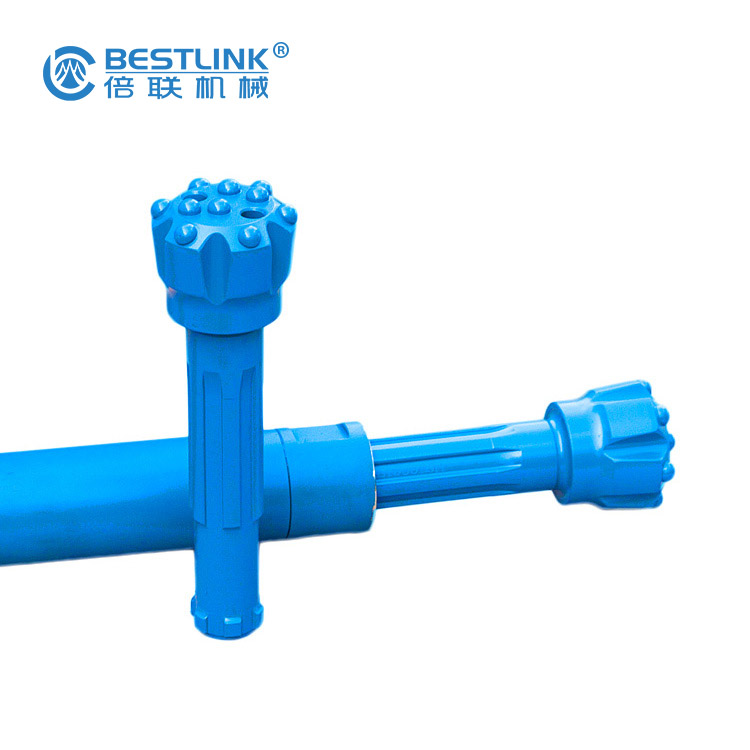

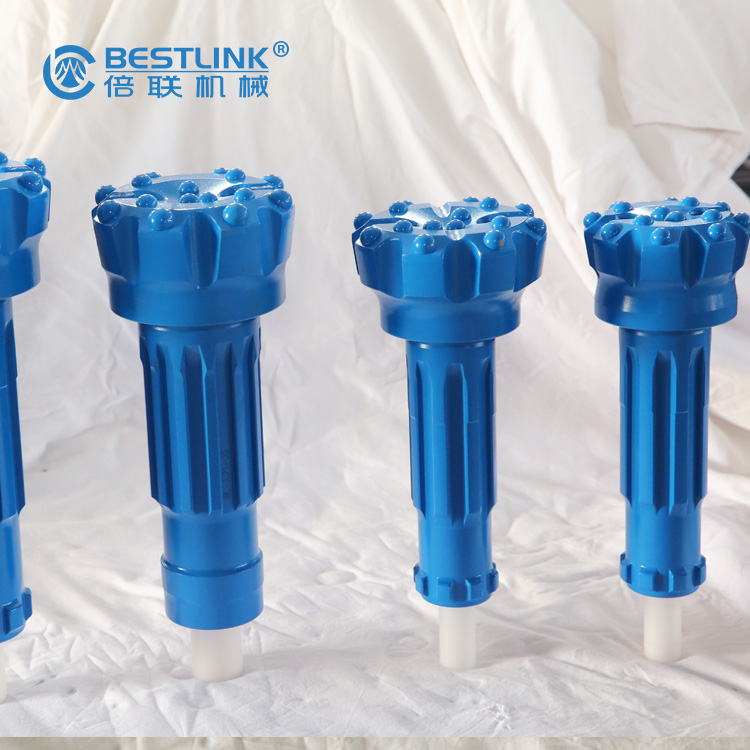

COP DHD MISSION SD QL IR High Air Pressure Pneumatic Drilling DTH Button Bit
Bestlink
Drill and blast engineers and water well contractors trust Bestlink's DTH equipment because of the precision engineering and high standards of drilling efficiency built into each of our hammers and bits.
Product Description:
Pandadrill is one the professional manufacturer and supplier of high performance rock drilling tools like DTH Hammers and Bits. PC Hammers and Bits, DTH drilling pipes and Top Hammer Drilling Tools.
Our tools are widelyused in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.

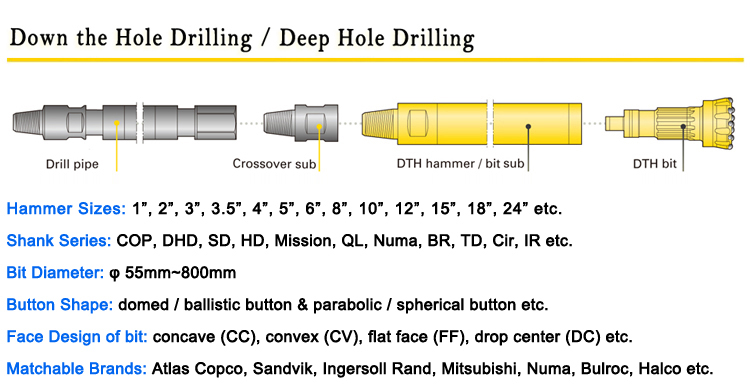

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Competitive Advantage:
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification:
| HAMMER INCH | BIT DIA(MM) | BIT DIA(INCH) | SHANK |
| 1 | 64MM-76MM | 2 1/2"-3" | BR1 |
| 2 | 76MM-90MM | 3"-3 1/2" | BR2/PAD320 |
| 3 | 85MM-105MM | 3 2/5"-4" | BR3/DHD330/COP32/PAD330 |
| 3.5 | 85MM-110MM | 3 2/5"-4 1/3" | DHD3.5/IR3.5/COP34/QL30/PAD3.5 |
| 4 | 105MM-140MM | 4"-5 1/2" | DHD340/COP44/QL40/SD4/MISSION40/PAD340 |
| 5 | 127MM-200MM | 5"-8" | DHD350/COP54/QL50/SD5/MISSION50/PAD350 |
| 6 | 152MM-254MM | 6"-10" | DHD360/COP64/QL60/SD6/MISSION60/PAD360 |
| 8 | 195MM-350MM | 7.2/3"-13 4/5" | DHD380/COP84/QL80/SD8/MISSION80/PAD380 |
| 10 | 254MM-380MM | 10"-15" | SD10/NUMA100/DHD1100/PAD1100 |
| 12 | 305MM-457MM | 12"-18" | SD12/NUMA120/DHD1120/PAD1120 |
