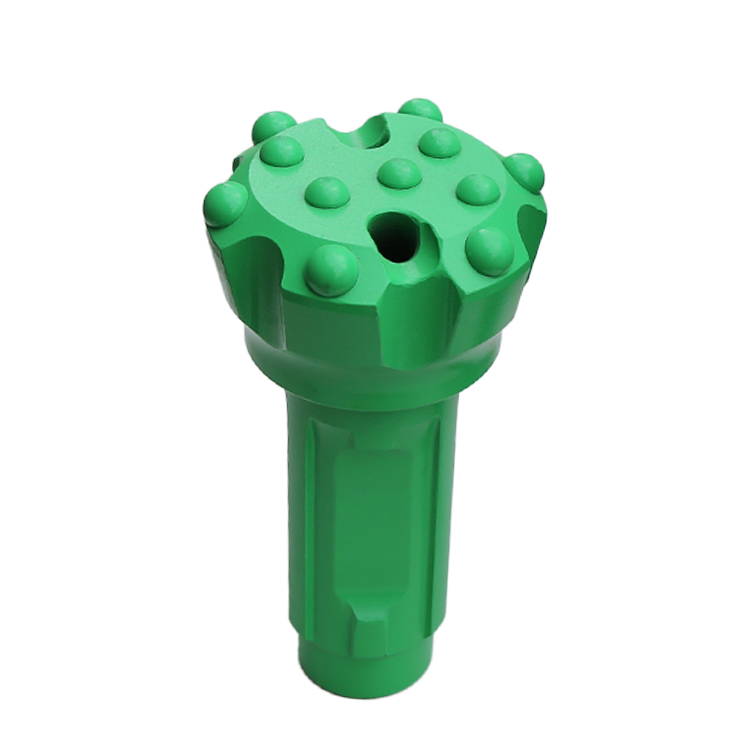

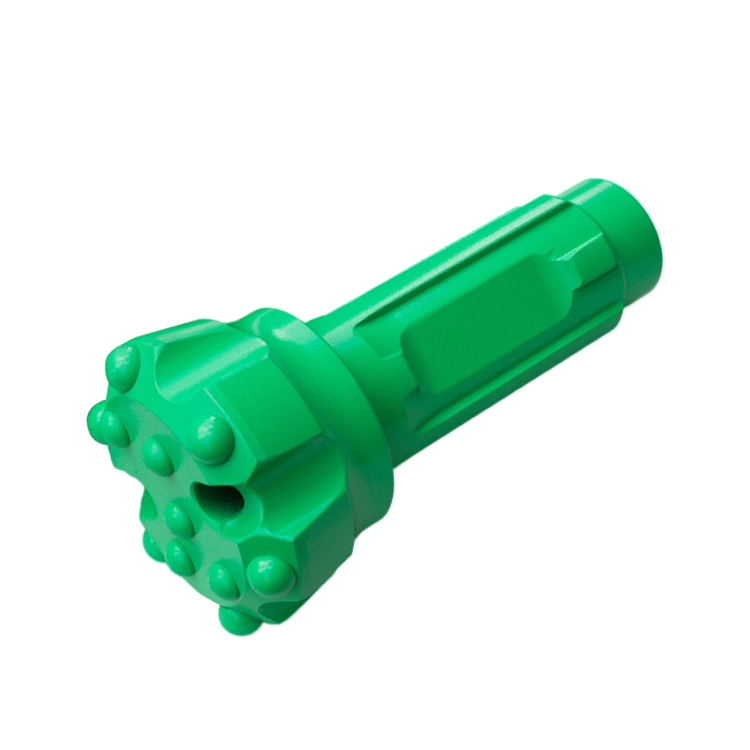

CIR90 Dia. 90mm Mining DTH Hammer Drill Bit
Bestlink
CIR series DTH hammer, a kind of valve-equipped Low-Air-Pressure hammer with single piston, a plate valve and a central exhaust structure. The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance, some high-pressure water may be added into the air for wet rock drilling.
It is mainly featured in:
1. The strong energy of single impact and the low engergy consumption in rock crushing.
2. The weight ratio of piston and bit almost reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and the extended service life of the drilling tool.
3. A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.
4. A check valve device is available to drill holes under water.
The CIR series DTH hammer, an ideal drilling tool, is widely used in such industries relating to energy,transportation,metallurgy,building, etc...

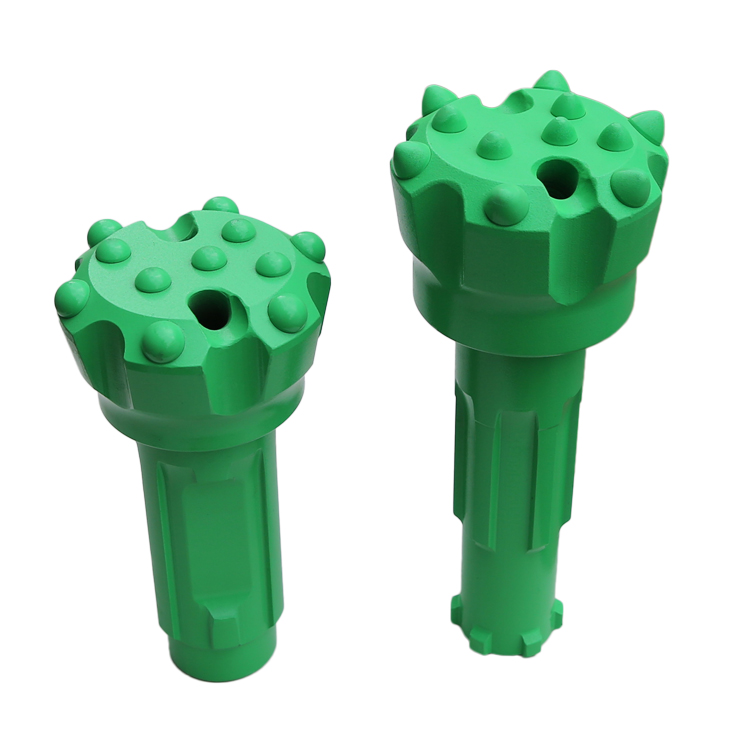

CIR series Low Air Pressure DTH Drilling Button Bit:
 | ||||||
| Hammer Model | Diameter | No.*button dia. (mm) | No. | Weight | ||
| mm | inch | gauge buttons | front buttons | flushing hole | kg | |
| CIR70 | 76 | 3 | 5*Φ12 | 3*Φ12 | 3 | 2.5 |
| CIR90 | 90 | 3 1/2 | 6*Φ14 | 4*Φ12 | 3 | 3.3 |
| 100 | 4 | 6*Φ14 | 5*Φ12 | 3 | 4.2 | |
| CIR110 | 110 | 4 3/8 | 6*Φ14 | 5*Φ14 | 3 | 6.2 |
| 120 | 4 3/4 | 6*Φ14 | 6*Φ13 | 3 | 7.2 | |
| 130 | 5 1/8 | 7*Φ14 | 6*Φ14 | 3 | 8.2 | |
CIR series DTH hammer, a kind of valve-equipped Low-Air-Pressure hammer with single piston, a plate valve and a central exhaust structure. The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance, some high-pressure water may be added into the air for wet rock drilling.
It is mainly featured in:
1. The strong energy of single impact and the low engergy consumption in rock crushing.
2. The weight ratio of piston and bit almost reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and the extended service life of the drilling tool.
3. A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.
4. A check valve device is available to drill holes under water.
The CIR series DTH hammer, an ideal drilling tool, is widely used in such industries relating to energy,transportation,metallurgy,building, etc...
CIR series Low Air Pressure DTH Drilling Button Bit:
| ||||||
| Hammer Model | Diameter | No.*button dia. (mm) | No. | Weight | ||
| mm | inch | gauge buttons | front buttons | flushing hole | kg | |
| CIR70 | 76 | 3 | 5*Φ12 | 3*Φ12 | 3 | 2.5 |
| CIR90 | 90 | 3 1/2 | 6*Φ14 | 4*Φ12 | 3 | 3.3 |
| 100 | 4 | 6*Φ14 | 5*Φ12 | 3 | 4.2 | |
| CIR110 | 110 | 4 3/8 | 6*Φ14 | 5*Φ14 | 3 | 6.2 |
| 120 | 4 3/4 | 6*Φ14 | 6*Φ13 | 3 | 7.2 | |
| 130 | 5 1/8 | 7*Φ14 | 6*Φ14 | 3 | 8.2 | |
