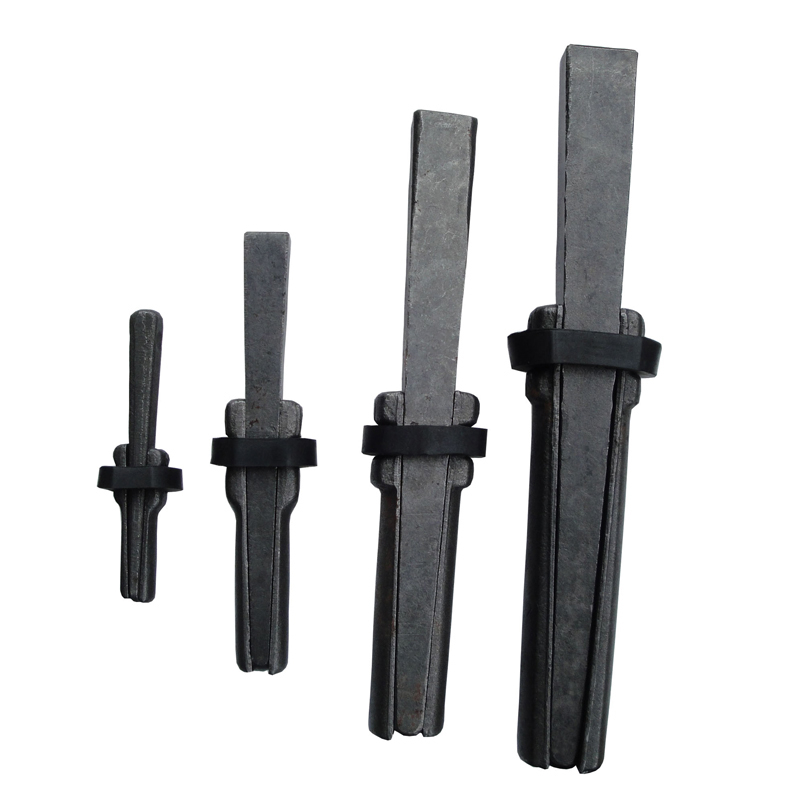

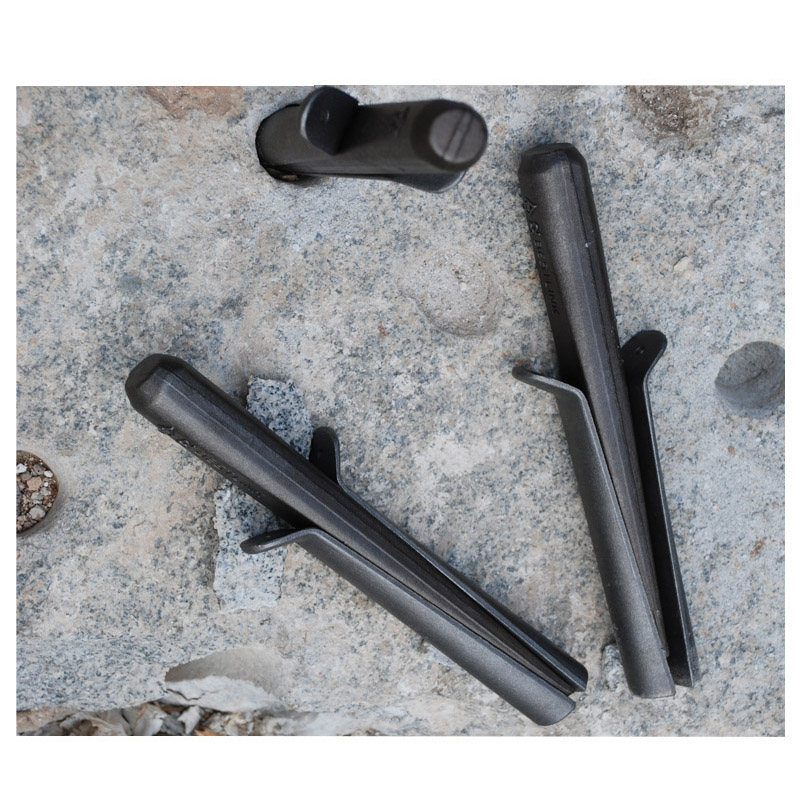

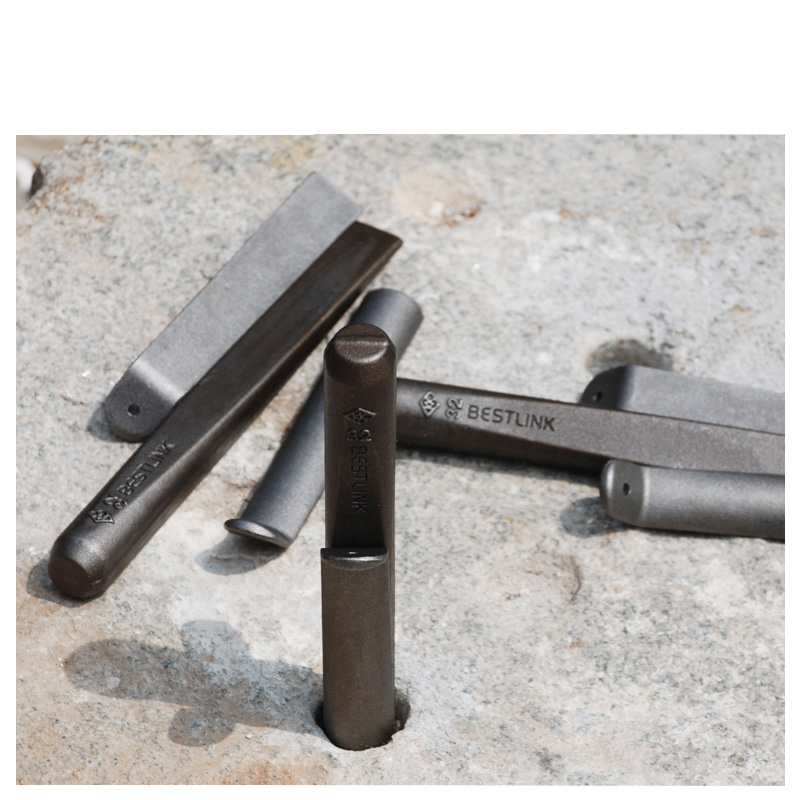

Plug Wedges and Feather Shims Concrete Rock Stone Splitter Hand Tool

Plug Wedges and Feather Shims Concrete Rock Stone Splitter Hand Tool. Wedge and shims is a new practical and economical secondary breaking equipment.Designs by the voussoir principle.
It can release enormous fission strength even in the narrowest holes, the objects will split according to the predetermined direction.

Quantity:
  • Diameter 22mm Rock Splitting Wedge
  • BESTLINK

Plug Wedges and Feather Shims Concrete Rock Stone Splitter Hand Tool

Description:

Wedge and shims is a new practical and economical secondary breaking equipment.Designs by the voussoir principle.

It can release enormous fission strength even in the narrowest holes, the objects will split according to the predetermined direction.



Applications:
Mainly used in mining the stone, secondary breakup of large pieces of ore (metal mining, non-metallic minerals);

Partial and full concrete structures demolition operations;
Natural stone mining, splitting and broking.



Advantages:
Uncomplicated structure, easy to operate, small size, light weight, low cost.
We can design and manufacture according to your enquirement.





Length

Inch

2-1/2"

2-5/8"

2-3/4"

3"

3-3/8"

3-3/4"

4"

mm

64

67

70

76

86

95

100

Hole

size

Inch

3/8"

1/2"

5/8"

5/8"

3/4"

3/4"

7/8"

mm

9.5

13

16

16

19

19

22





Length

Inch

5"

6"

8"

12"

18"

24"

36"

48"

mm

127

152

203

305

457

610

915

1220

Hole

size

Inch

7/8"

1"

1-1/4"

1-3/8"

1-3/8"

1-1/2"

1-1/2"

1-1/2"

mm

22

25

32

35

35

38

38

38





Hand splitter 11.jpgHand splitter 13.jpgHand splitter 14.jpg

 Hand splitter 8.jpg

 Wedge and shims (7)
