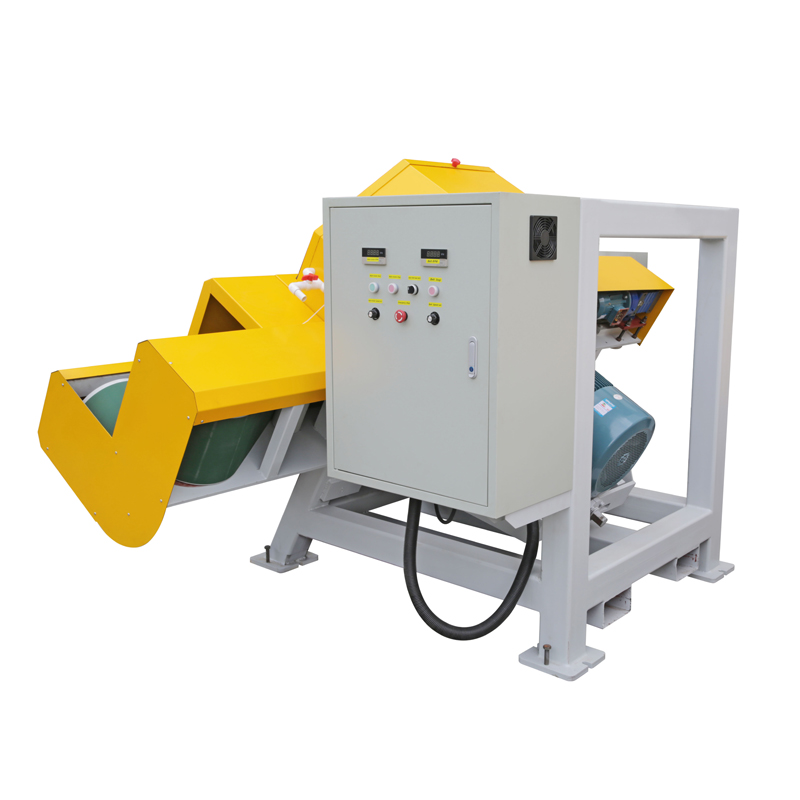

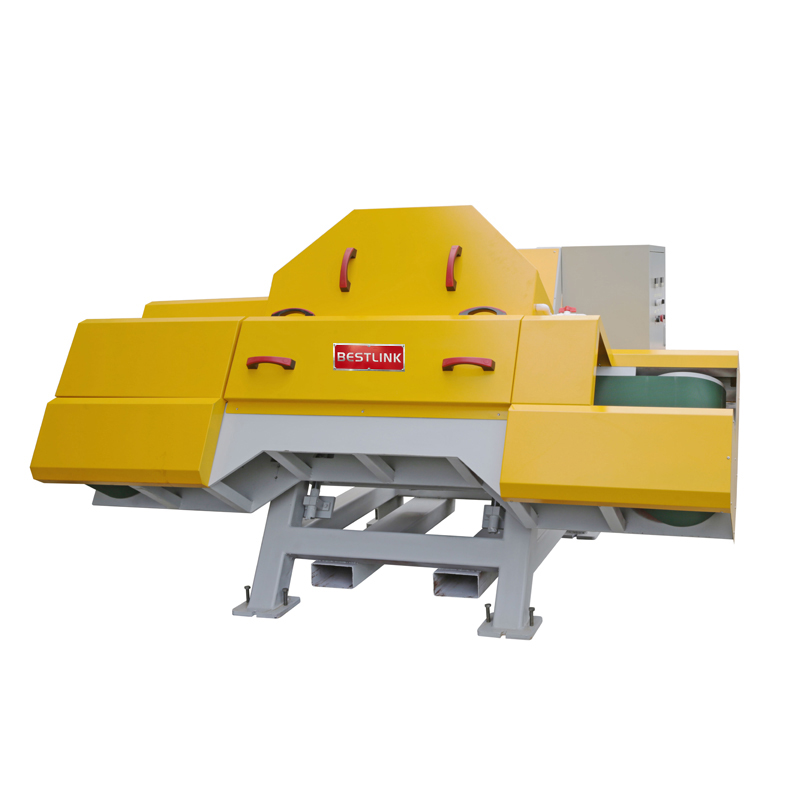

Right Angle (Section) Cutting Machine
BESTLINK
The machine is a monolithic structure with compact structure and convenient installation and transportation.
The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are stepless speed regulation.
The working mode of the machine adopts the continuous cutting mode of the pipeline, which is mainly used for cutting the plane of irregular elliptical stones such as pebbles and rough stones.
Technical parameter for Right Angle (Section) Cutting Machine:
Technical Parameter | 60HP | 30HP | |
Dimensions (L×W×H) | 3700mm×1600mm×1730mm | 3100mm×1600mm×1730mm | |
Machine Weight | 2720kg | 2040kg | |
Main Motor Power | 45kw | 22kw | |
Electricity | 3 Phase, 240/460V | 3 Phase, 240/460V | |
Amperage | 172/86A | 86/43A | |
Water Consumption | 3m⊃3;/h | ||
Blade Size | 1000mm-1200mm | 750mm | |
Blade Speed Standard（Adjustable） | 780rpm | 900rpm | |
Max. Cutting Depth | 300mm | 250mm | |
Conveyor Belt Speed（Adjustable） | 600mm/min-2450mm/mi | ||
