Bestlink Hand-Cutting Machine

This Mosaic chopping machine is Great for cutting marble, stone and strip tile and with high precision into mosaic and micro mosaic.

We have two models, one is manual operation, and the other is electric operation.

Both the mosaic chopping machines are equipped with two blades in hardened steel: the lower one is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.

The mosaic chopping machine comes complete with one replacement blade.


Model No

MS-02M (manual)

MS-12(electric)

Splitting Force

2 tons

12 tons

Max Cutting Width

240 mm

240 mm

Max Cutting height

65 mm

100 mm

Power Supply

0

3.0 kw

Oil Tank

0

30 L

Overal Size

600*450*600 mm

500*600*1600 mm

Net Weight

55 kg

210 kg

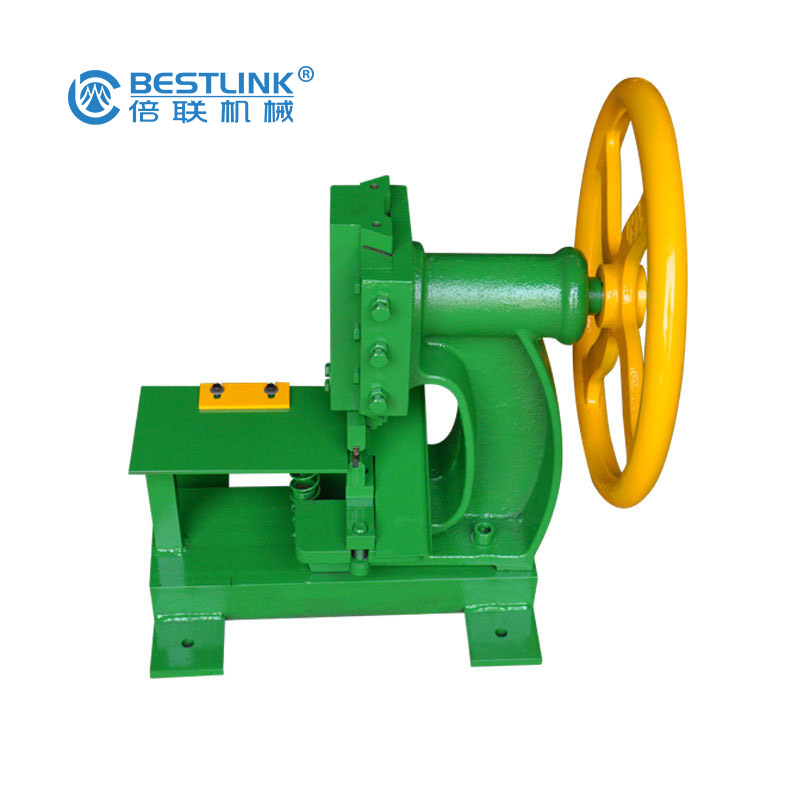

MS-02M

mosaic chopping machine (79)

mosaic chopping machine (77)

MS-12

mosaic chopping machine (25)
