Automatic Electric Driven Button Bits Grinding Machine

Bestlink Manufacturer Automatic Electric Driven Button Bits Grinding Machine EGM3.0
Availability:
Quantity:
Inquire Add to Basket

  • Drill Bit Sharpening Machine EGM3.0

  • BESTLINK

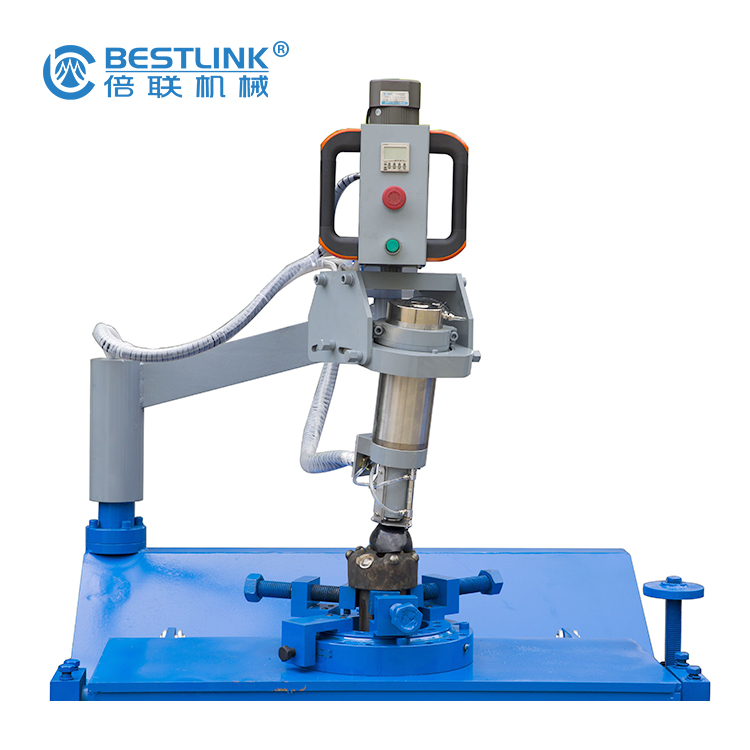

Bestlink Manufacturer Automatic Electric Driven Button Bits Grinding Machine EGM3.0



Working air pressure  5-7bar(100 psi)
Max. Spindle Speed:24000RPM
Max. water pressure  4bar(60 psi)
Water consumption  2-4L/min
Rated power(motor)  3.0KW
Coolant/fushing medium|Water
Water hose diameter  6mm
Weight  200KG
Electric power data | 1 phase 220V 50Hz 10Amps

Xiamen Bestlink Electric Button Bit Grinder drill bit sharpening machines










Hand held pneumatic button bits grinder BTON200

Rotation speed:20000RPM

Motor power: 1.5 KW

Work pressure: 5-7 bar (100 psi)

Air consumption: 2.0 m3 / min (50ft3/min)

Max. water pressure: 4 bar (60 psi)

Air hose diameter: 19 mm

Water hose diameter: 6mm

Weight excl. packaging: 3.0 Kg

Weight incl. packaging: 3.4 Kg

Sound level: 92 dB(A)

Xiamen Bestlink Electric Button Bit Grinder drill bit sharpening machinesXiamen Bestlink Electric Button Bit Grinder drill bit sharpening machines



Pneumatic Semi-automatic button bits grinder BTON500

Rotation speed:20000 rpm

Motor Power: 1.5 KW

Work air pressure: 5-7 bar (100 psi)

Air consumption: 2.2 m3 / min (80ft3/min)

Max. water pressure: 4 bar (60 psi)

Air hose diameter: 19 mm

Water hose diameter: 6 mm

Weight excl. packaging:120.0 Kg

Weight incl. packaging: 130.0 Kg

Transport dimensions:500*500*1400mm

Sound level: 92 dB(A)

Xiamen Bestlink Electric Button Bit Grinder drill bit sharpening machinesXiamen Bestlink Electric Button Bit Grinder drill bit sharpening machines





Pneumatic robot arm button bits grinder AGM18

Rotation speed:20000 rpm

Motor power: 1.5 KW

Work air pressure: 5-7 bar (100 psi)

Air consumption: 2.2 m3 / min (80ft3/min)

Max. water pressure: 4 bar (60 psi)

Air hose diameter: 19 mm

Water hose diameter: 6 mm

Weight excl. packaging:330.0 Kg

Weight incl. packaging: 350.0 Kg

Transport dimensions: 1600*700*1500cm

Sound level: 92 dB(A)

Xiamen Bestlink Electric Button Bit Grinder drill bit sharpening machines
