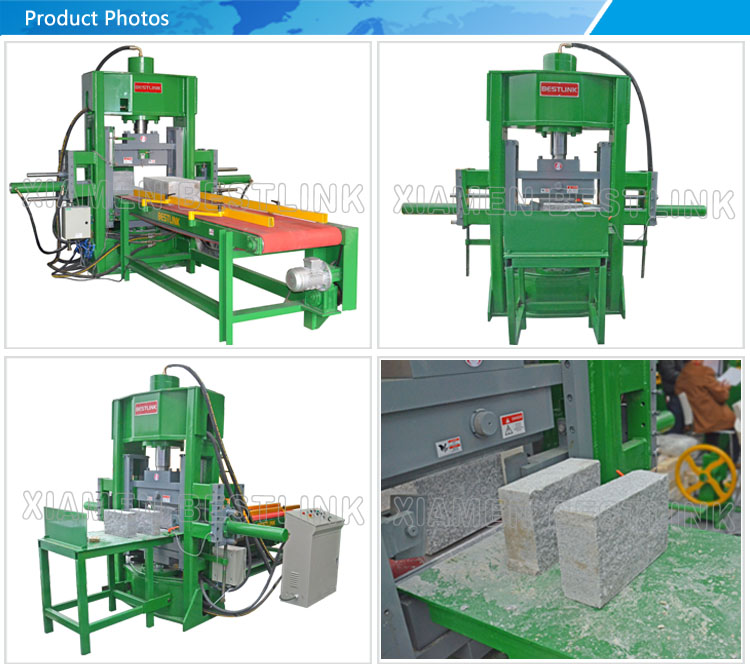

stone splitting machine
BESTLINK
Hydraulic operated stone splitting machines can be use for every kind of stone. The machinery is primarily designed for processing natural-face stone, kerb stone, small building stone, border stone, paving stone, wall stone, semi-finished products of small cube stone, etc.
The production line of stone machinery be supplied in many sizes and can be adapted to many uses in the stone industry. Paving stone and tile cutters will want to see the Igloo Model. Ease of operation and fast splitting are sure to increase production compared to underpowered splitters.
For large block splitting operations encountered in the stone industry, integrated conveyor systems and long blades and crushing power make splitting of large blocks an easy project. The well-know brand breaking technology, along with the absolute silence of the new pumps, completed by the high up/down motion speed of the piston ( up to 260 mm/sec. for PSM 320- 54 ton- type machines).
We provide several models for your various choice, like BRT20T, BRT40T, etc. Of course, we also can design a special model based on your detailed requirement.
Model no. | BRT320-1200*800 | BRT160T-500*550 | BRT70- 400*350 | BRT40T-240*320 | BRT20T-160*180 |
splitting pressure | 320T | 160T | 70T | 40T | 20T |
max. splitting width | 1200mm | 500mm | 400mm | 240mm | 160mm |
max. splitting height | 800mm | 550mm | 350mm | 320mm | 180mm |
adaption of upper | 36*20mm | 30*15mm | 20*10mm | 15*10 | 10*7mm |
rated power | 22KW | 15KW | 11KW | 11KW | 7.5KW |
rated voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
electric current | 42.5A | 30A | 22.6A | 22.6A | 15A |
main oil | Φ400/Φ280-850 | Φ280/Φ200-600 | Φ200/Φ140-360 | Φ160/Φ110-340 | Φ110/Φ80-200 |
oil advanced speed | 40mm/s | 76.6mm/s | 108mm/s | 167mm/s | 96mm/s |
overall size | 2370*1500*3840 | 1970*1200*3300 | 1500*1200*2520 | 1260*1000*2300 | 1145*1000*2030 |
weight | 8000KG | 5300KG | 3200KG | 2900KG | 2300KG |
BRT50T-MF & BRT100T-MFThe machine is used to split concrete block and saw face natural stone; it is equipped with four blades to ensure a perfect split every time on the four sides of the product.
Model | BRT20T 600*300 MF | BRT50T 400*200 MF | BRT70T 600*300 MF | BRT100T 600*300 MF | BRT120T 1000*300 MF |
Splitting force(tons) | 20 | 50 | 70 | 100 | 120 |
Max splitting width(mm) | 600 | 400 | 600 | 600 | 1000 |
Max splitting height(mm) | 300 | 200 | 300 | 300 | 300 |
Electric power(kw) | 7.5 | 11 | 11 | 11 | 15 |
Electric current (A) | 15 | 22 | 22 | 22 | 30 |
Oil flux (L/min.) | 61 | 160 | 185 | 192 | 210 |
Oil tank cubage (L) | 320 | 450 | 550 | 550 | 780 |
Overall size(L*W*H) | 1750*3200*1960 | 2570*1140*2490 | 2770*1140*2490 | 2770*1140*2490 | 3300*1200*2850 |
Weight(kg) | 1200 | 2500 | 3200 | 3800 | 4200 |
Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
