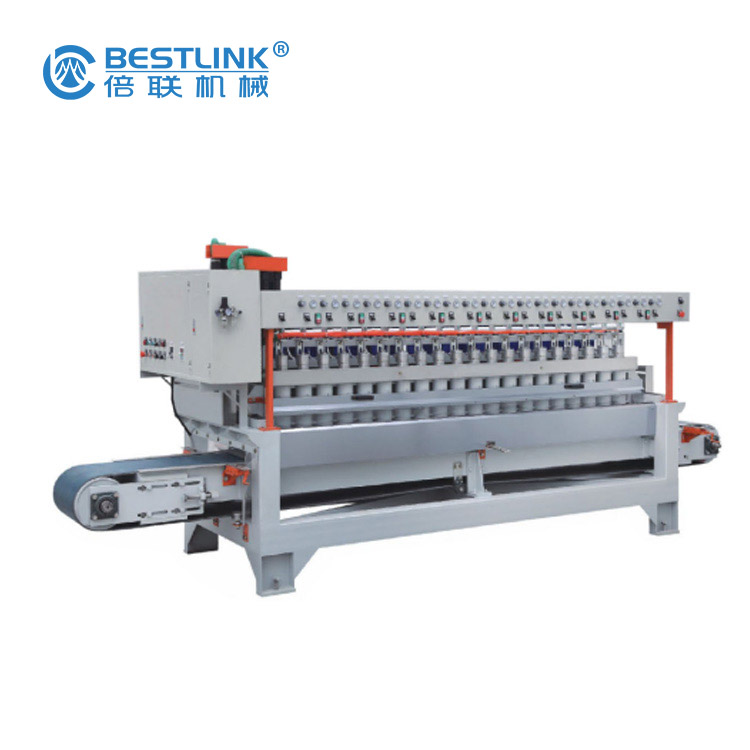

Marble Granite Mosaic Polishing Machine Use for Mosaic Particle & Panel

Marble Granite Mosaic Polishing Machine Use for Mosaic Particle & Panel (width 400mm, 12heads)
The 300/400/600/800 series full automatic polishing machines are widely used in mosaic production line.

Features & Advantages:

*Can work on mosaic peices /finished mosaic with net/ tiles under 5cm thickness

*Can produce polished surface/honed surface/antique surface

*Can work on granite/marble ndstone/ceramic

*No damage for the surace

*Reasonable design/Easy to operate

* High automation, high efficience and stable products quality



Machine technical datas

Polishing heads: 12pcs

Width of belt: 400mm

Polished section diameter: 125mm

Max. polishing size: 350mm below

Grinding head power:  3*6kw

Belt motor power: 3kw

Swing motor power: 0.75kw

Max. polishing thickness: 50mm

Polishing speed:  1000-6000mm/min

Total weight: 1600kgs

Total power:  21.75kw

Overall dimensions: 3800*1800*2000mm
