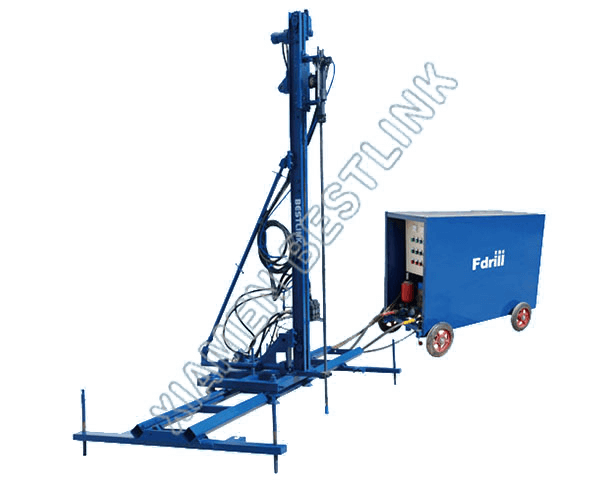

Hydraulic mobile rock drill
FDRILL hydraulic mobile rock drill is ideal both for primary cutting and sectioning, squaring of blocks. It is designed for vertical and horizontal drilling. It is equipped with 1 or 2 rock drills on the same column. It meets all quarrying requirements with high speed 0.7-1.0m/min, while guaranteeing maximum efficiency, with high accuracy and minimum maintenance costs.
| Technical specifications of BH26 | |
Overall dimension | 600*173*190mm |
Hole Diameter | Φ32-50mm |
Drilling depth | 9m |
Drilling speed | 250-300rpm |
Working oil pressure | 15-17Mpa |
Percussion oil flux | 30-35I/min |
Impact energy | 55-60J |
Impact frequency | 55-60Hz |
Torque force | 50-55Nm |
Power | 11kw |
Water or air pressure for dust flushing | 0.3-0.5Mpa/0.5-0.7Mpa |
Air consumption for dust flushing | 16.5L/s |
Drill steel shank | Hex22×108mm |
Hydraulic power station | |
Total electric power | 30kw |
Voltage | 380V |
Oil tank | 100L |
weight | 650kg |
Size L×W×H: 1500×1000×1400mm | |
Fdrill | |
Rock drill type | BH26 |
Track length | 4m |
Starting drill steel | 2.4m |
Weight | 450kg |
Up-down drive motor/left-right driver motor | |
Percussion oil flux | 8L/min |
pressure | 4-6mpa |
