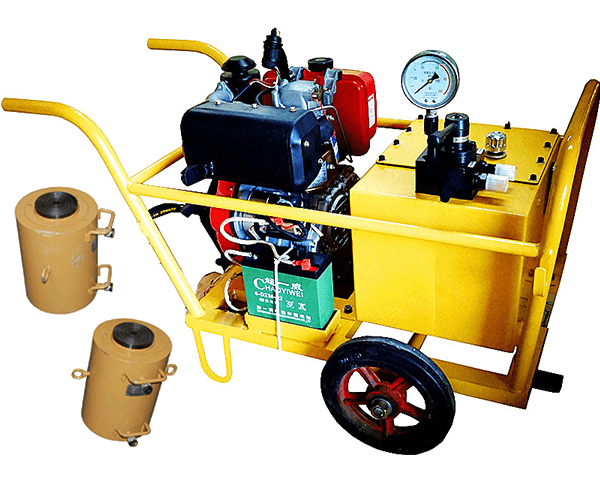

Hydraulic jack
Hydraulic jack machine is specially designed according to the characteristics of stone quarrying.
Mainly used for moving, overturning large size rocks.
It is indispensable and widely used for quarrying.
Note: Each standard complete set including 1 pump unit and 2 pcs of cylinders.
| item model | HJ-100A | HJ-200A | HJ-320A |
| hydraulic pump motor | 1.5KW | 1.5KW | 2.2KW |
| position stroke | 200mm | 200mm | 200mm |
| hydraulic pressure | >63Mpa | >63Mpa | >63Mpa |
| mnominal pressure | 100T | 200T | 300T |
| pipe length | 15m | 15m | 15m |
| oil tank capacity | 40L | 40L | 40L |
| weight | 190KG | 240KG | 350KG |
| ※Pump pack with electric or diesel engine | |||
Hydraulic jack
Hydraulic jack machine is specially designed according to the characteristics of stone quarrying.
Mainly used for moving, overturning large size rocks.
It is indispensable and widely used for quarrying.
Note: Each standard complete set including 1 pump unit and 2 pcs of cylinders.
| item model | HJ-100A | HJ-200A | HJ-320A |
| hydraulic pump motor | 1.5KW | 1.5KW | 2.2KW |
| position stroke | 200mm | 200mm | 200mm |
| hydraulic pressure | >63Mpa | >63Mpa | >63Mpa |
| mnominal pressure | 100T | 200T | 300T |
| pipe length | 15m | 15m | 15m |
| oil tank capacity | 40L | 40L | 40L |
| weight | 190KG | 240KG | 350KG |
| ※Pump pack with electric or diesel engine | |||
