EBQ3 Drill Bits Grinder, Button Bit Sharpening Machine

EBQ3 Drill Bits Grinder, Button Bit Sharpening Machine
Availability:
Quantity:
Inquire Add to Basket

  • EBQ3 Drill Bits Grinder, Button Bit Sharpening Machine

  • BESTLINK

EBQ3 Drill Bits Grinder, Button Bit Sharpening Machine

EBQ3 button bits grinder


Maximum height of drill bit 650 mm
Maximum diameter of drill bit 178 mm
Minimum distance between buttons 3.5 mm
Output, spindle motor 3.2 kW
Output, table drive motor 0.3 kW
Output, cooling-fluid pump motor 0.06 kW
Voltage, working lights (40 W E27) 24 V
Air pressure, minimum 80 psi / 5,5 bar
Air pressure, maximum 101 psi / 7 bar
Air consumption 40 l/min
Speed, spindle (50 Hz) 18,000 r/min
Speed, table (50 Hz) 0-60 r/min
Capacity of cooling-fluid tank 25 l
Weight, exclusive of packaging 345 kg
Noise level during grinding* 96.5 dB(A)
Sound power level during grinding** 101 dB(A)
Vibration level during grinding*** < 2.5 m/s

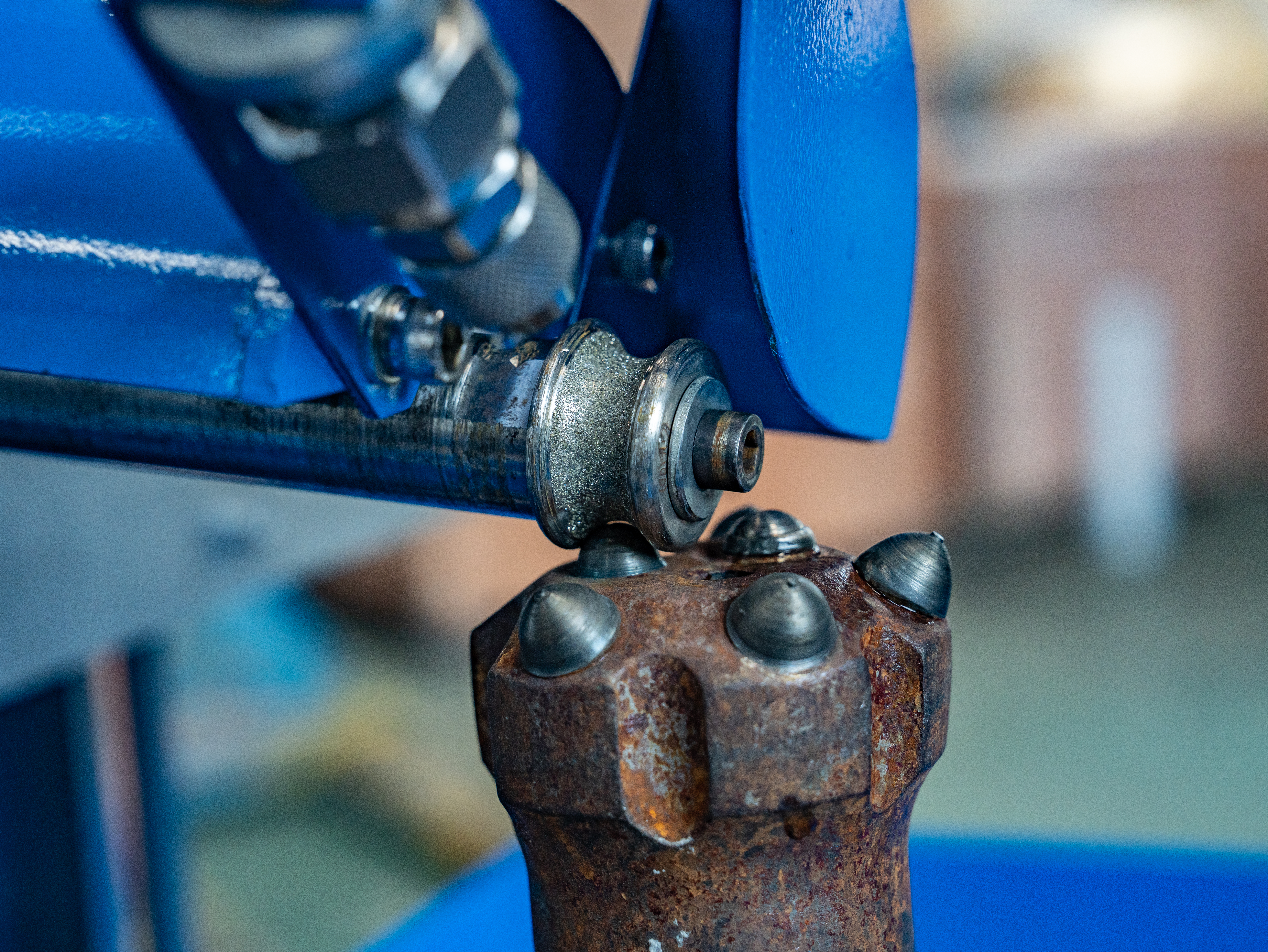

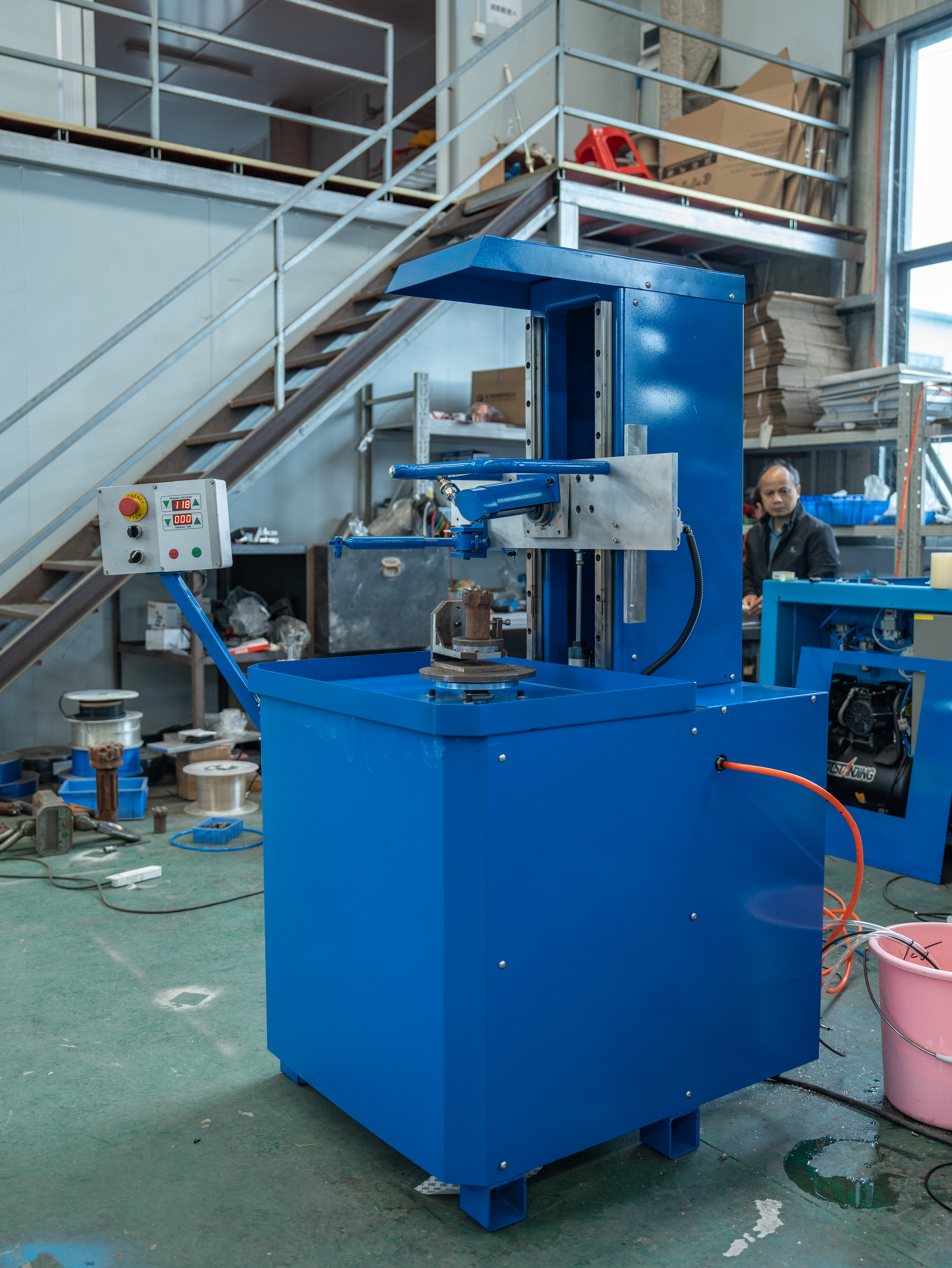

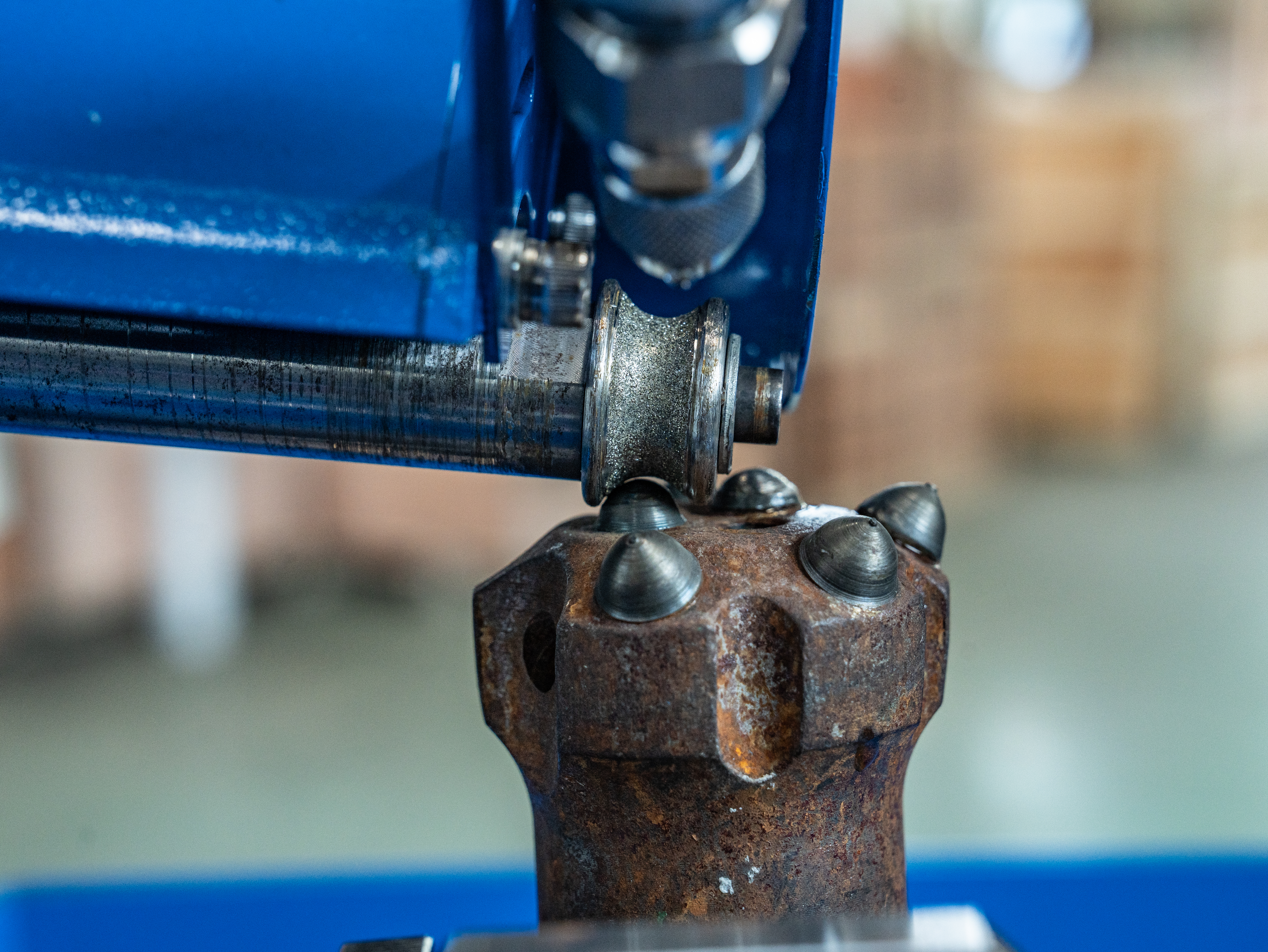

Bestlink button bits grinding machineBestlink button bits grinding machineBestlink button bits grinding machine

for more product details,pls contact Richard Chen at:

WhatsApp/Tel/Wechat : +86 13600966313

Skype: chenlaiyou

E-mail: info@quarryingtools.com          info@split-stone.com
