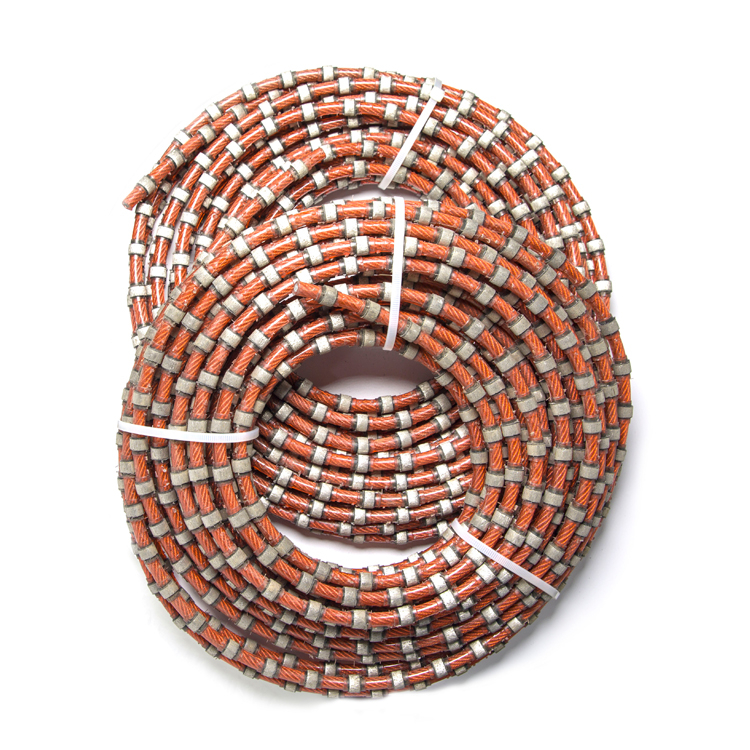

Diamond Wire Saw Rope
BESTLINK
Diamond wire used for marble quarry which canvastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.
Wire saw for granite quarrying
| Bead dia. (mm) | Model | Fixed by | Beads /m | Remark | Cutting material | Line speed (m/s) | Efficiency (m2/h) | Life time (m2/m) |
| Φ11 | RGW10 | High Performance Rubber | 40 | Sintered beads | Soft granite | 22-28 | 4-8 | 10-20 |
| Mid-hard granite | 20-24 | 2-5 | 7-15 | |||||
| Φ11.5 | GRW15 | Hard granite | 18-22 | 1-3 | 5-8 | |||
High abrasiveness | 26-30 | 4-8 | 8-15 |
Wire saw for marble quarrying
| Bead dia. (mm) | Model | Fixed by | Beads /m | Remark | Cutting material | Line speed (m/s) | Efficiency (m2/h) | Life time (m2/m) |
| Φ10.5 | RMW05 | High Performance Rubber | 37 | Sintered beads | Soft marble | 25-35 | 8-12 | 25-45 |
| Φ11 | RMW10 | 40 | medium hard marble | 25-35 | 6-10 | 15-25 | ||
| Φ11.5 | RMW15 | Hard marble | 20-30 | 5-9 | 10-20 |
Diamond wire used for marble quarry which canvastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.
Wire saw for granite quarrying
| Bead dia. (mm) | Model | Fixed by | Beads /m | Remark | Cutting material | Line speed (m/s) | Efficiency (m2/h) | Life time (m2/m) |
| Φ11 | RGW10 | High Performance Rubber | 40 | Sintered beads | Soft granite | 22-28 | 4-8 | 10-20 |
| Mid-hard granite | 20-24 | 2-5 | 7-15 | |||||
| Φ11.5 | GRW15 | Hard granite | 18-22 | 1-3 | 5-8 | |||
High abrasiveness | 26-30 | 4-8 | 8-15 |
Wire saw for marble quarrying
| Bead dia. (mm) | Model | Fixed by | Beads /m | Remark | Cutting material | Line speed (m/s) | Efficiency (m2/h) | Life time (m2/m) |
| Φ10.5 | RMW05 | High Performance Rubber | 37 | Sintered beads | Soft marble | 25-35 | 8-12 | 25-45 |
| Φ11 | RMW10 | 40 | medium hard marble | 25-35 | 6-10 | 15-25 | ||
| Φ11.5 | RMW15 | Hard marble | 20-30 | 5-9 | 10-20 |
