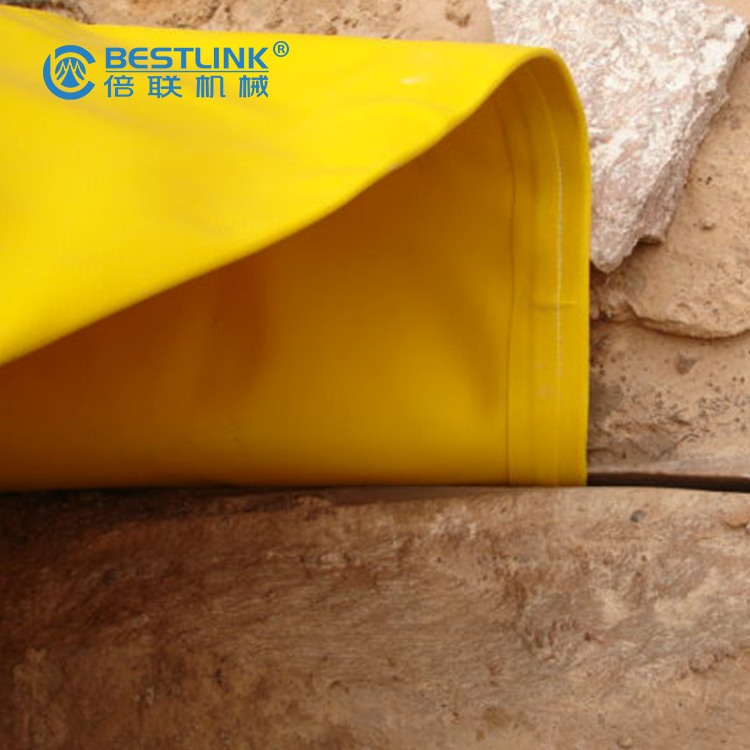

2m*2m Block overturning cushion
BESTLINK

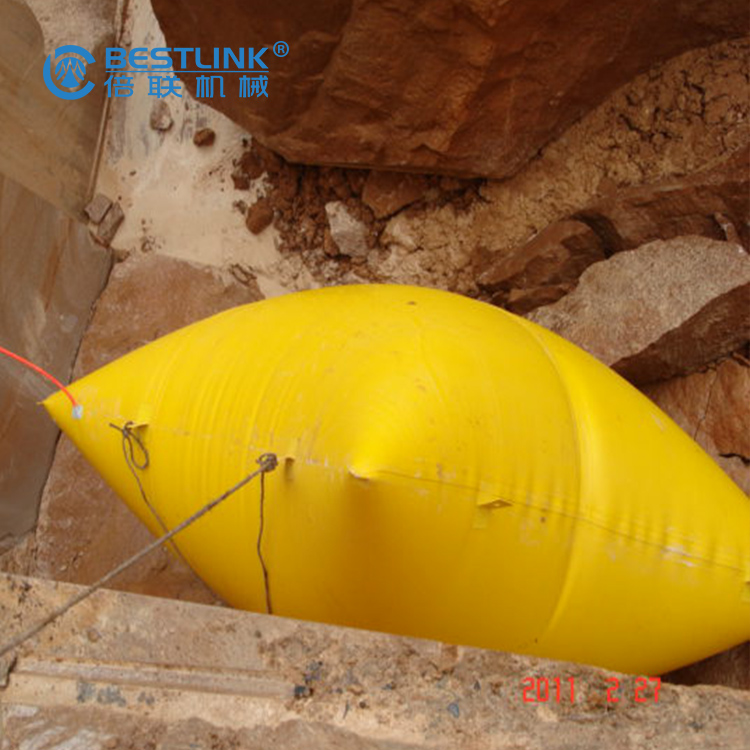

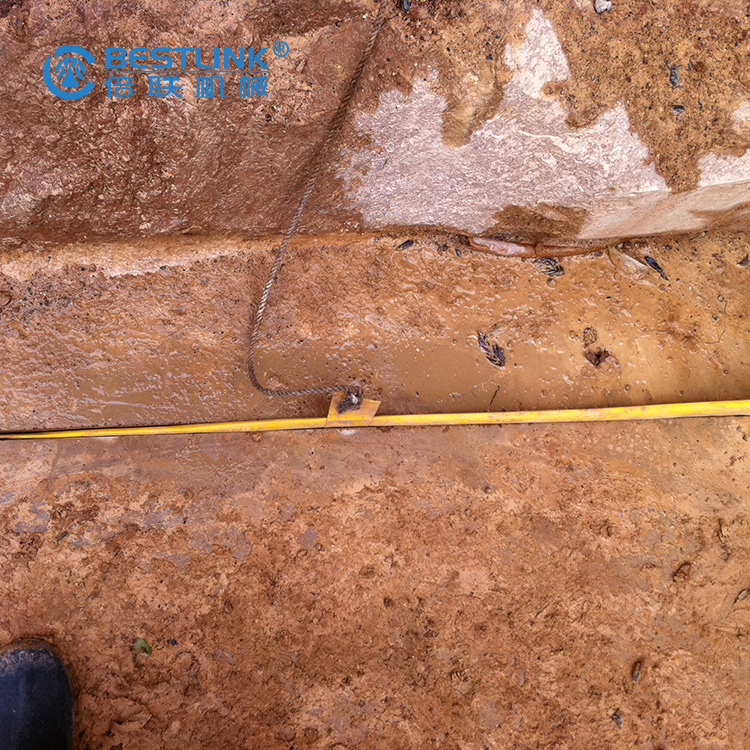

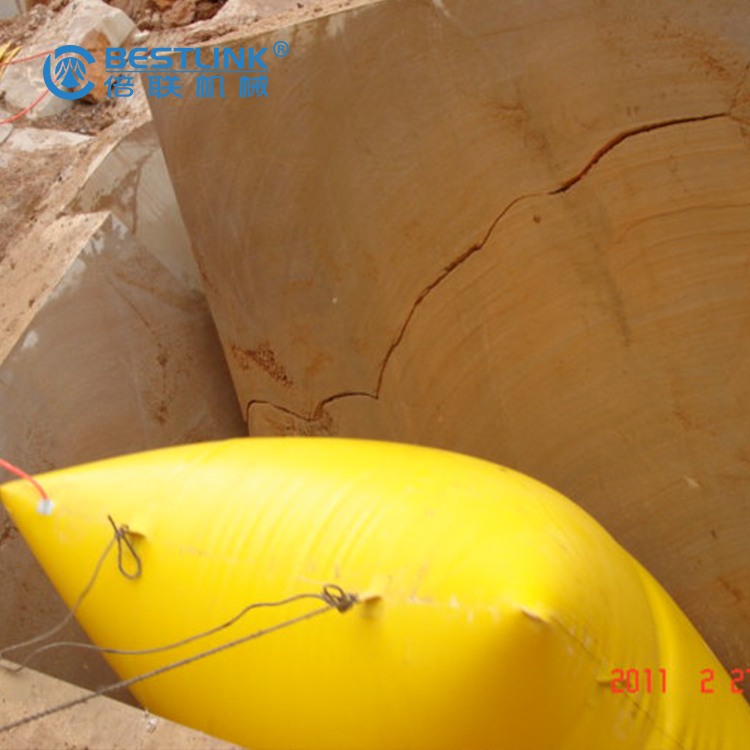

Be used exclusively in placing in the slot cut by diamond wire saw and then pushing down the block. With the forceful thrust,it can repeatedly used.
We always keep innovating and improving to be the leader of pushing air bag products. Our unique design and advanced tachnique make it easier to put the air bags into the gap after diamond wire saw cutting.
Through our experiment and co-operation with hundreds of quarries all over the world, bringing in Italian advanced production euiqpments and super level raw material, especially adopting our new technology, Bestlink made pushing air bag has got big progress on the quality. With same thickness less than 8mm, but more powerful and safe in long term use.
Specifications:
| Size(mm) | Power (ton) | Pushing Distance | Net Weight(kg) |
| 1000x1000 | 50 | 600mm | 3.6 |
| 1000x1500 | 75 | 650mm | 5.2 |
| 1000x2000 | 100 | 660mm | 6.8 |
| 1500x1500 | 115 | 850mm | 7.2 |
| 2000x1500 | 150 | 940mm | 10 |
| 1800x1800 | 165 | 950mm | 11 |
| 2000x1800 | 180 | 970mm | 11.8 |
| 2000x2000 | 200 | 1100mm | 12.8 |
| 2000x2200 | 220 | 1150mm | 13.2 |
| 1600*2800 | 224 | 980mm | 14.5 |
| Control Panel | air pressure 0-6bar | 4 | |
Customized sizes are available.
Be used exclusively in placing in the slot cut by diamond wire saw and then pushing down the block. With the forceful thrust,it can repeatedly used.
We always keep innovating and improving to be the leader of pushing air bag products. Our unique design and advanced tachnique make it easier to put the air bags into the gap after diamond wire saw cutting.
Through our experiment and co-operation with hundreds of quarries all over the world, bringing in Italian advanced production euiqpments and super level raw material, especially adopting our new technology, Bestlink made pushing air bag has got big progress on the quality. With same thickness less than 8mm, but more powerful and safe in long term use.
Specifications:
| Size(mm) | Power (ton) | Pushing Distance | Net Weight(kg) |
| 1000x1000 | 50 | 600mm | 3.6 |
| 1000x1500 | 75 | 650mm | 5.2 |
| 1000x2000 | 100 | 660mm | 6.8 |
| 1500x1500 | 115 | 850mm | 7.2 |
| 2000x1500 | 150 | 940mm | 10 |
| 1800x1800 | 165 | 950mm | 11 |
| 2000x1800 | 180 | 970mm | 11.8 |
| 2000x2000 | 200 | 1100mm | 12.8 |
| 2000x2200 | 220 | 1150mm | 13.2 |
| 1600*2800 | 224 | 980mm | 14.5 |
| Control Panel | air pressure 0-6bar | 4 | |
Customized sizes are available.
