Pneumatic Hammer Splitter
BESTLINK

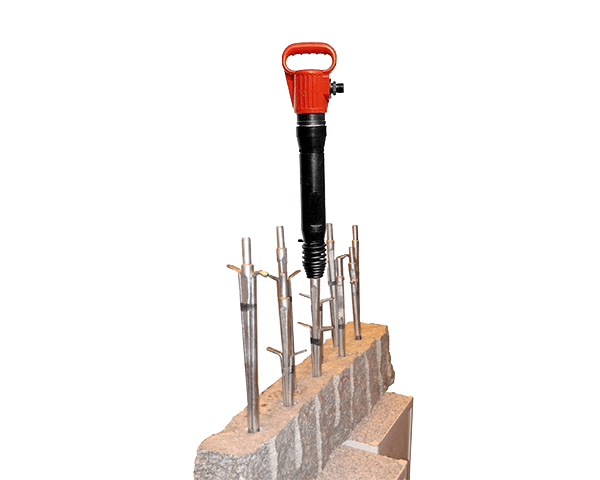

Pneumatic splitter is also called pneumatic hammer, air hammer, pick hammer, etc.
This kind of machine is designed for block secondary splitting or squaring specially.
It can be instead of the dynamite blasting or traditional manual splitting device completely.
It can be widely used for reinforced concrete breaking or removing, such as the construction building part demolition, bridge dismantling, demolishing underwater etc.
One complete machine including a pneumatic hammer and one set of forge plug and feathers(3parts).
Plug and feathers: for hole diameter 20-38mm,more size are available according to your special request.
| Model | Working pressure | Air consumption | Length | Gross weight | Packaging size | |
MPa | Bar | L/s | (mm) | (Kg) | (L×W×H)(mm) | |
HG15 | 0.5 | 5 | ≤23 | 600 | 12.5 | 570×180×110 |
Wedge sizes:
Length*hole diameter(mm) | weight (kg) |
190*Φ20mm | 0.8 |
220*Φ24mm | 1.0 |
270*Φ32mm | 1.8 |
325*Φ38mm | 2.5 |
