Water based DTH button bit for COP/SD/DHD/IR/Mission/QL/BR/CIR

Views: 6 Author: Site Editor Publish Time: 2020-04-10 Origin: Site

Water based DTH button bit for COP/SD/DHD/IR/Mission/QL/BR/CIR

Product Name: Water based DTH button bit for COP/SD/DHD/IR/Mission/QL/BR/CIR

Description: DTH button bit are used for blast hole drilling.Working with DTH hammer, mainly applied in Mining, Marble quarry or well drilling and other construction projects.

Material: High quality carbide + High quality carbon steel

MOQ: No requirement for testing and trial order

Compatibility Series: COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc

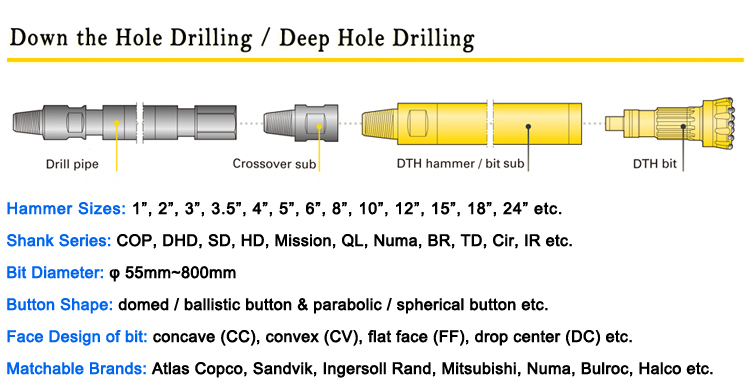

dth hammer bit

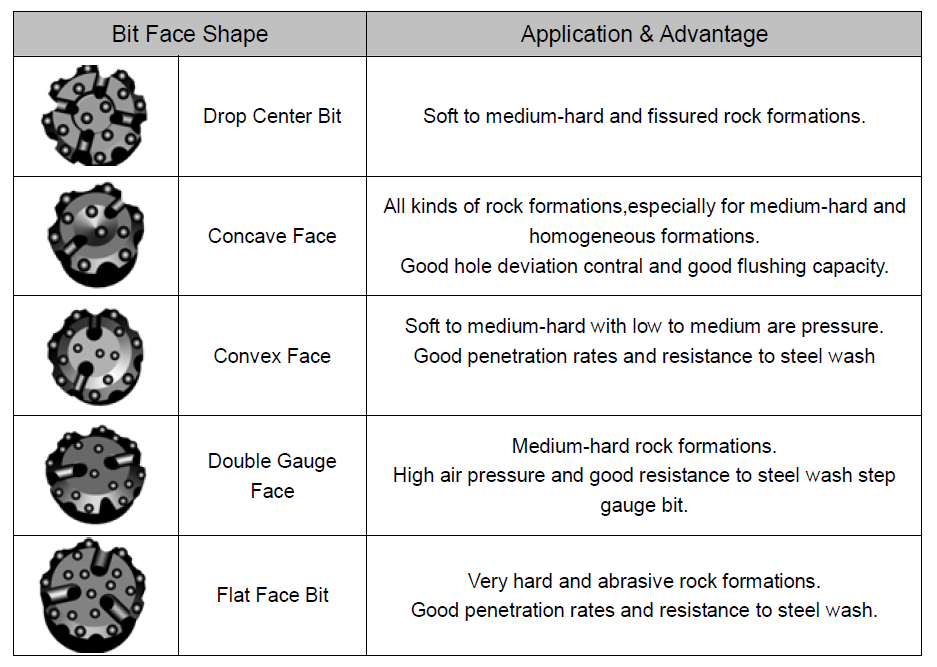

Bit-Face-Shape 1

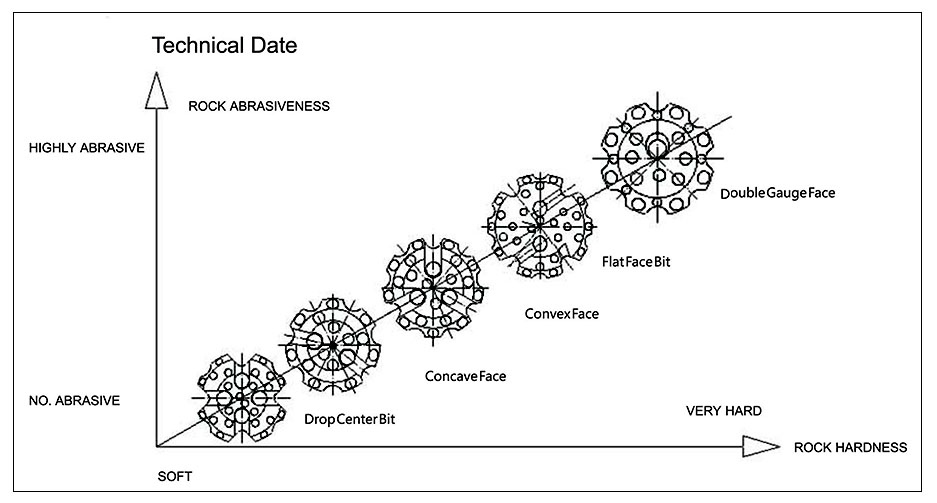

Bit-Face-Shape 2

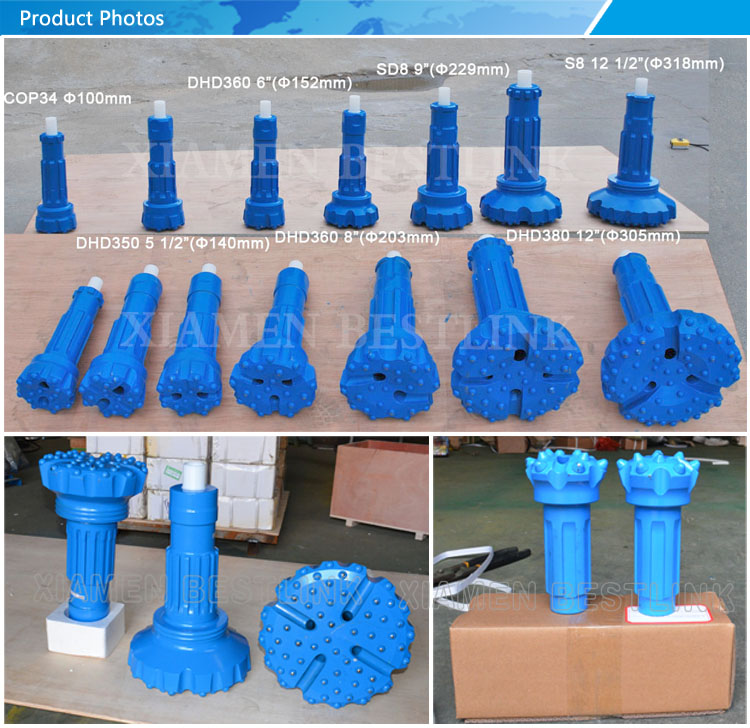

Product Photos for DTH button bit

Hammers	Bit Shank	Connection Thread	Suitable bit	Working pressure	Air consumption
1-3" Middle-low pressure DTH hammers	BR1 BR2 BR3	RD40 box RD50 box API 2 3/8" Reg	Φ64-Φ76mm Φ70-Φ90mm Φ90-Φ110mm	0.7-1.75Mpa	0.7 Mpa	4.5 m3/min
					1.0 Mpa	4 m3/min
					1.4 Mpa	5 m3/min
3" hammers	DHD3.5 COP32/COP34 M30	API 2 3/8"Reg	Φ90-Φ110mm	1.0-1.5Mpa	1.0 Mpa	4.5 m3/min
					1.5 Mpa	9 m3/min
4" hammers	DHD340 COP44 QL40 SD4 M40	API 2 3/8"Reg	Φ105-Φ130mm	1.0-2.5Mpa	1.0 Mpa	6 m3/min
					1.8 Mpa	10 m3/min
					2.4 Mpa	15 m3/min
5" hammers	DHD350 COP54 QL50 SD5 M50	API 2 3/8"Reg API 3 1/2"Reg	Φ130-Φ156mm	1.0-2.5Mpa	1.0 Mpa	9 m3/min
					1.8 Mpa	15 m3/min
					2.4 Mpa	23 m3/min
6" hammers	DHD360 COP64 QL60 SD6 M60	API 3 1/2"Reg	Φ152-Φ203mm	1.0-2.5Mpa	1.0 Mpa	10 m3/min
					1.8 Mpa	20 m3/min
					2.4 Mpa	28.5 m3/min
8" hammers	DHD380 COP84 QL80 SD8 M80	API 4 1/2"Reg	Φ200-Φ279mm	1.0-2.5Mpa	1.0Mpa	15m3/min
					1.8Mpa	26m3/min
					2.4Mpa	34m3/min
10" hammers	SD10 NUMA100	API 6 5/8"Reg	Φ254-Φ330mm	1.0-2.5Mpa	1.0Mpa	22m3/min
					1.8Mpa	40m3/min
					2.4Mpa	55m3/min
12" hammers	DHD1120 SD12 NUMA120 NUMA125	API 6 5/8"Reg	Φ305-Φ381mm	1.0-2.5Mpa	1.0Mpa	30m3/min
					1.8Mpa	56m3/min
					2.4Mpa	78m3/min

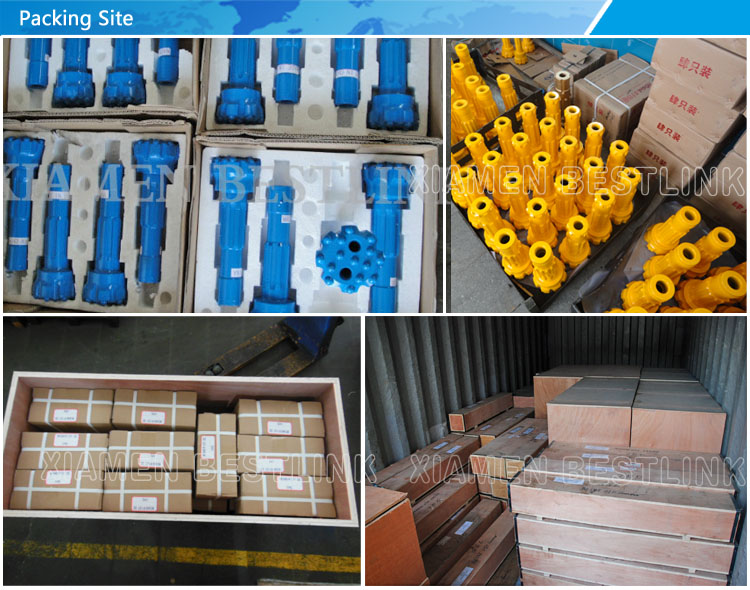

packing site for DTH button bit

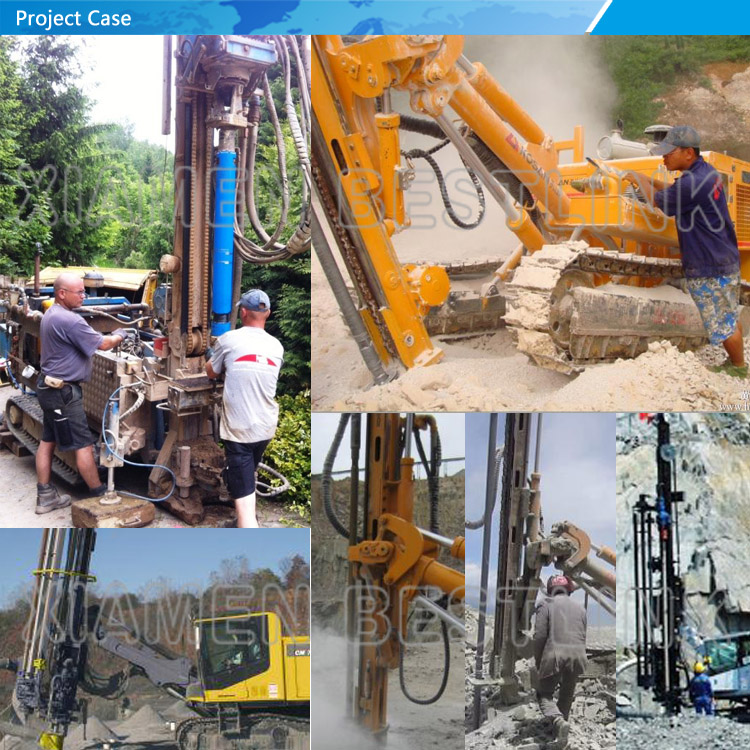

PROJECT
