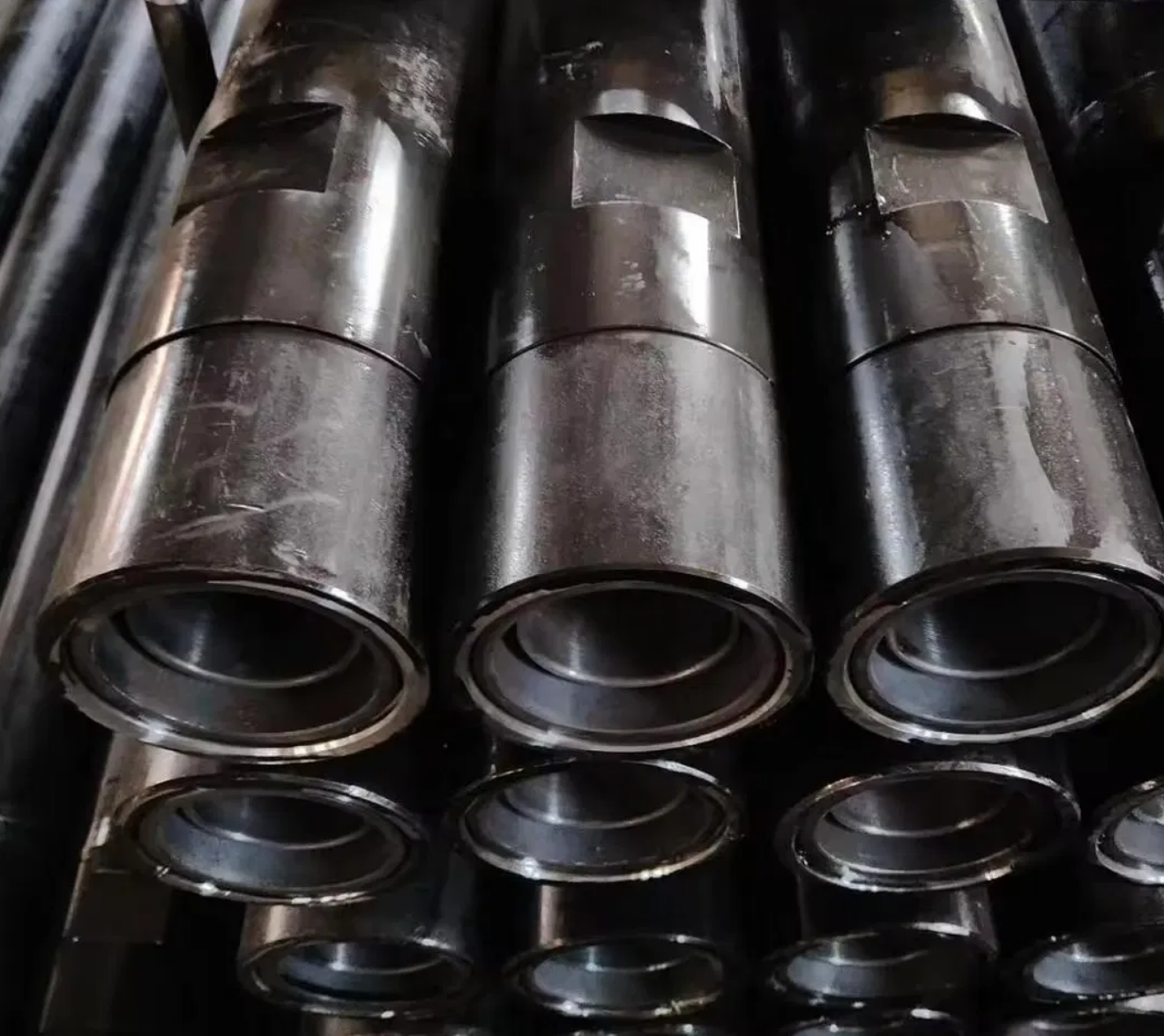

Reverse Circulation Drilling Dual Wall RC Drill Pipe
Bestlink Factory
Our reverse circulation drill rods and drill pipe consist of hardened alloy steel tool joints with heavy duty seamless drill pipe and high tensile wear resistant Inner Tubes. Drawing on our years of experience in the design and manufacture of tough and wear resistant RC drill rods, every aspect of material and production management is optimized. The result is premium quality reverse circulation drill pipes that keep your RC drill rig efficiently producing day after day. RC drilling companies across the globe know they can rely on our reverse circulation drill pipe.
Reverse Circulation Rc Drill Rods/Pipes Specifications | |||||||
|
|
|
|
|
|
|
|
Type / Thread | Remet | Remet | Remet | Metzke | Metzke | Matrix | Matrix |
Rod O.D. | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 4" | 4 1/2" |
Outer tube O.D. | 88.9mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm |
Outer tube I.D. | 81.8mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm |
Outer tube WT | 5.3mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm |
Inner tube O.D. | 38.1mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm |
Inner tube I.D. | 32.6mm | 45.3mm | 58mm | 45.3mm | 58mm | 45.3mm | 58mm |
Inner tube WT | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm |
Spanner Flat | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm |
Weight 3.0 m | 77 kg. | 77 kg. | 97 kg. | 77 kg. | 97 kg. | 77 kg. | 97 kg. |
Weight 6.0 m | 125 kg. | 155 kg. | 172 kg. | 155 kg. | 172 kg. | 155 kg. | 172 kg |
