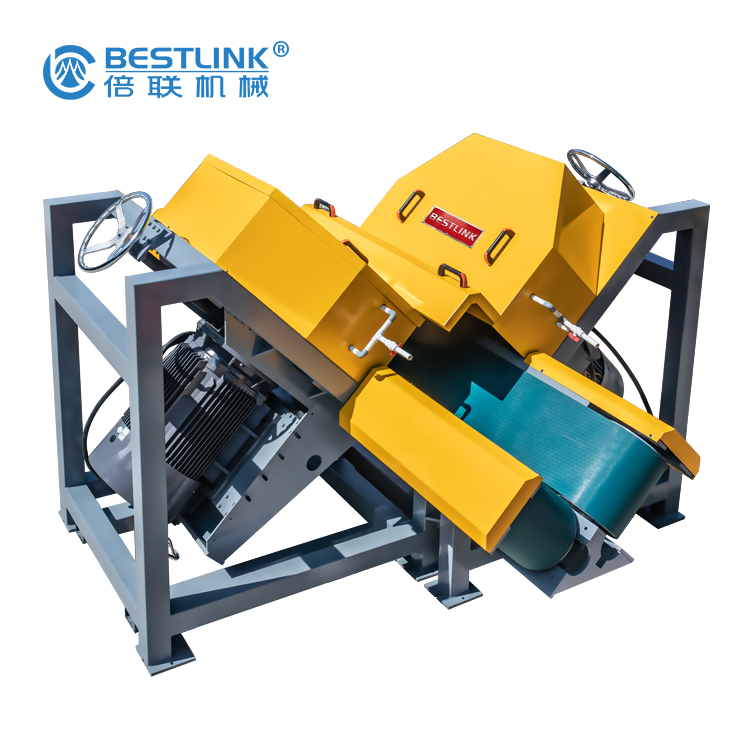

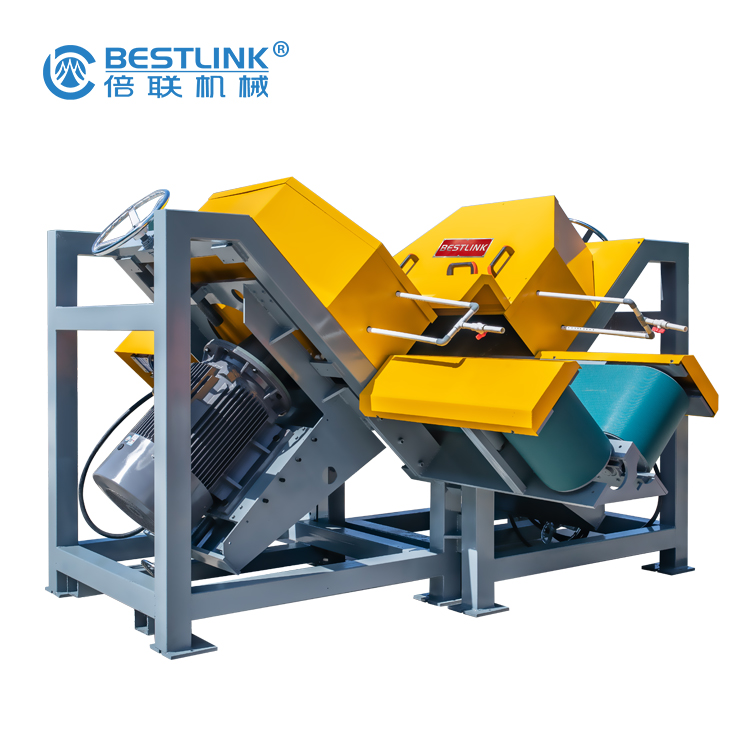

Mightly Thin Stone Veneer Saw For Cutting Granite With Dual Saw Blades, Thin Stone Veneer Saw Machine for Cutting Corner

Share to:

Mightly Thin Stone Veneer Saw For Cutting Granite With Dual Saw Blades, Thin Stone Veneer Saw Machine for Cutting Corner

Availability:

Quantity:



Inquire Add to Basket

Model:
30HP 60HP Thin Stone Veneer Saw
Brand:
BESTLINK

Product Description

Mightly Thin Stone Veneer Saw For Cutting Granite With Dual Saw Blades, Thin Stone Veneer Saw Machine for Cutting Corner

The machine is a monolithic structure with compact structure and convenient installation and transportation.The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are all stepless speed regulation.The working mode of the machine adopts the continuous cutting mode of the pipeline, which is mainly usedfor cutting the plane of irregular elliptical stones such as goose warm stone.

Model	VS-30	VS-30D	VS-60	VS-60D
Dimensions (LWH)(mm)	285019001800	305030001800	330021802180	355035002200
Machine Weight(kg)	2300	4500	3200	6000
Main Motor Power(kw)	22kw(30HP)	22kw(30HP)*2	45kw(60HP)	45kw(60HP)*2
Electricity	3 phases,380V,50Hz(customizable)
Amperage	86/43A	(86/43A)*2	172/86A	(172/86A)*2
Water Consumption(m⊃3;/h)	3.5	4	4	4
Blade Size(mm)	800		1000&1200
Blade Speed Standard(adjustable)	Max.900rpm.		Max.780rpm.
Max.stone heigh(mm)	0-350		0-450
Saw blade adjustable distance(up/down)(mm)	0-120		0-250
Saw blade adjustable distance(back/forth)(mm)	0-200		0-250
Max.stone thickness(mm)	20-220		20-270
Conveyor Belt Lengthwidththickness(mm)	59702807		68004007
Conveyor Belt Speed(Adjustable)(mm/min )	600-2450		600-2450
Max.Cutting Depth(mm)	280		350-450

mighty stone saw with dual blades 10

Mighty Stone Saw 13

The working mode of the machine adopts the continuous cutting mode of the pipeline , which is mainly usedfor cutting the plane of irregular elliptical stones such as goose warm stone.
