MS-12 Hydraulic Stone Splitter
bestlink

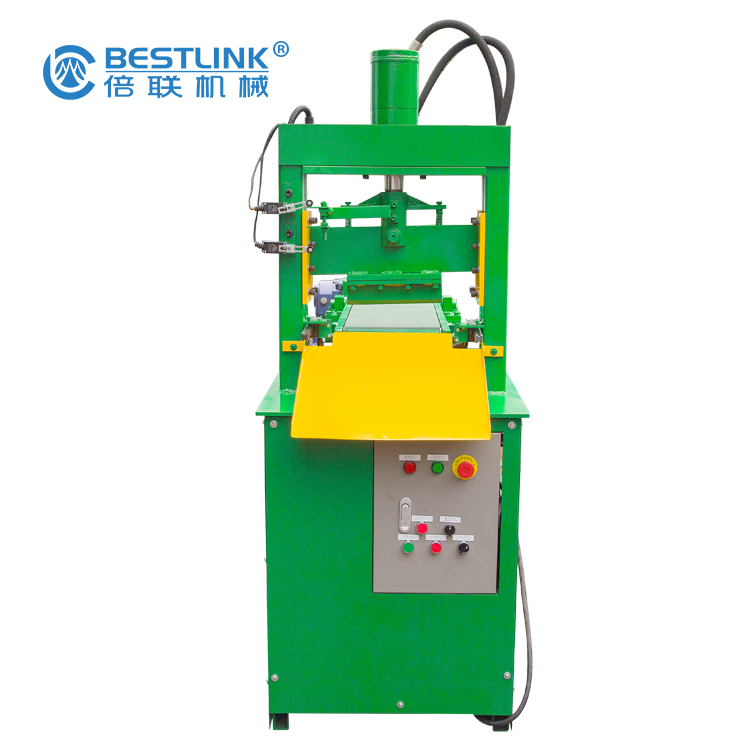

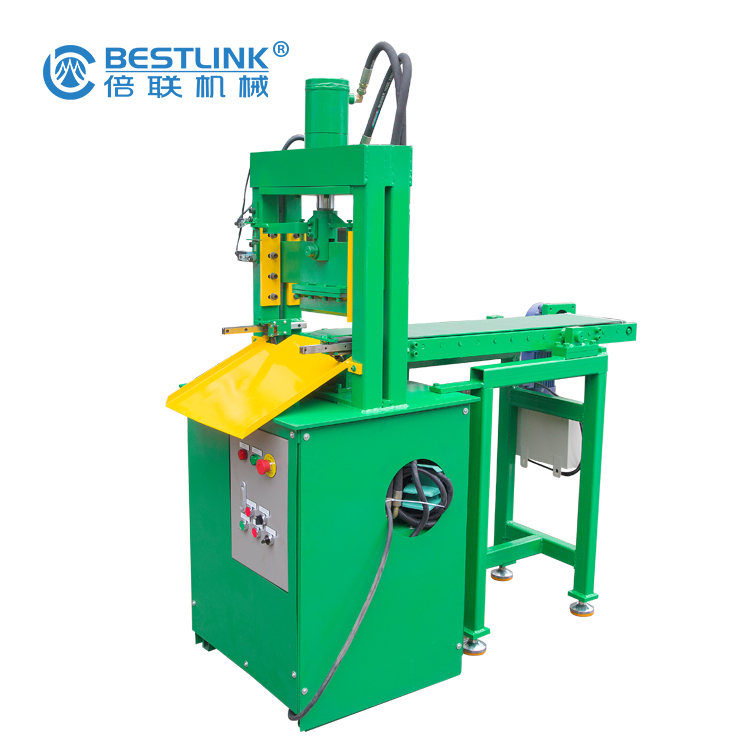

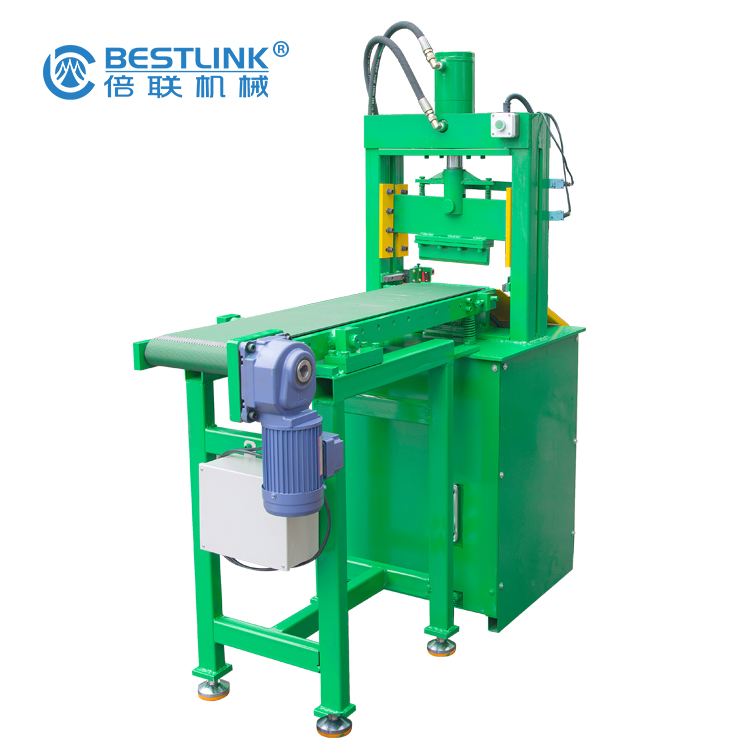

MS-12 hydraulic stone splitter is mainly used for processing the natural splitting surface of stone veneer
Model | MS-5H | MS-12H | MS-20H | MS-40H |
Splitting force (T) | 5 | 12 | 20 | 40 |
Max. Splitting Width (mm) | 120 | 240 | 240 | 300 |
Max.Splitting Heighth (mm) | 100 | 100 | 150 | 150 |
Power Supply | Hydraulic,1kw | Hydraulic,1kw | Hydraulic,3kw | Hydraulic,5kw |
Overall Size (cm) | 140*90*60 | 50*60*160 | 110*50*140 | 70*80*170 |
Weight (kg) | 235 | 235 | 350 | 450 |
Aplication | split rectangle stone (≤120*50*50mm into two pieces in the length direction,pedal control | Chop various sizes flat face stones (≤L*120*50mm )into:tessera,cubes& all the shapes desired,pedal control. | Chop various sizes flat face stones (≤L*240*100mm )into:tessera,cubes& all the shapes desired,pedal control. | Chop various sizes flat face stones (≤L*240*150mm )into:tessera,cubes& all the shapes desired,pedal control. |
MS-12 hydraulic stone splitter is mainly used for processing the natural splitting surface of stone veneer
Model | MS-5H | MS-12H | MS-20H | MS-40H |
Splitting force (T) | 5 | 12 | 20 | 40 |
Max. Splitting Width (mm) | 120 | 240 | 240 | 300 |
Max.Splitting Heighth (mm) | 100 | 100 | 150 | 150 |
Power Supply | Hydraulic,1kw | Hydraulic,1kw | Hydraulic,3kw | Hydraulic,5kw |
Overall Size (cm) | 140*90*60 | 50*60*160 | 110*50*140 | 70*80*170 |
Weight (kg) | 235 | 235 | 350 | 450 |
Aplication | split rectangle stone (≤120*50*50mm into two pieces in the length direction,pedal control | Chop various sizes flat face stones (≤L*120*50mm )into:tessera,cubes& all the shapes desired,pedal control. | Chop various sizes flat face stones (≤L*240*100mm )into:tessera,cubes& all the shapes desired,pedal control. | Chop various sizes flat face stones (≤L*240*150mm )into:tessera,cubes& all the shapes desired,pedal control. |
