Hydraulic Rig Drilling Attachments T38/T45/T51 Extension Rods Speed Rods

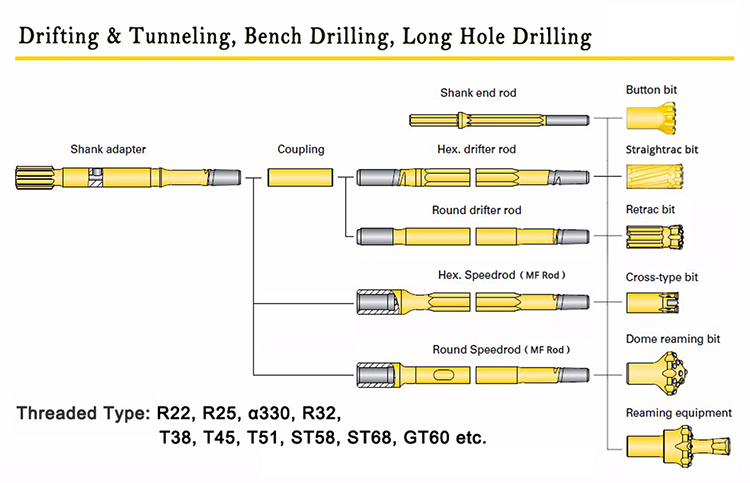

Drifting and tunneling


Product Name:

extension rods

Description:

extension rods

Thread drill rod made with best quality carbon steel bar,through heat treatment like Atlas.

Material:

carbon steel bar

MOQ:

No MOQ required for testing and trial order

Body Type

Round shape and  hexagonal type

Thread type

R25,R28,R32,R38,T38,T45,T51

Diameter

Hex25,Hex28,Rd32,Rd38,Rd45,Rd51

Type

Thread extention Rod and MF rod

Length

600mm-6400mm


R32 thread:
Extension rods, R32-Round32-R32, length915mm/1000mm/1220mm/1830mm/2435mm/3050mm/3660mm
M/F rods, R32-Round32-R32, length 915mm/1220mm/1525mm/1830mm/2435mm/3050mm/3660mm
Guide speed rods, R32-Round39-R32, length 3050mm/3660mm
Guide tube, R32-Round46-R32, length 1220mm/1525mm/1830mm/3050mm


T38 thread:
Extension rods, T38-Round39-T38, length1220mm/1525mm/1830mm/2435mm/3050mm/3660mm/3965mm/4270mm/4880mm/5530mm/6095mm
Double thread extension rods, T38-Round39-T38, length 3050mm/3660mm
MF rods, T38-Round39-T38, length915mm/1220mm/1525mm/1830mm/3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
Guide speed rods, T38-Round46-T38, length 1830mm/3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
Guide tube, T38-Round56-T38, length 1220mm/1525mm/1830mm/3050mm/3660mm/4920mm
Hex extension rods, T38-Hex32-T38, length 1220mm/1830mm/2435mm/3050mm/3660mm


T45 thread:
Extension rods, T45-Round46-T45, length 1830mm/2435mm/3050mm/3660mm/4270mm/5530mm/6095mm
MF rods, T45-Round46-T45, length1525mm/1830mm/3050mm/3660mm/4270mm/5530mm/6095mm
Guide speed rods, T45-Round52-T45, length 3050mm/3660mm/4270mm/5530mm/6095mm
Guide tube: T45-Round64-T45, length 1220mm/1525mm/1830mm/3050mm/3660mm
Guide tube: T45-Round76-T45, length 1830mm/3660mm


T51 thread:
Extension rods, T51-Round52-T51, length3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
MF rods, T51-Round52-T51, length1525mm/1830mm/3050mm/3660mm/4270mm/4880mm/5530mm/6095mm
Guide rods, T51-Round76-T51, length 1830mm/3660mm
Guide tube, T51-Round87-T51, length 3660mm


T60 thread:
MF rods, T60-Round60-T60, length 3660mm/4265mm/6095mm
