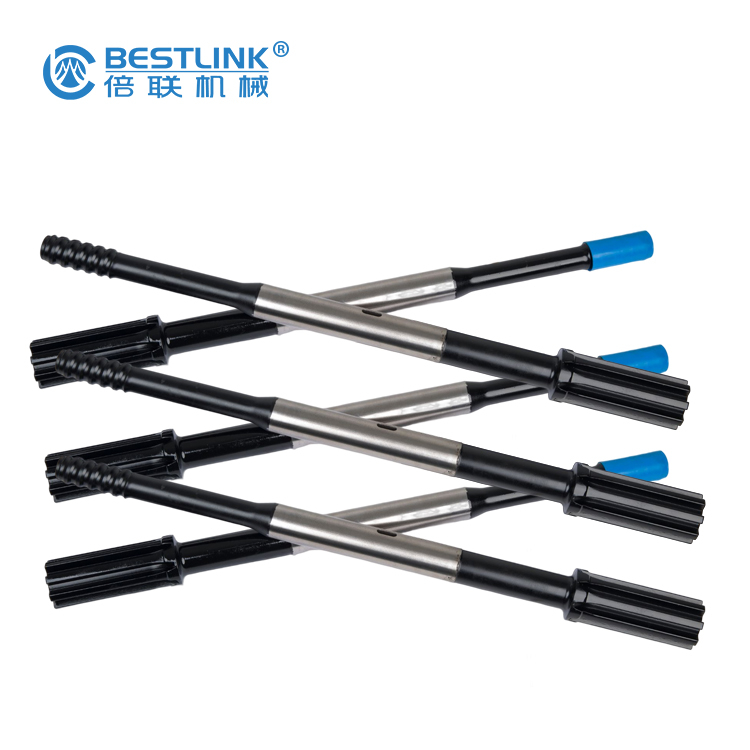

Hydraulic/Pneumatic Crawler Rock Driller Striking Bar Shank Adapter Connecting with Drifter Extension Rods

Rock drill brands: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.

Thread models: R25, R28, R28, R32, R32, R35, R35, R38, T38, T45, T51, ST58, GT60, ST68.

Shank adapters are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank adapters and famal threaded shank adapters. Male shank adapters are more populaer than famale shank adapter. Male shank adapter are generally suited for drifting, tunneling and extension applications where high stresses are present. Females shankadapters are used when the drilling space is limited.

Bestlink shank adapters ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.

Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads.

• Atlas Copco (COP1238, COP1838, COP1032 and etc)

• Furukawa (HD715, HD612, HD609, PD200 and etc)

• Ingersoll-Rand (VL140, VL671, YH80A and etc)

• Tamrock(HLX5, HL600, HL500, HL300, HL 700, HL850, HL1000, HL1500 and etc)



  Thread	Manufacturer	Drifter	Length(mm)	Weight(kg)
  R32	Furukawa	HD120/200,M120	349.3	3.12
  R32	Gardner-Denver	PR123,PR133	349.3	3.12
  R32	Ingersoll-Rand	Evl130, VL120/140	349.3	3.12
  R38	Atlas-Copco	BBE 51/52/57	448	4.9
  R38	Furukawa	HD120/200,M120	349.3	3.26
  R38	Ingersoll-Rand	Evl130, VL120/140	349.3	3.26
  R38	Joy	VCR260/360	390.5	3.6
  R38	Montabert	H100	448	4.9
  R38	Tamrock	HL844	448	4.9
  R38	Tamrock	L600 / 750	349.3	3.26
  T38	Atlas-Copco	BBE56/57	530.4	5.5
  T38	Atlas-Copco	COP1036/1038	590	5
  		1038ME/1238ME
  T38	Furukawa	HD120/200,M120	349.3	3.4
  T38	Furukawa	PD200	484	3.6
  T38	Gardner-Denver	HPR1H(12 Spline)	725	6.8
  T38	Gardner-Denver	PR123/133/55	349.3	3.4
  T38	Ingersoll-Rand	ELV130	349.3	3.4
  T38	Ingersoll-Rand	ELV130	349.3	3.4
  T38	Ingersoll-Rand	HC80RP (shot)	669	7.9
  T38	Ingersoll-Rand	VL120/140	349.3	3.4
  T38	Joy	VCR260/360	390.5	3.6
  T38	Montabert	HC80	591	6.68
  T38	Montabert	HC80RP(Shot)	669	7.9
  T38	Montabert	HC80RP(Long)	771	8.5
  T38	Tamrock	HL438/538/844	495	3.6
  T38	Tamrock	L600/750	349.3	3.4
  T45	Atlas-Copco	BBE56/57/57-01	530.4	5.7
  T45	Atlas-Copco	Cop1036/1038/1238ME	590	5
  T45	Furukawa	HD120/200,M120	349.3	3.6
  T45	Gaedner-Denver	HPR1H 12Spline	725	5.7
  T45	Gaedner-Denver	PR132	349.3	5
  T45	Gaedner-Denver	PR66	558.8	3.6
  T45	Ingersoll-Rand	EVL130,VL140	349.5	5
  		12 Spline
  T45	Ingersoll-Rand	EVL130, VL120/140	558.8	3.6
  T45	Ingersoll-Rand	VL671 w 3/4" tube	349.5	5.9
  T45	Ingersoll-Rand	VL671 w 9/16" tube	533.4	6
