H19 H22 H25 Carbide Tapered Drill Rod Taper Rock Rod With ISO9001 Standard

Views:2     Author:Site Editor     Publish Time: 2021-09-16      Origin:Site

H19 H22 H25 Carbide Tapered Drill Rod Taper Rock Rod With ISO9001 Standard

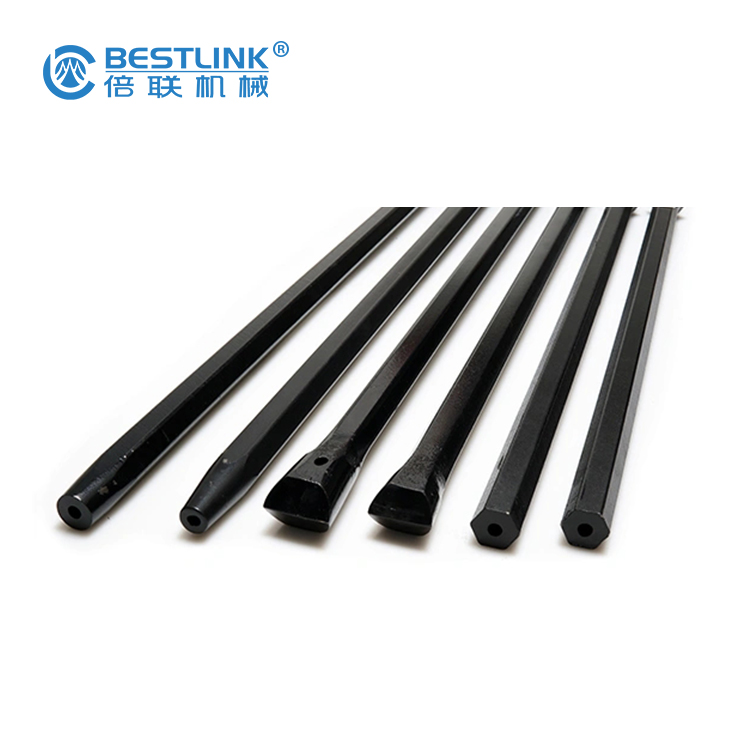

Blast Hole Drilling Tool Tapered Drill Rod For Mining Rock Drill


• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

CNC Milling Tapered Drill Rod


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: 12° Taper Hex 22 Tapered Rod Shank 22 mm x 108 mm


CNC Milling Tapered Drill Rod


Applications


• Underground Mining
• Tunneling



Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



specification

Part Number Product Code and Brief Description Length (mm) Length (ft/inch)

Weight

(kg)

4148300291

H22-12D-610, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm


610 2     2.2
4148300292

H22-12D-1220, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm


1220 4     4.1
4148300293

H22-12D-1830, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1830 6     5.9
4148300294

H22-12D-2000, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2000 6 5/9 6.4
4148300295

H22-12D-2435, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2435 8     7.8
4148300296

H22-12D-2600, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2600 8 1/2 8.3
4148300297

H22-12D-3200, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

3200 10 1/2 10.1
4148300298

H22-12D-3655, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

3655 12     11.5
4148300299

H22-12D-4000, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

4000 13 1/8 12.6
4148300300

H22-12D-4800, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

4800 15 3/4 14.9
4148300301

H22-12D-5600, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

5600 18 3/8 17.4
4148300302

H22-12D-6400, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

6400 21     19.8
4148300303

H22-12D-7200, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

7200 23 5/8 22.2
4148300304

H22-12D-8000, 12° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

8000 26 1/4 24.6


Bestlink Factory

Xiamen Bestlink Factory Co., Ltd  is  committed  to  provide  the  best  drilling  and  cutting machine,  tools and accessories products in marble and granite stone quarrying,  as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite  and ornamental stones in china.
