Eccentric Overburden Casing Drilling ODEX140 system

Views:0     Author:Site Editor     Publish Time: 2019-09-03      Origin:Site

Eccentric Overburden Casing Drilling ODEX140 system

Casing drilling involves drilling and casing a well simultaneously through unstable ground conditions, In casing drilling process, down the hole tools can be retrieved, through the casing on wire-line, meaning tool recovery or replacement of tools.

can take minutes versus hours under conventional methods. This process employs wire line-retrievable tools and a drill-lock assembly, permitting bit and BHA changes, coring, electrical logging and even directional or horizontal drilling. Once the casing point is reached, the casing is

cemented in place without tripping pipe.



Casing drilling has been employed in many countries as an effective method of reducing the overall drilling costs by reducing drilling time and drill string problems

encountered during conventional drilling process.



Applications:

Blast holes

Water supply wells

Bridge and building foundations

Standard slant or horizontal drilling

Mining air holes

Environmental monitoring wells

Grouting operations

Seismic shot holes

Soil sample and geotechnical applications

Ground anomaly and tiebacks

Storage caverns and dam




Technical Data:

Model

Outer Dia. of Casing Tube
(mm)

Inner Dia. of Casing Tube(mm)

Wall thickness of casing
(mm)

Reamed Dia.
(mm)

Min. Inner Dia.of Casing Shoe
(mm)

Hammer Type

Drill Pipes
(mm)

Weight
(kg)

ODEX for DTH Drilling

ODEX90

115

102

6.5

125

92

COP32/COP34/DHD3.5/BR3/MACH303

76

12.5

ODEX115

140

128

6

157

117

COP44/DHD340/MACH44/MISSION40

/SD4/XL4/QL40

76/89

22

ODEX140

168

157

5.5

182

142

COP54/DHD350/MACH50/MISSION50/SD5/QL50

89

38

ODEX165

194

183

5.5

206

166

COP62/COP64/DHD360/MISSION60

/SD6/XL6/QL60/TD150

114

61.5

ODEX190

222

205

8.5

234

191

114

83

ODEX240

273

260

6.5

305

241


114

136.5

ODEX280

323

297.6

12.7

338

281

SD10/NUMA100/TH10

114

184

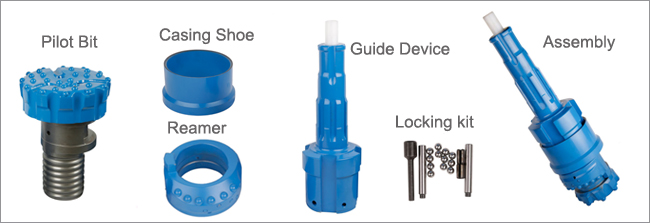

Eccentric Casing system
