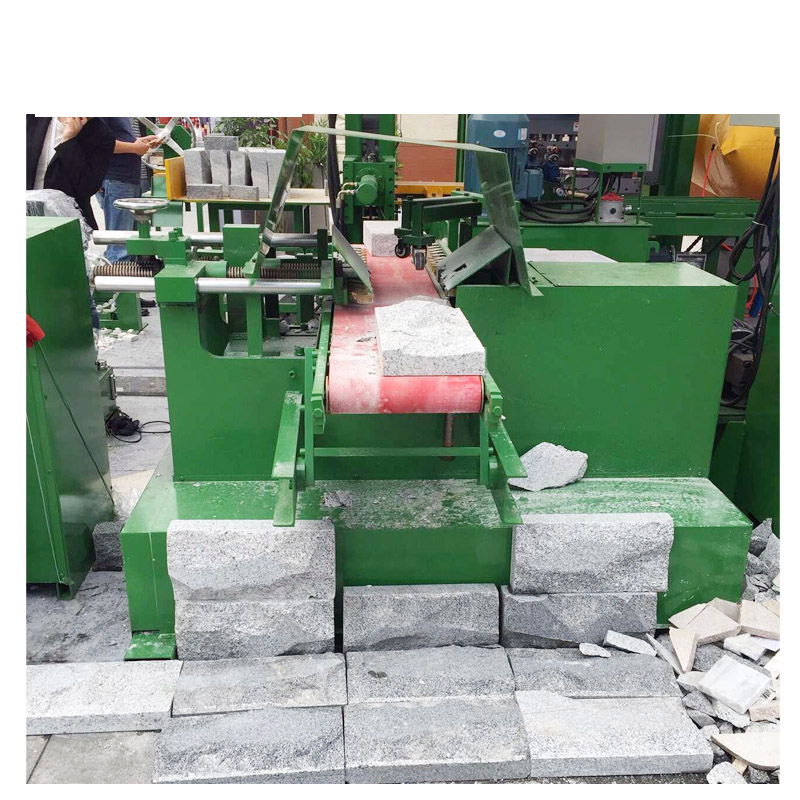

ES-16/40 Decorative Stone Breaking Machine for Mushroom Face

ES-16/40 Decorative Stone Breaking Machine for Mushroom Face. It help to lop the cut-to-size slate,sandstone ,marble and granite into rustic finish.

Quantity:
  • ES-16/40 Decorative stone breaking machine
  • BESTLINK

ES-16/40 Decorative Stone Breaking Machine for Mushroom face


It help to lop the cut-to-size slate,sandstone ,marble and granite into rustic finish.

Model ES-16 ES-40 HS3010(hydraulic)
Motor power(kw) 3 4.5 11
Stroke(shot/min.) 120 120 pressure:70T
blade number 1 1 2
Max.stone height (mm) 300 600 max.stone size L*300(W)*100mm(T)
Min.stone height (mm) 50 50
Max.stone thickness(mm) 80 80 min.stone size L*100(W)*50mm(T)
Min.stone thickness(mm) 15 15
Overall Size (mm) 900*1000*2200 950*1100*2500 3100*2600*1200
Net Weight (kg) 730 1000 2350
Aplication For lopping the slate,sandstone or marble slabs into rustic finish,single working blade. special for granite mushroom face making,oil tank 500L/400kg,yeild output 80m2/hour

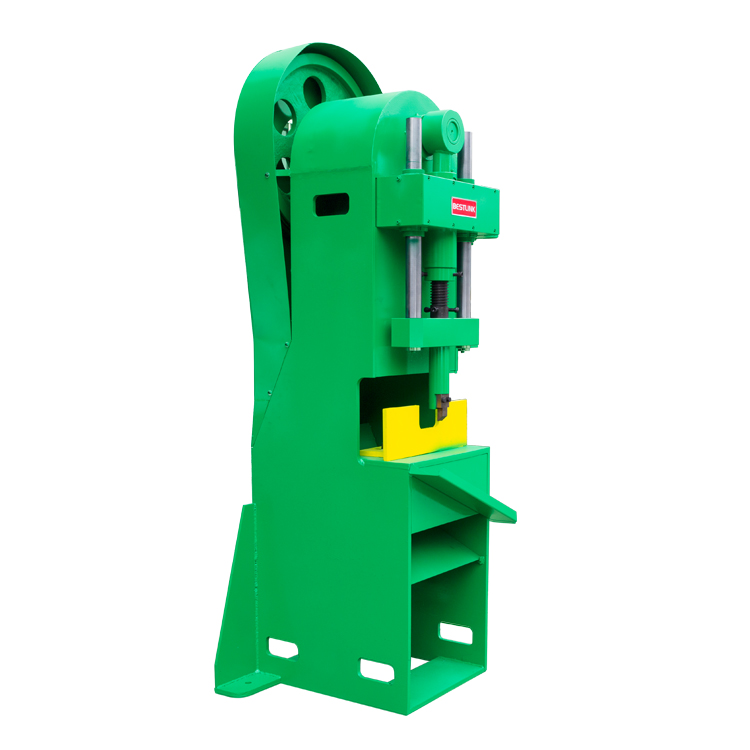

Mushroom Machine (13)

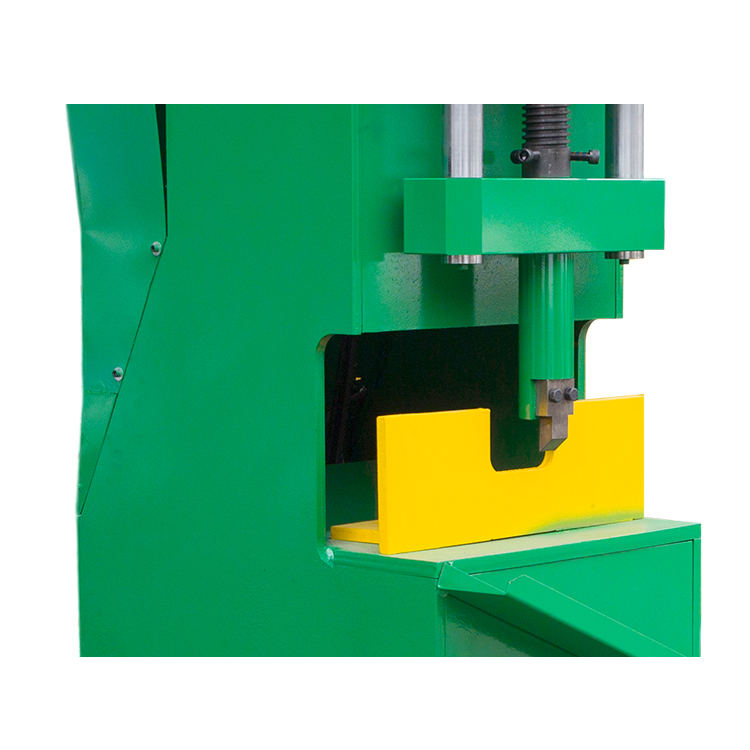

Mushroom Machine (11)

Mushroom Machine (15)

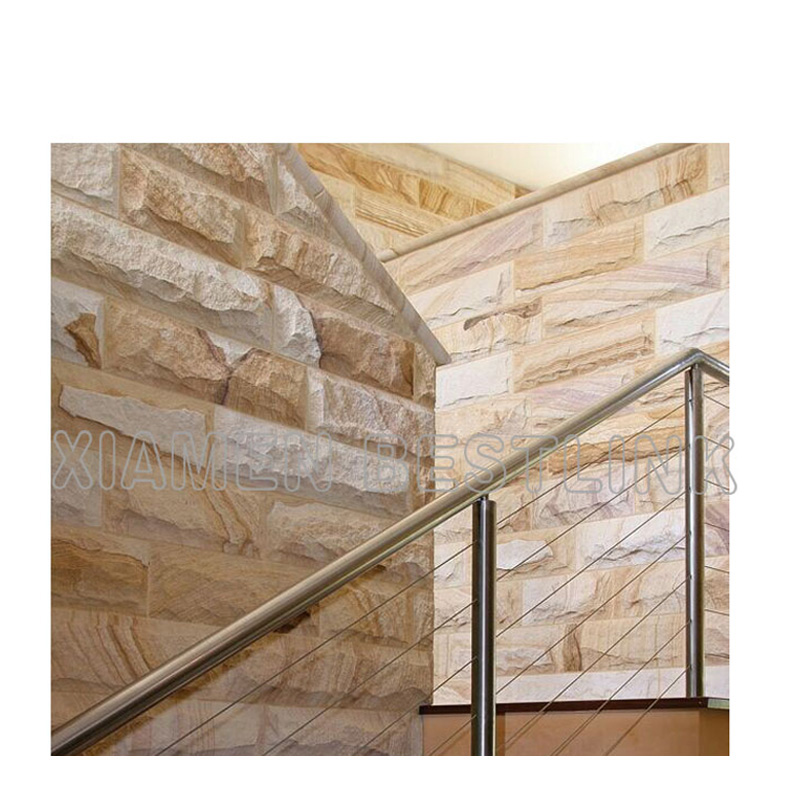

Mushroom stone Machine (2)

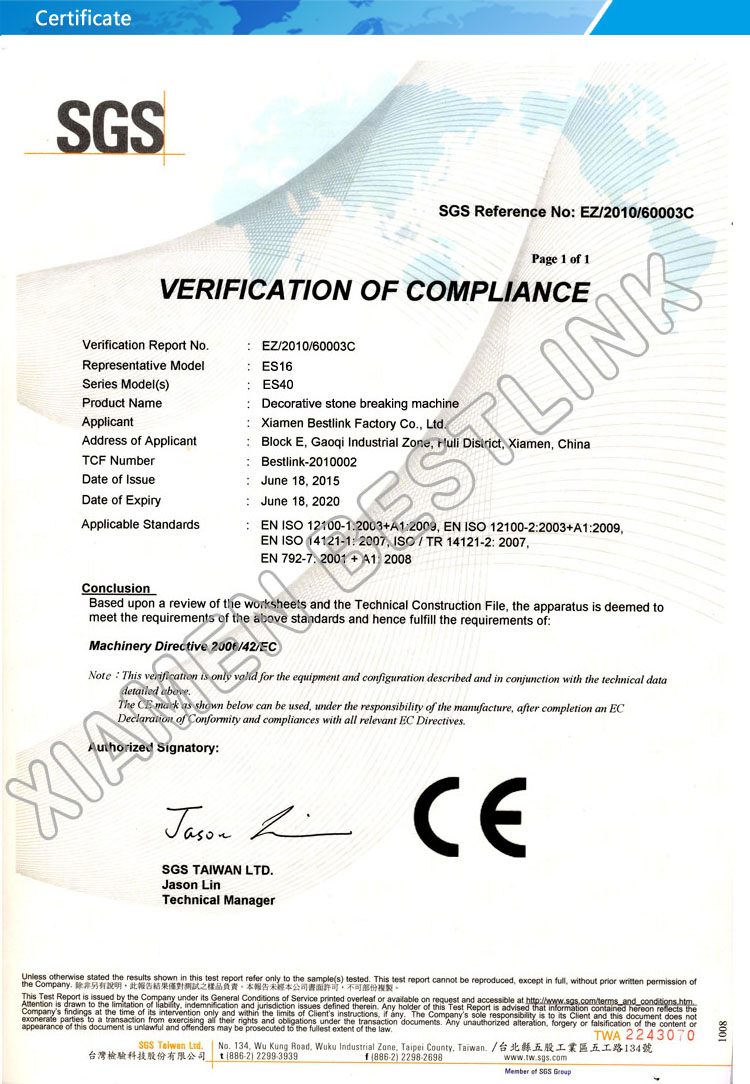

mushroom stone machine 4
