Coupling Shank Striking Bars for Top Hammer Drilling Rigs and Hydraulic Drifters

Coupling Shank Striking Bars

Quantity:
  • Coupling Shank Striking Bars
  • BESTLINK

Coupling Shank Striking Bars for Top Hammer Drilling Rigs and Hydraulic Drifters

Thread models: R25, R28, R28, R32, R32, R35, R35, R38, T38, T45, T51, ST58, GT60, ST68.

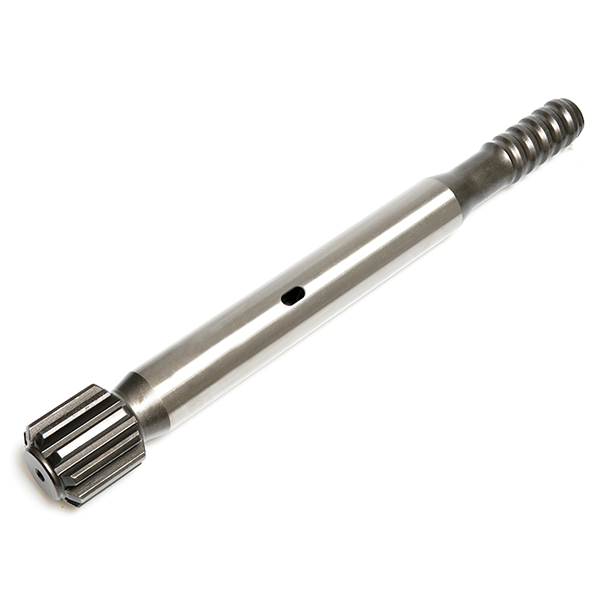

Shank adapters are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank adapters and famal threaded shank adapters. Male shank adapters are more populaer than famale shank adapter. Male shank adapter are generally suited for drifting, tunneling and extension applications where high stresses are present. Females shankadapters are used when the drilling space is limited.



BESTLINK shank adapters ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.



Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads.

  • Atlas Copco (COP1238, COP1838, COP1032 and etc)

  • Furukawa (HD715, HD612, HD609, PD200 and etc)

  • Ingersoll-Rand (VL140, VL671, YH80A and etc)

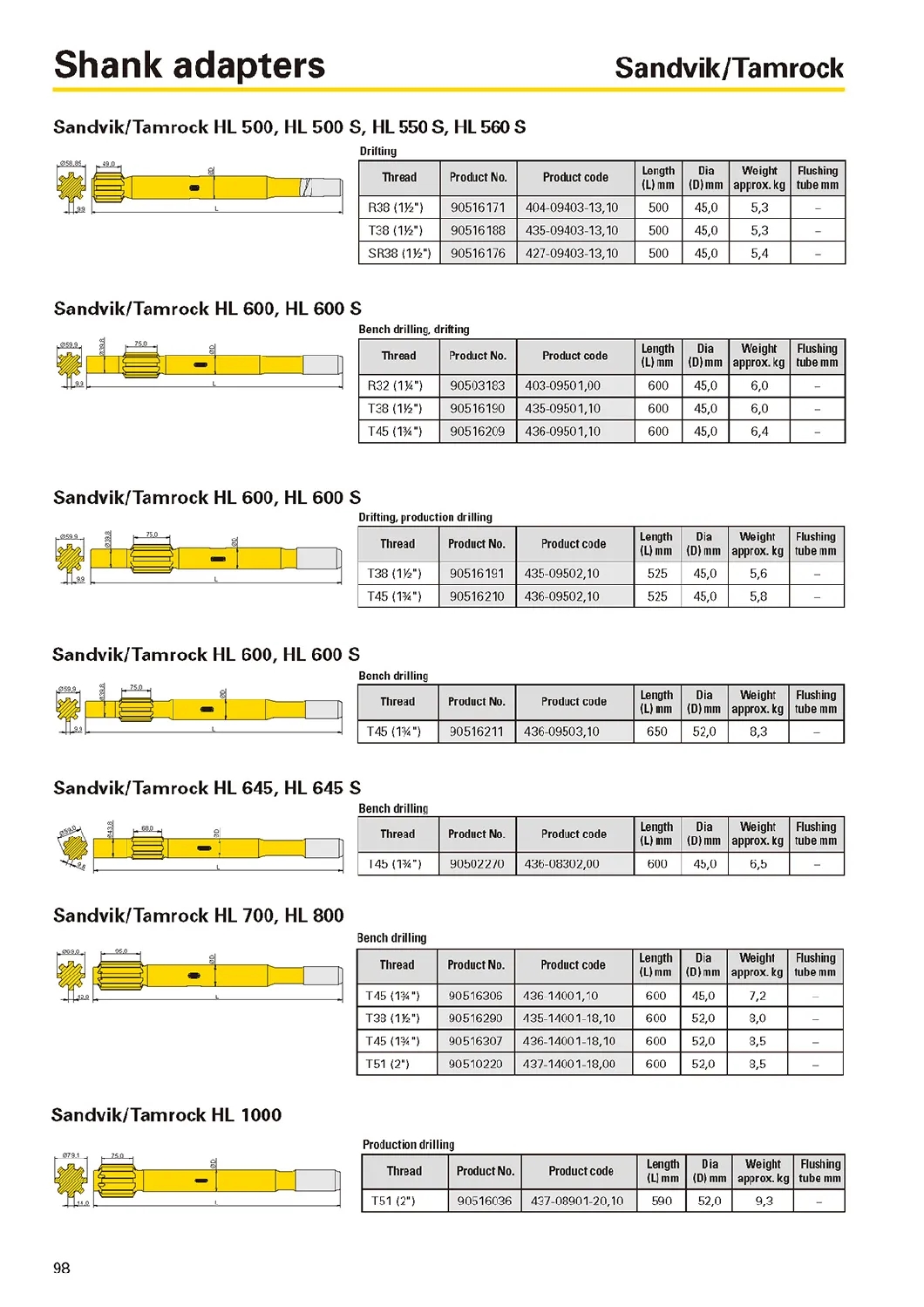

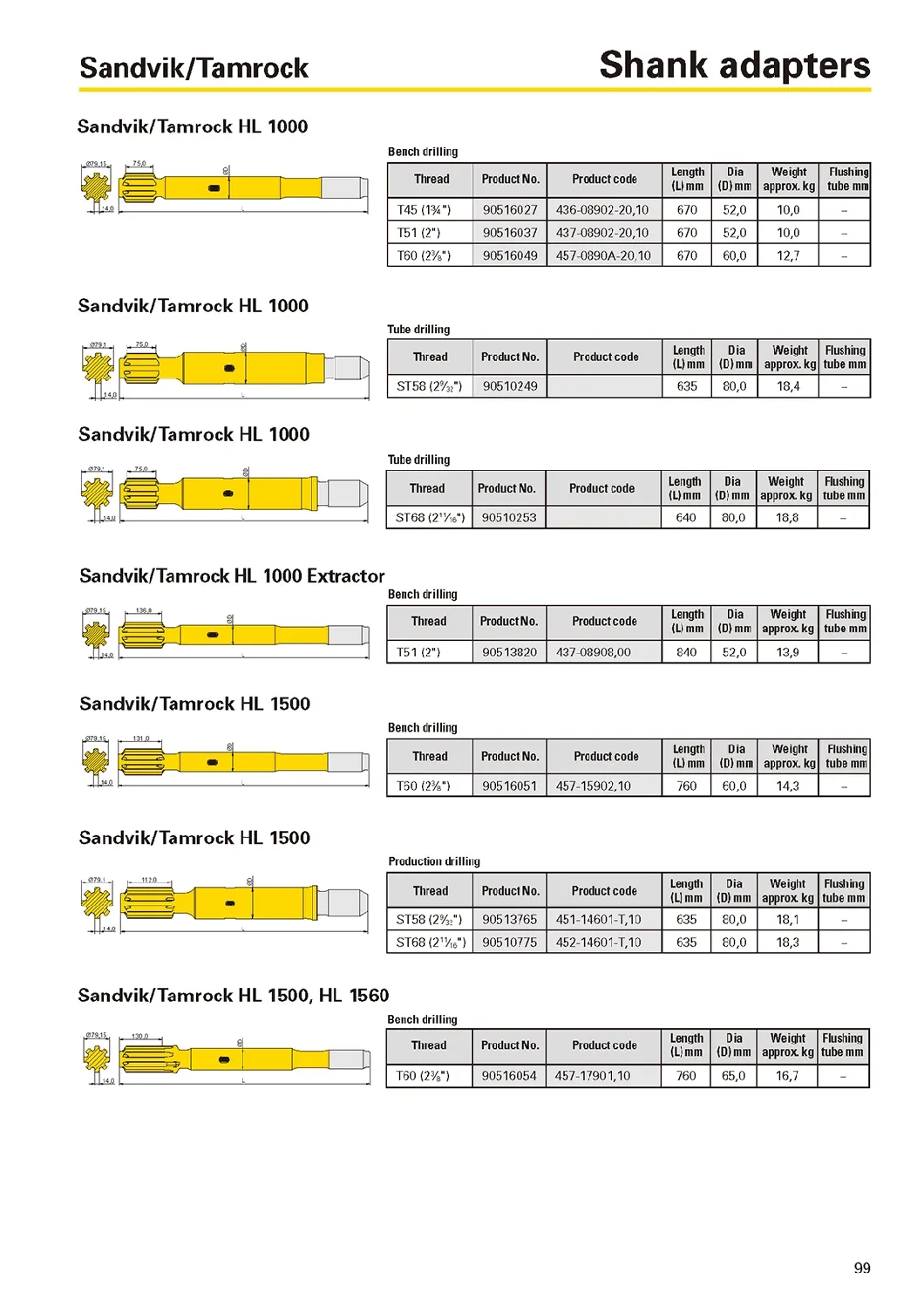

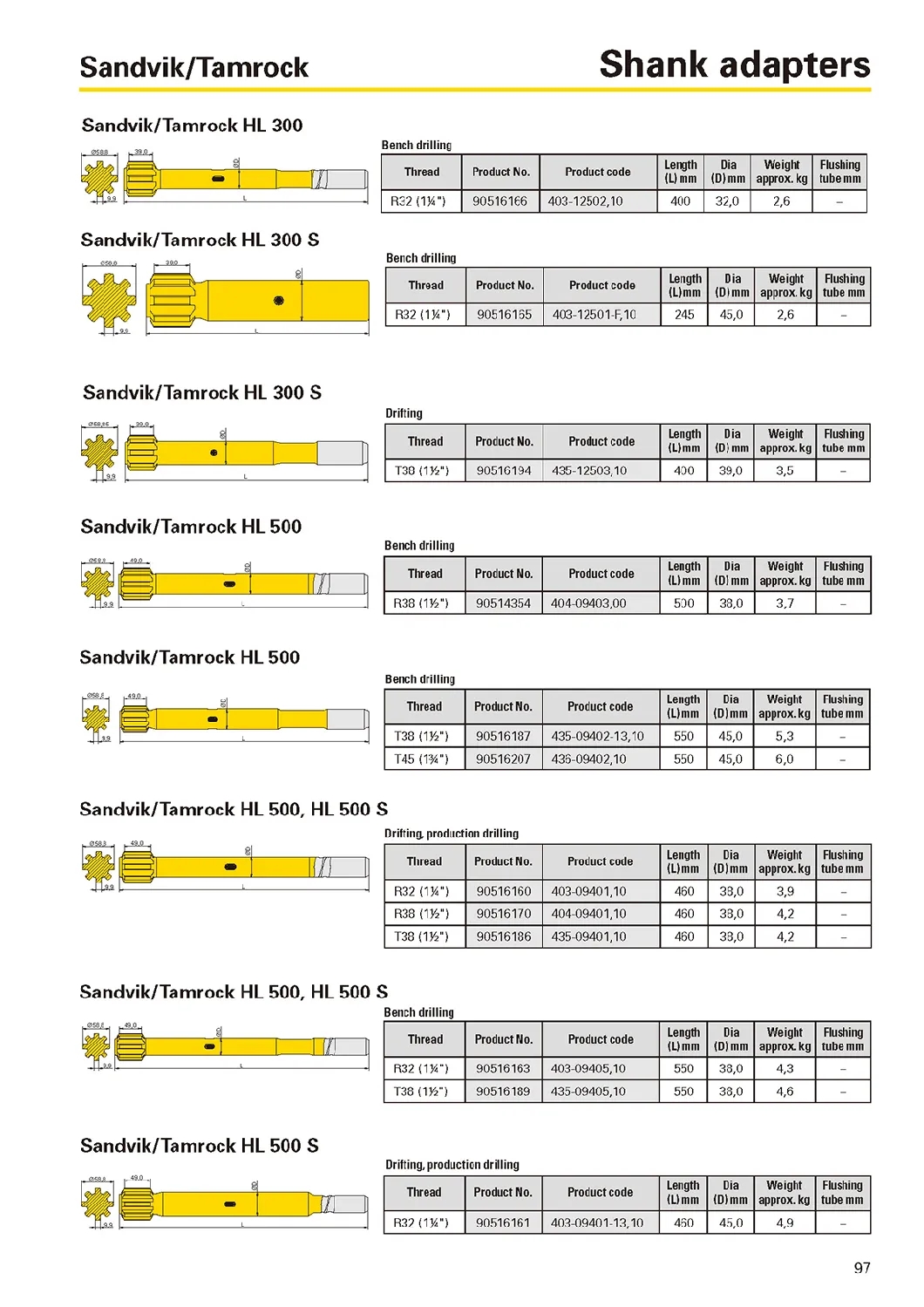

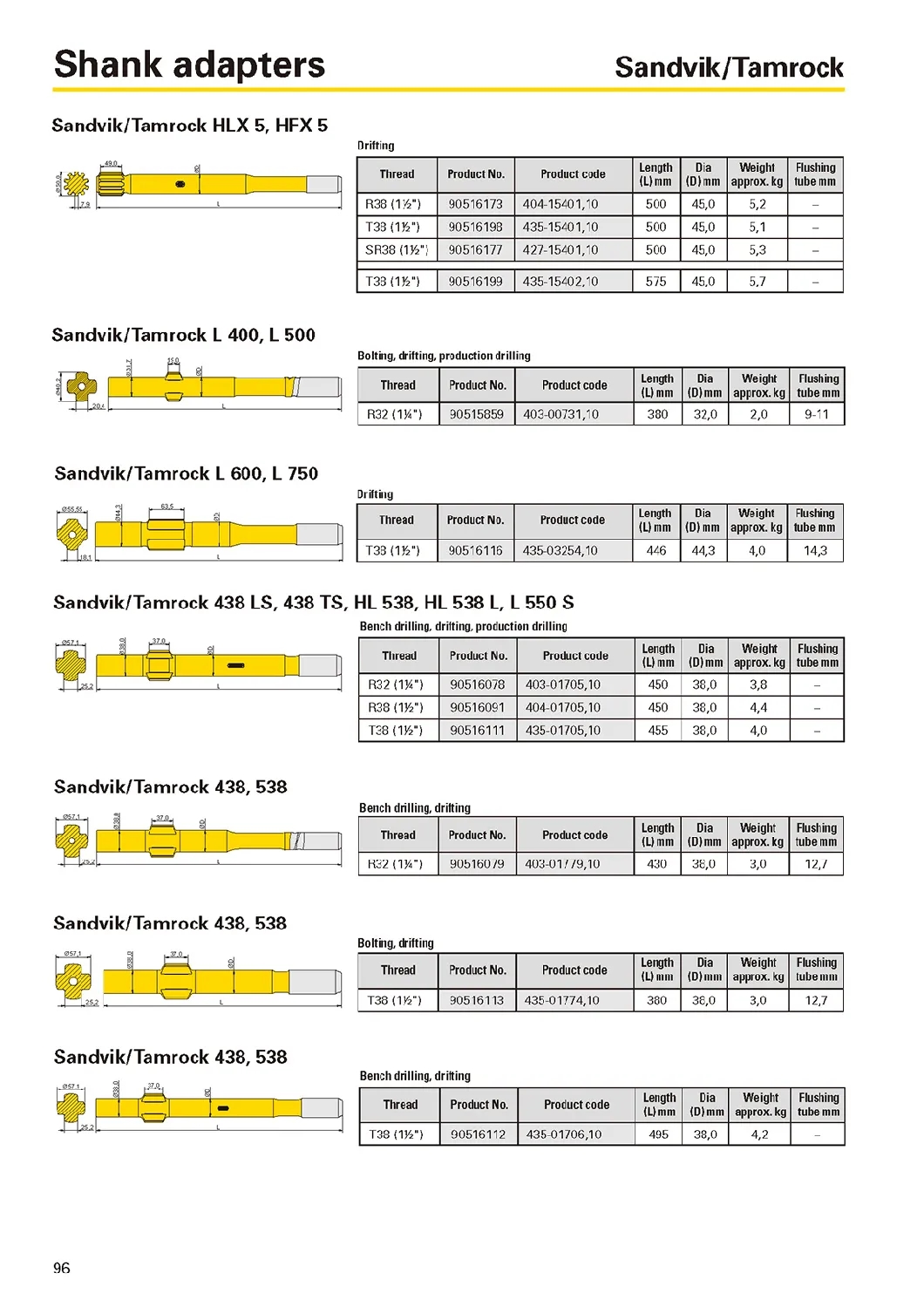

  • Tamrock(HLX5, HL600, HL500, HL300, HL 700, HL850, HL1000, HL1500 and etc)

  • R32-T38-T45-T51-Top-Hammer-Drilling-Striking-Bar-Shank-Adapter

  • R32-T38-T45-T51-Top-Hammer-Drilling-Striking-Bar-Shank-Adapter

  • R32-T38-T45-T51-Top-Hammer-Drilling-Striking-Bar-Shank-Adapter

  • R32-T38-T45-T51-Top-Hammer-Drilling-Striking-Bar-Shank-Adapter
