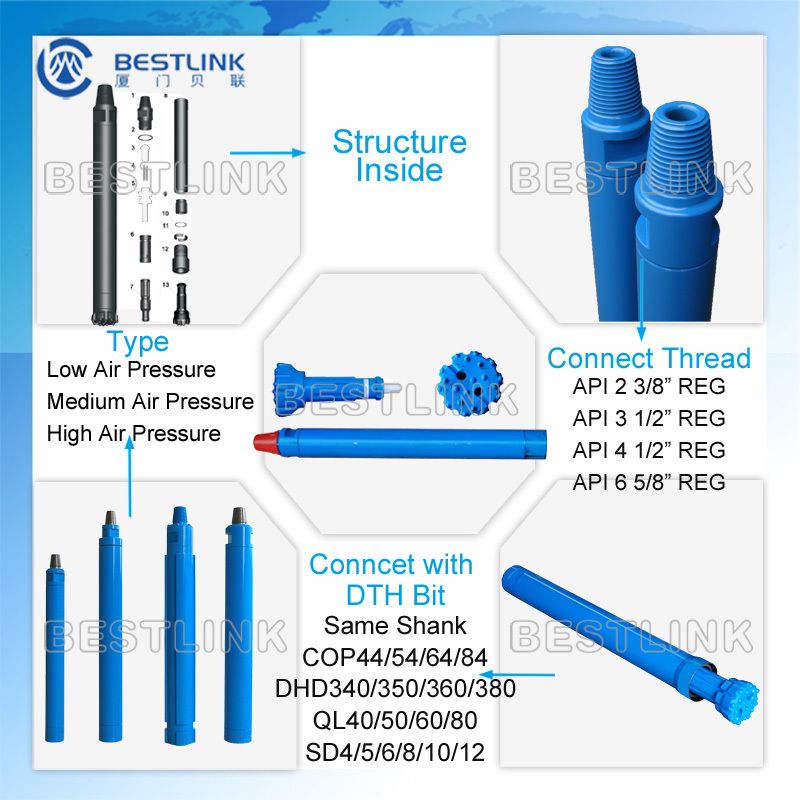

With professional manufacturing experience in DTH hammer production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.
It also has the followingadvantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe

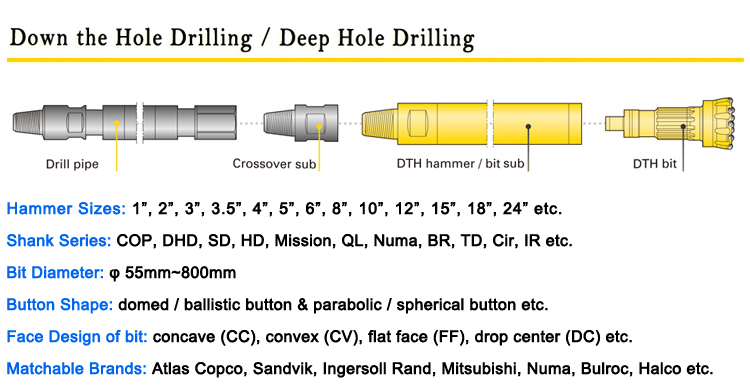

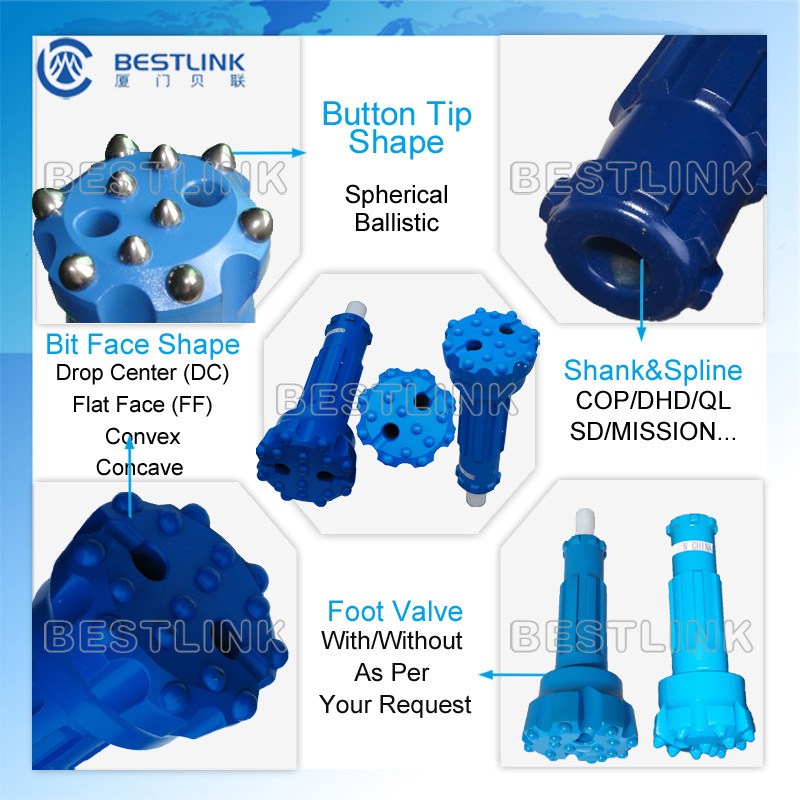

DTH Bit
DTH bit is also our main product. After mang years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.
1.high and low air pressure down-the-hole drill bits
2.Low air pressure holeDia.:65-220mm
3.High air pressure hole Dia.:85-305mm
4.Face type:drop center/concave/convex/double gauge/flat
5.Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Digger etc.
------------------Specifications of High Air Pressure DTH Hammers--------------------------------

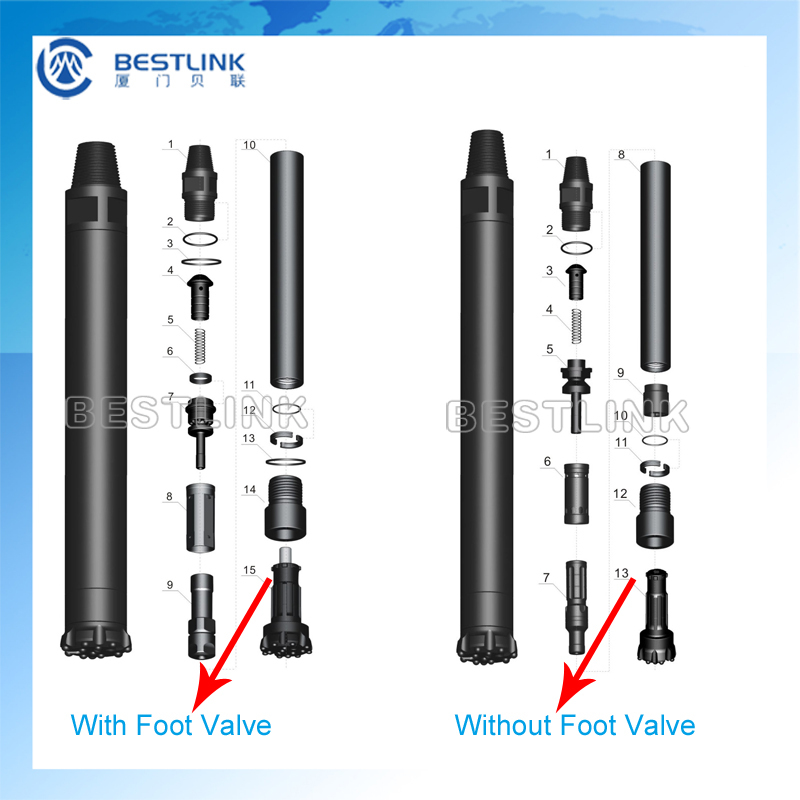

High Air Pressure DTH Hammer(with foot valve)
It is a kind of valveless high air pressure DTH hammer with foot valve.
Advantages:
1.Valveless air distribution, more reliable;
2.Piston with simple but compact design, long life;
3.More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
4.Fewer internal parts, simple structure, longer life, less failure and easier to maintain, with the all heat treated parts;
5.Easy to disassemble, thanks for the top sub, drive chuck and external cylinder all are connected by multi-step thread.
DTH hammer type | HD35 | HD45 | HSD4 | HQL4 | |
Length(less bit) mm | 930mm | 1030 | 1084 | 1097 | |
Weight(less bit) kg | 25kg | 39 | 40.5 | 41 | |
External diameter mm | Φ82mm | Φ99 | Φ99 | Φ99 | |
Bit shank | DHD3.5 | COP44 DHD340 | SD4 | QL40 | |
Hole range(mm) | Φ90-110 | Φ110-135 | Φ110-135 | Φ110-135 | |
Connection thread | API 23/8" Reg. | API 2 3/8"Reg | API 2 3/8"Reg | API 2 3/8"Reg | |
Working pressure | 1.0-1.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
Impact rate at 1.5-1.7Mpa | 28Hz | 27Hz | 27Hz | 27Hz | |
Recommended Rotation speed | 25-40r/min | 25-40r/min | 25-40r/min | 25-40r/min | |
Air consumption | 1.0Mpa | 4.5m3/min | 6.0m3/min | 6.0m3/min | 6.0m3/min |
1.8Mpa | 9.0m3/min | 10.0m3/min | 10.0m3/min | 10.0m3/min | |
2.4Mpa | / | 15.0m3/min | 15.0m3/min | 15.0m3/min |
DTH hammer type | HD55 | HD55C | HSD5 | HQL5 | |
Length(less bit) mm | 1214 | 1160 | 1175 | 1156 | |
Weight(less bit) kg | 76.5 | 72.5 | 72.5 | 73 | |
External diameter mm | Φ125 | Φ125 | Φ125 | Φ125 | |
Bit shank | COP54 DHD350R | HD55C DHD350Q | SD5 | QL50 | |
Hole range(mm) | Φ135-155 | Φ135-155 | Φ135-155 | Φ135-155 | |
Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 3 1/2"Reg | API 3 1/2"Reg | |
API 3 1/2"Reg | API 3 1/2"Reg | ||||
Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
Impact rate at 1.5-1.7Mpa | 25Hz | 25Hz | 25Hz | 25Hz | |
Recommended Rotation speed | 20-35r/min | 20-35r/min | 20-35r/min | 20-35r/min | |
Air consumption | 1.0Mpa | 9.0m3/min | 9.0m3/min | 9.0m3/min | 9.0m3/min |
1.8Mpa | 15.0m3/min | 15.0m3/min | 15.0m3/min | 15.0m3/min | |
2.4Mpa | 23.0m3/min | 23.0m3/min | 23.0m3/min | 23.0m3/min |
