1.CE Certificate
2.40 different models
3.It is used to press letfover and slabs

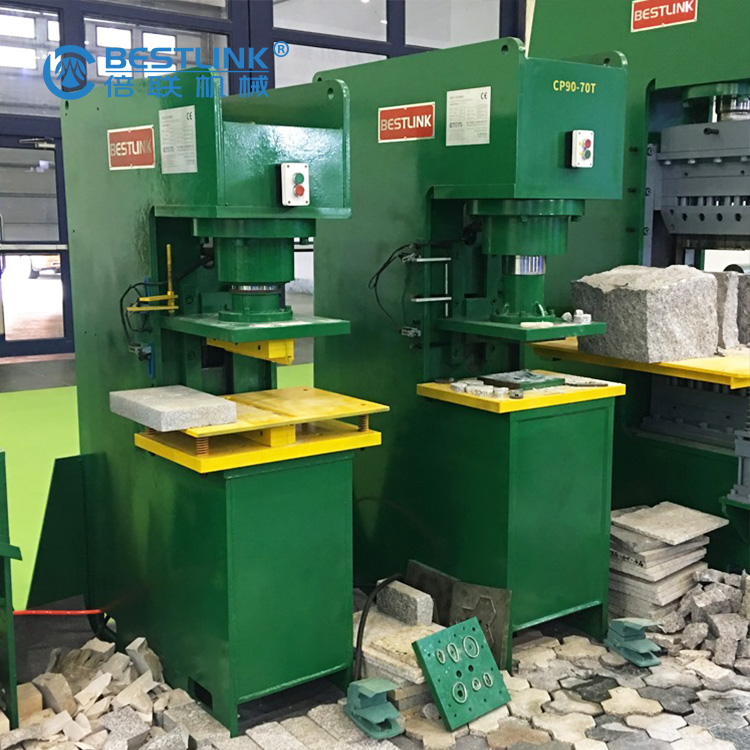

These kind of machine is specially designed for changing the leftovers of slabs or tiles into different shapes with different moulds by hydraulic system inside;The CP-90 machine have the output around 50m⊃2; ~100m⊃2; Per day, certainlly, if the operators have very goodexperience and skill, the yield will be much more, the machine have very compact structure, it is easily operated and maintained.
Model | CP90-20T-A | CP90-40T-A | CP90-20T-B | CP90-40T-B | CP90(40T automatic) |
Hydraulic pressure | 20Mpa | 20Mpa | 20Mpa | 20Mpa | 20Mpa |
Splitting power | 20T | 40T | 20T | 40T | 40T |
Electric motor power | 4kw | 7.5kw | 4kw | 7.5kw | 7.5kw |
Max.slab stamping size | 30cm×30cm×5cm | 30cm×30cm×8cm | 30cm×30cm×5cm | 30cm×30cm×8cm | 30cm×30cm×8cm |
Max splitting length | 30cm | 35cm | 30cm | 35cm | |
Max splitting height | 1-5cm | 5-8cm | 1-5cm | 5-8cm | 1-5cm |
Machine size | 70*86*113cm | 80*100*150cm | 80*100*150cm | 80*100*150cm | 80*100*150cm |
Weight | 420kg | 550kg | 500kg | 580kg | 650kg |
Functions | stamping,splitting | stamping,splitting | stamping,cutting,splitting | stamping,splitting,cutting | stamping |
