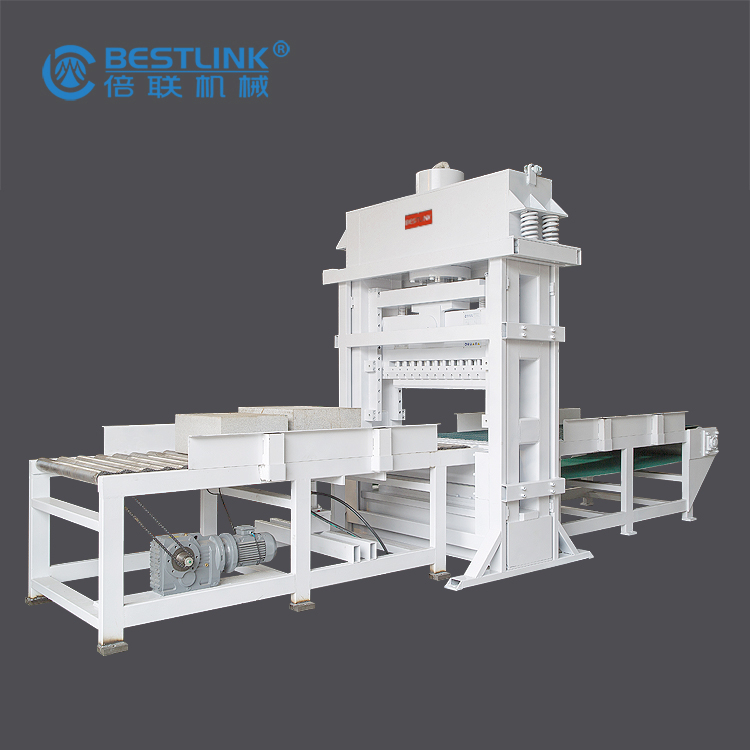

200ton Stone Splitting Machine with Floating Teeth
BESTLINK
Hydraulic Splitting Machine for Natural Stone
It's specially designed for splitting big blocks. Due to their big splitting power and long blade, these 3 models can easily split any big rock blocks into big and regular building stone kerb stone and wall stone
For large block splitting operations encountered in the stone industry, integrated conveyor systems and long blades and crushing power make splitting of large blocks an easy project. The well-know brand breaking technology, along with the absolute silence of the new pumps, completed by the high up/down motion speed of the piston ( up to 260 mm/sec. For PSM 320- 54 ton- type machines).
We provide several models for your various choice, like BRT20T, BRT40T, etc. Of course, we also can design a special model based on your detailed requirement.
| Model no. | BRT320-1200*800 | BRT160T-500*550 | BRT70-400*350 | BRT40T-240*320 | BRT20T-160*180 |
| splitting pressure | 320t | 160T | 70T | 40T | 20T |
| max. splitting width | 1200mm | 500mm | 400mm | 240mm | 160mm |
| max. splitting height | 800mm | 550mm | 350mm | 320mm | 180mm |
| adaption of upper /lower blade | 36*20mm | 30*15mm | 20*10mm | 15*10 | 10*7mm |
| rated power | 22KW | 15KW | 11KW | 11KW | 7.5KW |
| rated voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| electric current | 42.5A | 30A | 22.6A | 22.6A | 15A |
| main oil cylinder data | Φ400/Φ280-850 | Φ280/Φ200-600 | Φ200/Φ140-360 | Φ160/Φ110-340 | Φ110/Φ80-200 |
| oil advanced speed | 40mm/s | 76.6mm/s | 108mm/s | 167mm/s | 96mm/s |
| overall size (L*W*H)/mm | 2370*1500*3840 | 1970*1200*3300 | 1500*1200*2520 | 1260*1000*2300 | 1145*1000*2030 |
| weight | 8000KG | 5300KG | 3200KG | 2900KG | 2300KG |
